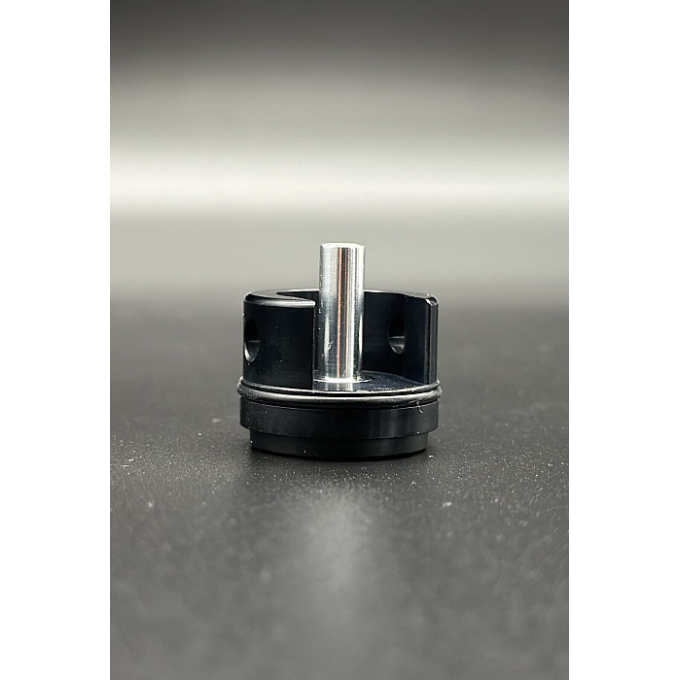

RetroArms CNC Aluminum Cylinder Head – Type A (Standard)
RetroArms CNC universal cylinder head Type A is a precisely machined cylinder head made of aircraft-grade EN AW 7075 aluminium designed for V2 and V3 gearboxes. The Type A version has a 15.8 mm nozzle guide length and is designed for nozzles 16 mm and longer. The durable impact pad made of cast polyurethane can handle even strong springs up to M210.
Another product variants
BlackOn stock
BlackOn stock
BlackOn stock
25+ years of proven equipment and accessories.
Accessories
143,36 € In StockRetroArms CNC Duralumin Gearbox V2 QSC (8mm)6392
RetroArms CNC upgrade gearbox V2 QSC for 8 mm bearings made from aircraft-grade EN AW 7075 T651 aluminium alloy offers exceptional strength, precise CNC machining and quick spring change with the QSC system. The reinforced construction increases service life even in high-performance and DSG / TSG builds. Compatible with the Tokyo Marui V2 AEG standard.
143,36 €Out of stock
141,67 € In StockRetroArms CNC Duralumin Gearbox V3 QSC (8mm)6393
RetroArms CNC upgrade gearbox V3 QSC for 8 mm bearings made from aircraft-grade EN AW 7075 T651 aluminium alloy offers exceptional strength, precise CNC machining and quick spring change with the QSC system. The reinforced construction increases service life even in high-performance and DSG / TSG builds. Compatible with the Tokyo Marui V3 AEG standard.
141,67 €In Stock
RetroArms CNC Universal Cylinder Head A Standard
The cylinder head is made by precision CNC turning and milling from aircraft-grade EN AW 7075 aluminium. The sealing O-ring ensures proper sealing between the cylinder head and cylinder. The impact pad is made of durable cast polyurethane, which according to the manufacturer has several times the service life of vulcanized natural rubber. The Type A version has a 15.8 mm nozzle guide length and is designed for nozzles from 16 mm.
Key Features
CNC Machined EN AW 7075 Aluminium
The cylinder head is made of aircraft-grade EN AW 7075 aluminium using precision CNC turning and milling.
Type A (Standard)
The nozzle guide has a length of 15.8 mm and is designed for use with nozzles 16 mm and longer.
Durable Impact Pad
The impact pad is made of cast polyurethane, which according to the manufacturer has several times the service life of vulcanized natural rubber.
Precise Sealing
The sealing O-ring ensures proper sealing between the cylinder head and cylinder.
Compatible with Standard and Silent Piston Heads
The cylinder head is suitable for standard flat and silent piston heads. It is not designed for NBU piston heads.
Compatibility
- Zinc and CNC V2 / V3 gearboxes
- Best compatibility is achieved with RetroArms CNC gearboxes
Technical Specifications
- Material: Aircraft-grade EN AW 7075 aluminium
- Manufacturing: CNC turning and milling
- Version: A (standard)
- Nozzle guide length: 15.8 mm
- Nozzle compatibility: 16 mm and longer
- Impact pad: Cast polyurethane
- Sealing: O-ring
- Piston head compatibility: Standard and silent (not NBU)
- Maximum spring: M210
Package Contents
- 1× CNC universal cylinder head (Type A, standard)
| Variants | A (standard) |
| Color | Black |
| Body/receiver material | Metal |
