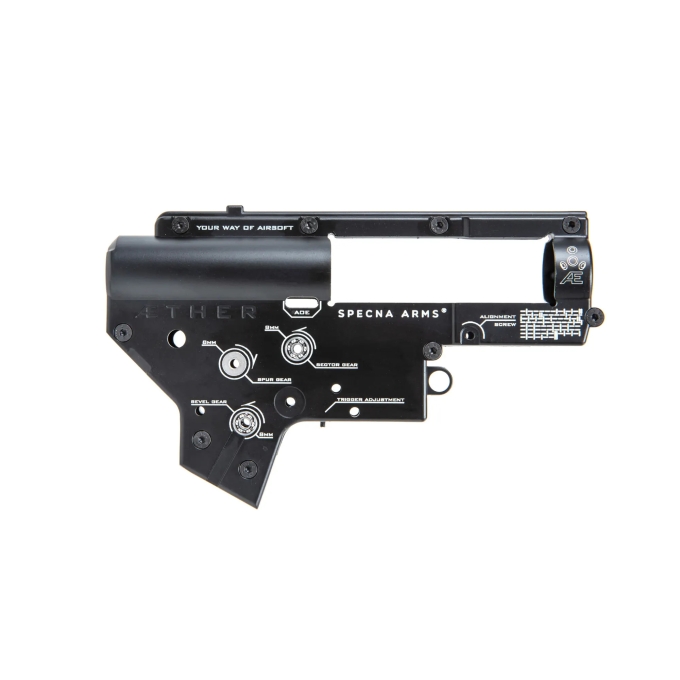

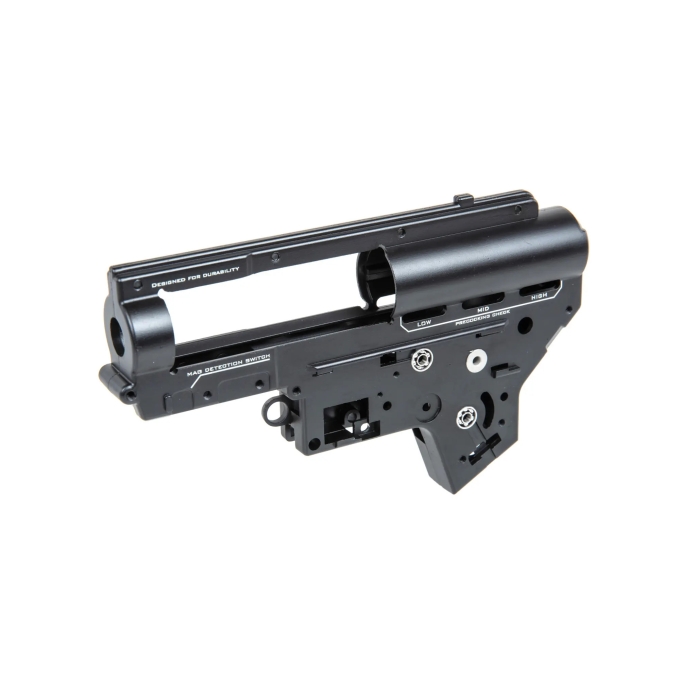

SA ÆTHER™ V2 Gearbox Shell with 8mm Bearings – Black

Specna Arms reinforced ÆTHER™ V2 gearbox shell

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.ÆTHER™ V2 gearbox shell from Specna Arms features a reinforced design developed for the premium PRIME™ AEG series and is now also used in other model series from the manufacturer. It is designed as a durable base for powerful, heavily stressed builds where a conventional V2 gearbox shell is not sufficient. The reinforced construction is designed for use with springs rated up to M135 and for long-term mechanical stress. One of the main advantages of ÆTHER™ is the carefully designed gear support system using 8mm J-Cage bearings. Ball bearings are used for the bevel and sector gears, where they support smooth gear operation, while the spur gear is supported by a bushing focused on higher mechanical durability. The result is a combination of both types of support according to the load placed on the individual gears. The shell design also takes precise assembly and tuning into account. An inspection window allows the relative position of the piston and sector gear to be checked when setting the AOE. The shell also offers trigger travel adjustment, centring holes for more precise positioning in the gun body and a reinforced front section with radiused corners to resist cracking. This makes it a suitable base not only for repairing an original ÆTHER™ gearbox, but also for building a more powerful compatible V2 AEG setup. ÆTHER™ uses a V2 QSC (ESA) design for quick spring changes. The spring guide is not included, so when building a complete gearbox, the original spring guide must be used or a replacement purchased separately.

Key features of the Specna Arms ÆTHER™ V2 gearbox shell

Reinforced ÆTHER™ V2 shell

The patented V2 gearbox design is engineered for high mechanical loads and powerful AEG builds. The shell is compatible with springs rated up to M135.

8mm J-Cage bearings

Ball bearings for the bevel and sector gears are complemented by a bushing for the spur gear. This design combines smooth operation with durable support for the most heavily stressed parts of the gear train.

AOE inspection window

The integrated window makes it easier to visually check AOE (Angle of Engagement), i.e. the relative position of the first piston tooth and the sector gear when they engage.

For the AR15 platform

The shell is based on the V2 design used in AR15-platform airsoft guns and forms the premium base of Specna Arms PRIME™ M4, MK18 and other models.

Designed for precise assembly

Centring holes, trigger travel adjustment and a reinforced front section make it easier to build and precisely tune a compatible V2 gearbox.

Specna Arms ÆTHER™ V2

Reinforced ÆTHER™ V2 shell with inspection window and 8mm J-Cage bearings.

Technical specifications

• Manufacturer: Specna Arms
• Model: ÆTHER™
• Type: Reinforced gearbox shell
• Gearbox version: V2 QSC
• Designed for: AEG
• Platform: M4 / AR15 and compatible AEGs with V2 gearbox
• Construction: Patented reinforced shell
• European patent: 015044865-0001
• Bearings: 8 mm J-Cage
• Bevel gear support: Ball bearing
• Spur gear support: Bushing
• Sector gear support: Ball bearing
• AOE inspection window: Yes
• Trigger travel adjustment: Yes
• Centring holes: Yes
• Declared durability: Up to M135 springs (inclusive)
• Colour: Black
• Weight: 330 g
• Spring guide included: No
• Mounting screws included: Yes

Package contents

• 1× Specna Arms reinforced ÆTHER™ V2 gearbox shell
• 1× set of installed 8mm J-Cage bearings
• 1× set of mounting screws

Frequently asked questions from our store

How does the ÆTHER™ shell differ from a conventional V2 gearbox?

ÆTHER™ is a reinforced patented shell designed for higher mechanical loads. It also features an AOE inspection window, centring holes, trigger travel adjustment and combined 8mm J-Cage bearings.

How strong a spring can be used in the ÆTHER™ shell?

The design is engineered for M135 springs. However, the durability of the complete build does not depend solely on the shell. When building a powerful gearbox, the gears, piston assembly, motor, AOE and other stressed components must also be correctly selected and tuned.

What bearings are used in the ÆTHER™ shell?

The shell uses 8mm J-Cage bearings. The bevel and sector gears are supported by ball bearings, while the spur gear uses a bushing for increased durability at this point in the gear train.

What is the inspection window in the gearbox for?

When assembling the gearbox, the window allows you to visually check the engagement between the sector gear and piston and the AOE setting. This allows the technician to check the position of the components directly without repeatedly having to completely disassemble the build.

Is the spring guide included?

No. The package includes the ÆTHER™ V2 shell with installed 8mm J-Cage bearings. The spring guide is not included and the original must be used or a replacement purchased separately to complete the gearbox.
