GUARDER Hi-Cap Magazine Winding Mechanism

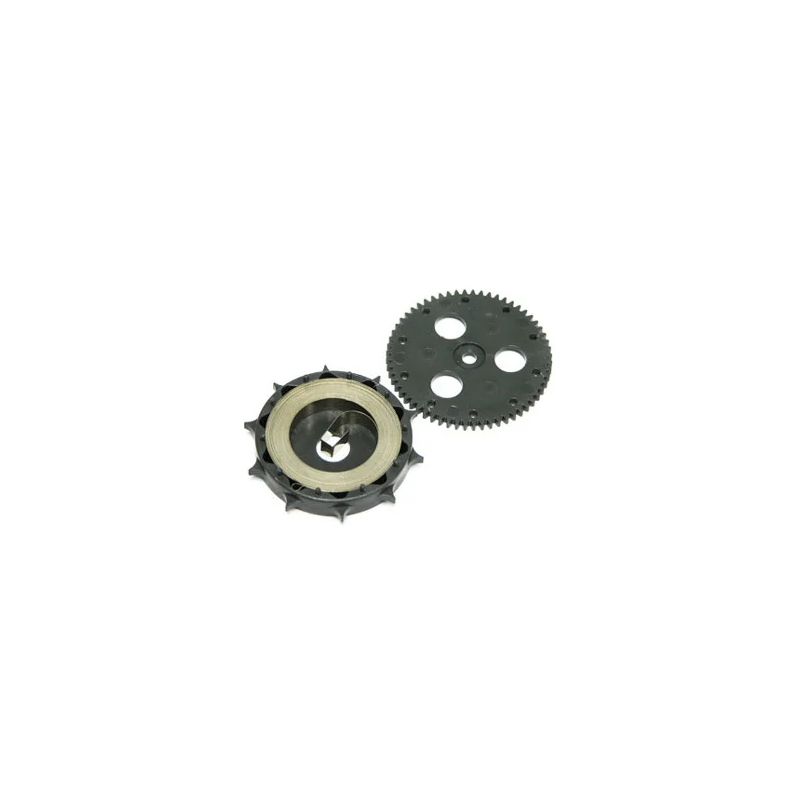

GUARDER winding wheel with spring for M4 / AK / G3 / Steyr Hi-Cap magazines is a replacement internal mechanism designed for repairing compatible Hi-Cap magazines. The combination of a steel spring and plastic parts provides the function of the winding mechanism, which generates the pressure required to feed BBs. The part weighs 18 g and is suitable for servicing a damaged magazine mechanism.
25+ years of proven equipment and accessories.
Accessories
20,26 € 33,83 € In Stock-40%TM magazine for M4/16, 300 BBs (Hi-Cap) - Black (no markings)EM10003
Tokyo Marui Hi-Cap Magazine for AEG AR15 (M4/16) with a capacity of 300 rounds brings reliability and performance in one. Designed with emphasis on precision engineering and reliable feeding, as customary with Marui. The magazine is suitable for all weapons of the TM standard type. Indulge in a substantial dose of quality, treat yourself to Tokyo Marui!
20,26 € 33,83 €In StockReduced price!
22,37 € 35,95 € In Stock-38%TM magazine for G36, 470 BBs (Hi-Cap) - BlackEM10041
Tokyo Marui Hi-Cap Magazine for AEG G36 with a capacity of 470 rounds brings reliability and performance in one. Designed with emphasis on precision engineering and reliable feeding, as customary with Marui. The magazine is suitable for all weapons of the TM standard type. Indulge in a substantial dose of quality, treat yourself to Tokyo Marui!
22,37 € 35,95 €In StockReduced price!
20,26 € 41,87 € In Stock-52%TM magazine for AK, 600 BBs (Hi-Cap) - BlackEM10014
Tokyo Marui Hi-Cap Magazine for AEG AK (AKM, AK47, AK74) with a capacity of 600 rounds brings reliability and performance in one. Designed with emphasis on precision engineering and reliable feeding, as customary with Marui. The magazine is suitable for all weapons of the TM standard type. Indulge in a substantial dose of quality, treat yourself to...
20,26 € 41,87 €In StockReduced price!
GUARDER Winding Wheel With Spring for Hi-Cap Magazines

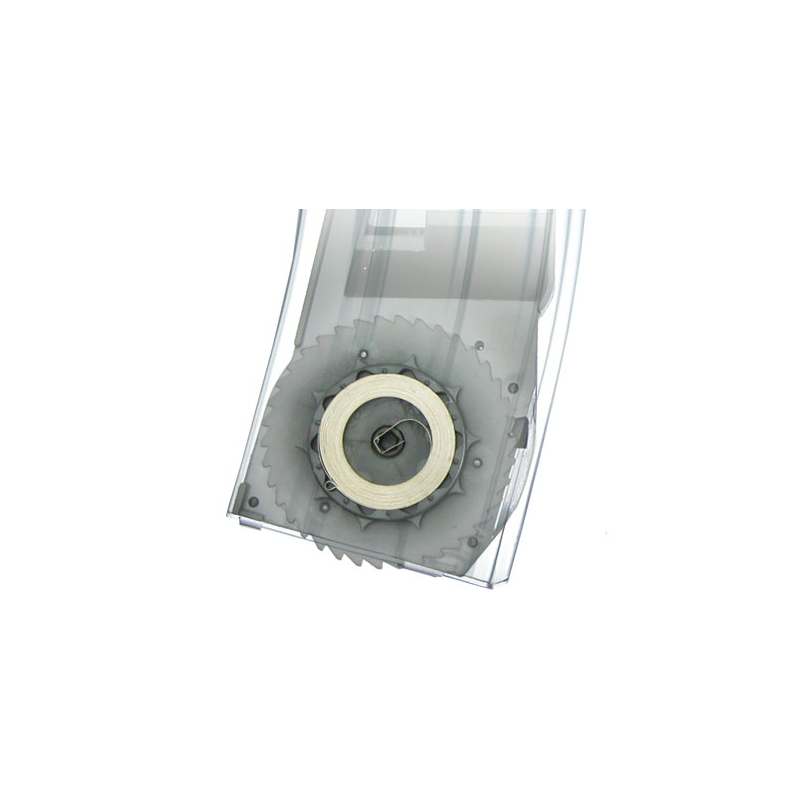

GUARDER Magazine Spring is a replacement internal mechanism for compatible winding, or Hi-Cap, airsoft magazines. When wound using the wheel, its purpose is to store energy in the spring and generate the pressure required to move BBs into the magazine feed channel. It is therefore a service part for situations where the original winding mechanism no longer holds tension, is mechanically damaged or can no longer reliably feed BBs. The construction combines steel and plastic, and the complete mechanism weighs 18 g. GUARDER lists it for Marui M4 / AK / G3 magazine series; it can also be used with structurally corresponding magazines for other platforms, such as Steyr. When replacing the mechanism, we recommend comparing the shape, dimensions and mounting of the original mechanism, as the internal construction of Hi-Cap magazines may vary between manufacturers and individual models.
Key Features
Internal Hi-Cap Magazine Mechanism
The replacement part is designed for the winding mechanism of a Hi-Cap magazine, which provides the pressure required to move BBs toward the magazine outlet.
Winding Wheel With Spring Mechanism
Turning the wheel tensions the internal spring, whose stored energy then powers the magazine feeding mechanism.
Steel and Plastic
The mechanism combines steel and plastic components according to the function of the individual parts of the magazine mechanism.
For Multiple Platforms
Designed primarily for compatible M4 / AK / G3 Hi-Cap magazines and structurally corresponding magazines for other platforms, such as Steyr.
For Repairing the Original Magazine
Replacing the internal mechanism allows you to repair a compatible magazine without replacing the entire magazine shell if the fault is located in the winding and feeding mechanism.
Technical Specifications
- Type: internal Hi-Cap magazine winding mechanism
- Material: steel / plastic
- Weight: 18 g
- Compatibility: Tokyo Marui standard AEG Hi-Cap magazines
- Product code: NB-30
Package Contents
- 1× GUARDER winding wheel with spring mechanism for Hi-Cap magazine
Frequently Asked Questions (FAQ)
What Is This Mechanism Used for in a Hi-Cap Magazine?
Once wound using the wheel, the spring stores energy that the mechanism uses to move BBs into the feed channel and toward the magazine outlet.
Is This Part Designed for Mid-Cap Magazines?
No. This mechanism is designed for winding, or Hi-Cap, magazines. Mid-Cap magazines use a different system with a long follower spring and do not have a winding wheel.
Does the Mechanism Fit Every Magazine?
Not automatically. The internal construction of magazines may vary depending on the manufacturer and specific model. Before replacement, we recommend comparing the shape, dimensions and mounting method of the original mechanism with the replacement part.
Can Replacing the Mechanism Help With Poor BB Feeding?
Yes, if the problem is caused by a worn spring or damaged winding mechanism. Feeding problems can also be caused by dirt, a damaged feed channel, unsuitable BBs or other magazine components, so it is advisable to identify the actual cause of the fault before replacement.
| Color | Black |
| Body/receiver material | Metal / ABS |
| High-cap / Mid-cap | High-cap |
