JeffTron AK MOSFET (Gearbox V3)

AK MOSFET by JeffTron

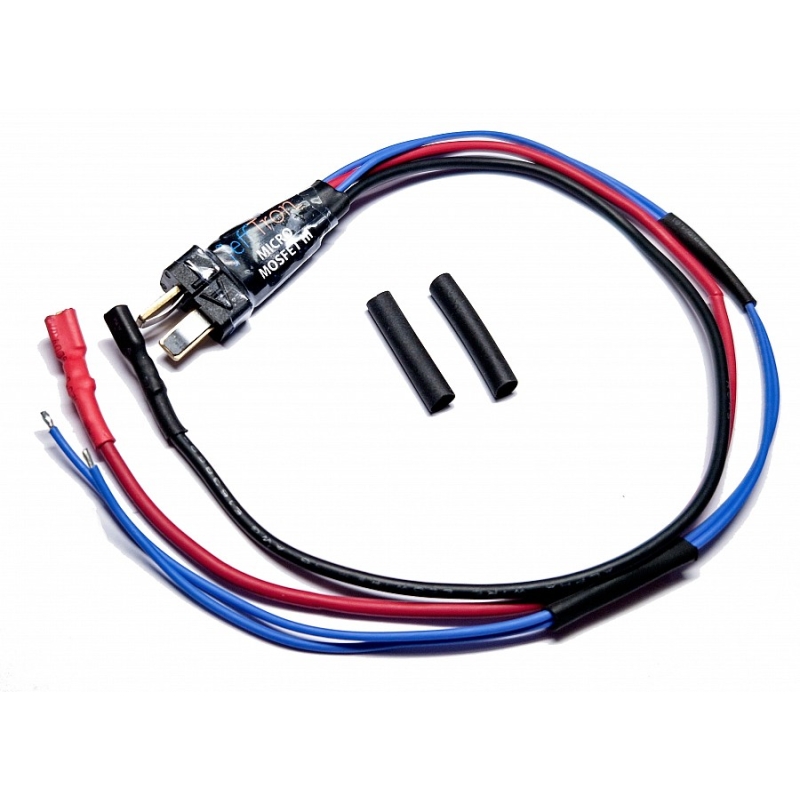

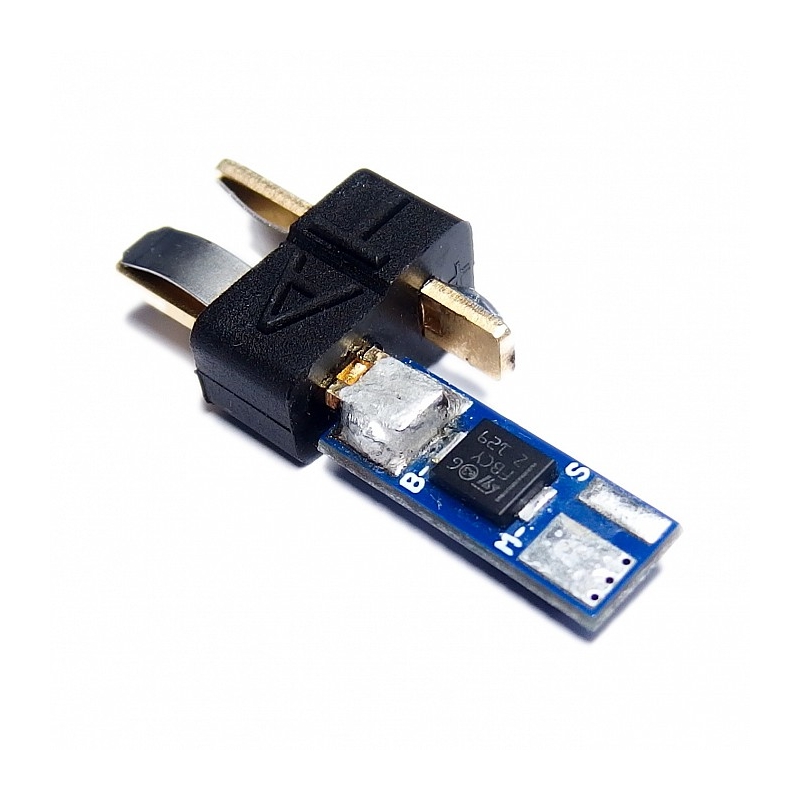

AK MOSFET by JeffTron is designed for AEG airsoft guns with V3 gearboxes (especially AK series) with battery placed above the gearbox under the dust cover. Thanks to the compact Micro MOSFET III integrated directly into the T-Dean connector, it offers maximum space savings and easy installation. The wiring is prepared for connection to the original trigger contacts, making installation quick and easy, but it does require soldering. The MOSFET is an electronic switch without active braking, replacing the traditional mechanical switching through trigger contacts. This eliminates contact arcing, prolonging their life while also improving circuit efficiency. The unit allows for a higher rate of fire and longer battery runtime compared to standard wiring. Especially suitable for experienced technicians and airsoft service professionals, as installation requires advanced knowledge of AEG platforms.

JeffTron MOSFET Series

• MOSFET II – External MOSFET for springs up to M210.
• Micro MOSFET III – Small external MOSFET for springs up to M170.
• AEP MOSFET – The smallest external MOSFET for AEP pistols and SMGs.
• MOSFET V2 – Internal V2 gearbox MOSFET for space-saving use with springs up to M170.
• MOSFET V3 – Internal V3 gearbox MOSFET for space-saving use with springs up to M170.
• AR MOSFET – Micro MOSFET III powered directly via T-Dean connector, saves space, for V2 trigger contacts and springs up to M170.
• AK MOSFET – Micro MOSFET III powered directly via T-Dean connector, saves space, for V3 trigger contacts and springs up to M170.

Key Features

• Increased rate of fire and battery life:
  Compared to original wiring.


• Supports springs up to M170:
  Handles 90A current on single shots and 35A during burst fire up to 30 seconds.


• Compatible with standard batteries:
  Supports up to 17 V, including LiPo and Ni-xx batteries.


• Trigger contact protection:
  Prevents arcing and prolongs lifespan.


• Moisture resistance:
  Electronics coated for waterproof protection.


• Minimal energy draw:
  Zero current draw in idle mode.

Technical Specifications

• Designed for: AK-47, AK-74, AKM, and similar models (V3 gearbox with wiring output under the dust cover)
• Wiring: Complete with thin PTFE insulation (1.5 mm² and 0.34 mm²)
• V3 Gearbox: Requires functioning cutoff lever, selector plate, anti-reversal latch, and other mechanical components

Package Contents

• AK MOSFET with wiring and T-Dean connector
• Installation manual

Warning

Installation must be performed by a qualified technician capable of soldering and disassembling an AEG. Do not use a transformer soldering iron. While the MOSFET is compatible with most standard V3 gearboxes, 100% compatibility cannot be guaranteed in every case.
