OLIGHT Osight SE 6 MOA Enclosed Red Dot Sight, RMSc Footprint – Black

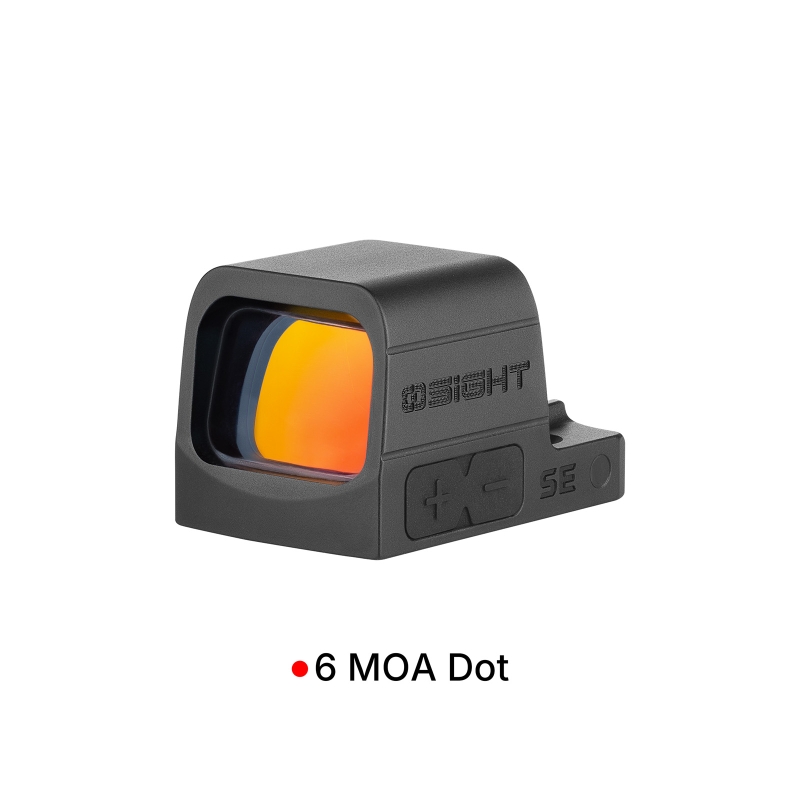

OLIGHT Osight SE RED 6 MOA enclosed red dot sight with RMSc footprint

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.OLIGHT Osight SE RED 6 MOA is a compact enclosed red dot sight (Enclosed Emitter) with an RMSc footprint mounting standard. It is designed primarily for sub-compact and slimline pistols and slides prepared for mounting optics with the corresponding interface. The enclosed design protects the emitter from water, dust and dirt that can interfere with the beam path in open red dot sights. This version uses a single 6 MOA red dot. The larger aiming point makes the dot easier to acquire and is more forgiving of less precise optic alignment during rapid aiming. Brightness can be adjusted across a total of 10 levels, including 8 for daytime use and 2 for NV. The wavelength of the red light is 650 nm. The Osight SE features an aspherical lens with a 21 × 14 mm window and a multi-layer coating. According to the manufacturer, it provides a distortion-free image, parallax-free operation and unlimited eye relief. Elevation and windage adjustment offer a range of ±35 MOA, and one click of the adjustment mechanism equals 1 MOA. Power is supplied by a CR1620 battery located in a side-loading compartment (battery not included). This means the red dot sight does not need to be removed or its mounting position changed when replacing the battery. The motion sensor automatically activates the red dot sight when movement is detected and switches it to sleep mode after 3 minutes of inactivity. It also features a memory function for the last selected mode and a low battery voltage warning. The body is CNC-machined from 7075-T6 aircraft-grade aluminium. The Osight SE measures just 40.4 × 25 × 24.7 mm and weighs 27.5 g, helping to maintain the compact dimensions of the entire setup. The construction offers IPX7 water resistance and an operating temperature range from -30 to 60 °C.

Key features of the OLIGHT Osight SE RED 6 MOA red dot sight

Technical specifications

• Manufacturer: OLIGHT
• Model: Osight SE RED 6 MOA
• Type: Enclosed red dot sight (Enclosed Emitter)
• Footprint: RMSc
• Magnification: 1×
• Reticle colour: Red
• Reticle type: 6 MOA Dot
• Wavelength: 650 nm

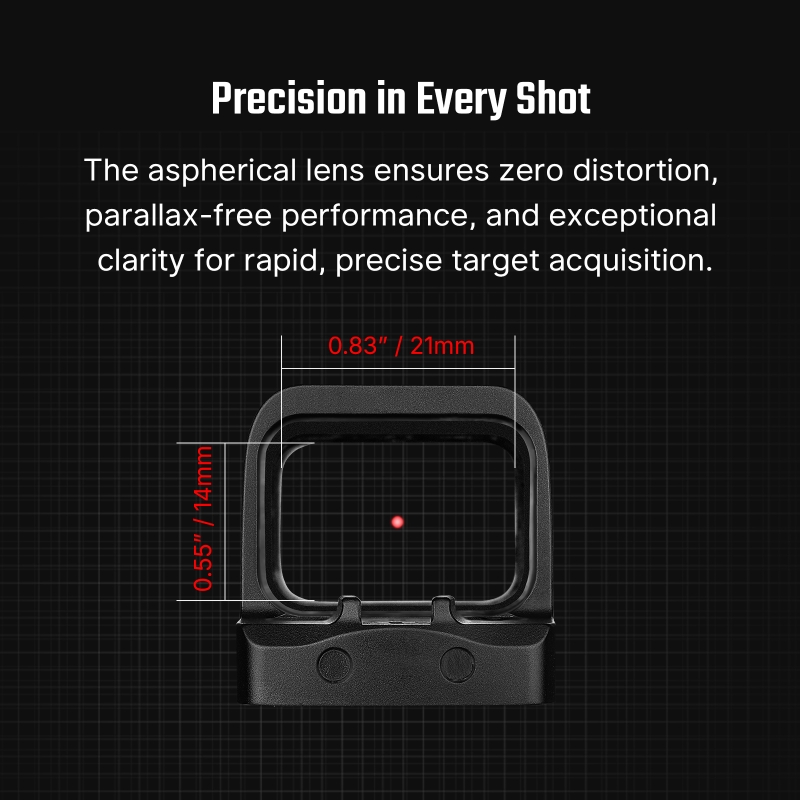

• Window size: 21 × 14 mm (0.83 × 0.55")
• Lens: Aspherical
• Multi-layer lens coating: Yes
• Brightness levels: 8 daytime + 2 NV
• Memory function: Yes
• Motion sensor: Yes
• Automatic sleep: After 3 minutes of inactivity
• Parallax Free: Yes
• Eye relief: Unlimited
• Adjustment value: 1 MOA / click
• Elevation and windage adjustment range: ±35 MOA
• Power supply: 1× CR1620 (not included)
• Battery replacement: Side-loading
• Maximum battery life: Up to 63,000 hours (Mode 3)
• Material: 7075-T6 aluminium
• Water resistance: IPX7
• Operating temperature: -30 to 60 °C
• Storage temperature: -30 to 70 °C
• Dimensions: 40.4 × 25 × 24.7 mm
• Weight: 27.5 g
• M3 tightening torque: 15 in-lbs per screw
• M4 tightening torque: 17 in-lbs per screw
• 6-32 tightening torque: 17 in-lbs per screw
• 6-40 tightening torque: 17 in-lbs per screw

ANAREUS tip: When mounting, always select the correct screws for the specific slide or mounting plate and observe the prescribed tightening torque. The RMSc footprint itself does not automatically mean direct compatibility with every pistol labelled Optics Ready; the specific mounting interface of the slide is what matters.

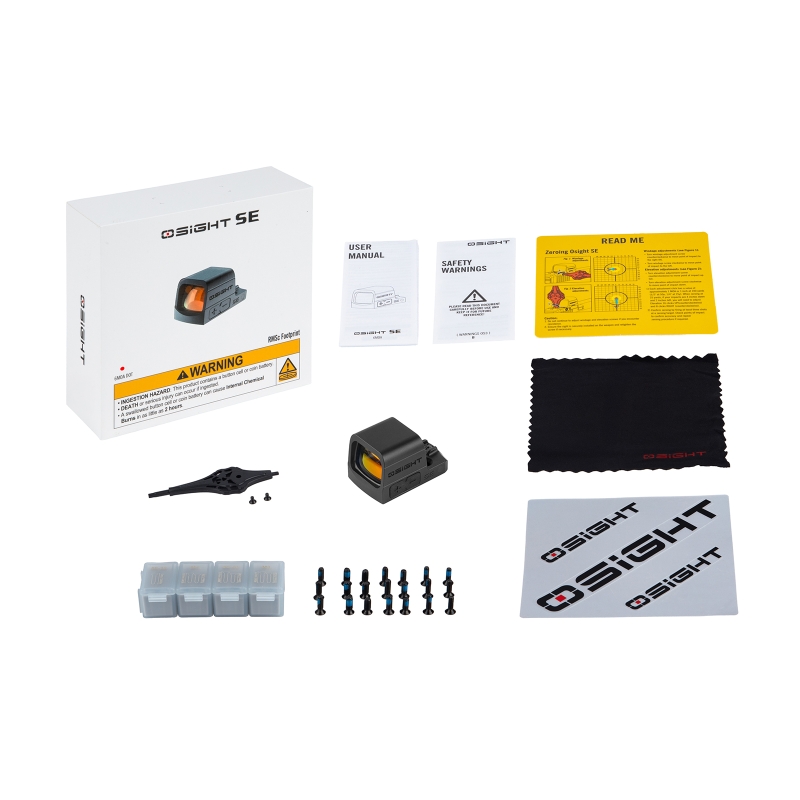

Package contents

• 1× OLIGHT Osight SE RED 6 MOA
• 1× adjustment tool
• 1× READ ME card
• 1× Osight SE screw set
• 2× spare battery compartment screws
• 1× cleaning cloth
• 1× safety notice
• 1× user manual
• 1× Osight sticker

Frequently asked questions from our store

What reticle does the OLIGHT Osight SE RED 6 MOA use?

This version uses a single 6 MOA red dot. It is therefore not a Multi-Reticle version with switching between a dot and circle. The larger 6 MOA dot is designed primarily for fast acquisition of the aiming point.

What footprint does the Osight SE RED 6 MOA use?

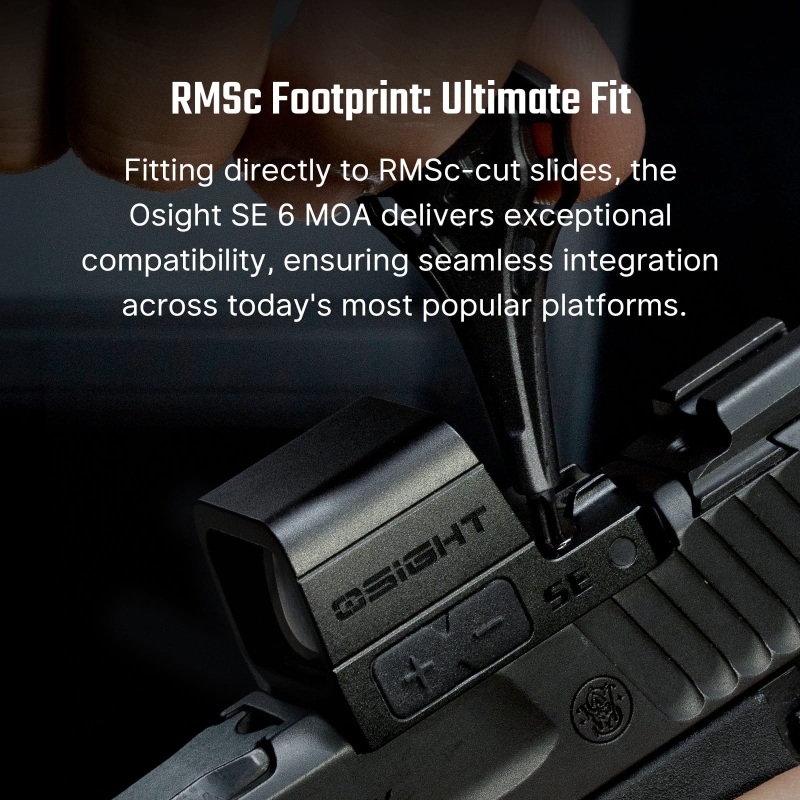

The red dot sight uses an RMSc footprint designed for compact optics. The red dot sight can be installed directly on a slide with a corresponding RMSc interface, while other mounting systems may require a suitable adapter plate.

Do I need to remove the red dot sight when replacing the battery?

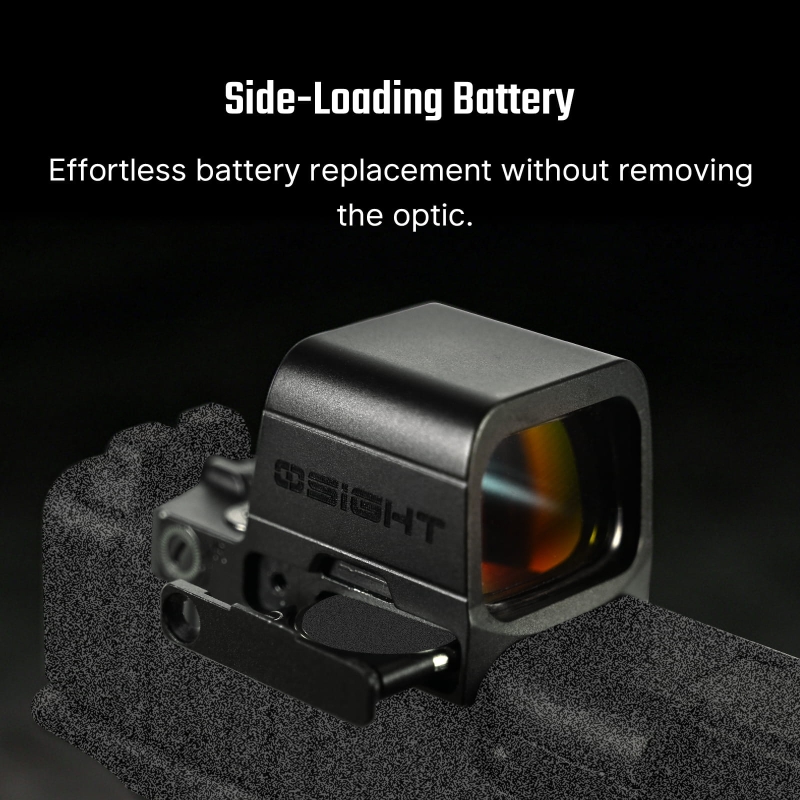

No. The CR1620 battery is located in a side-loading compartment. Replacing it therefore does not require removal of the red dot sight and does not change its mounting position.

How does the motion sensor work?

The motion sensor activates the red dot sight when movement is detected. After 3 minutes of inactivity, the optic enters sleep mode and reactivates when movement is detected again, helping to conserve battery power.

How do I know when the battery is nearly depleted?

The red dot sight features a low-voltage indicator. If the battery voltage drops below 2.2 V, the dot flashes rapidly three times and the warning then repeats at one-minute intervals. The CR1620 battery should then be replaced.
