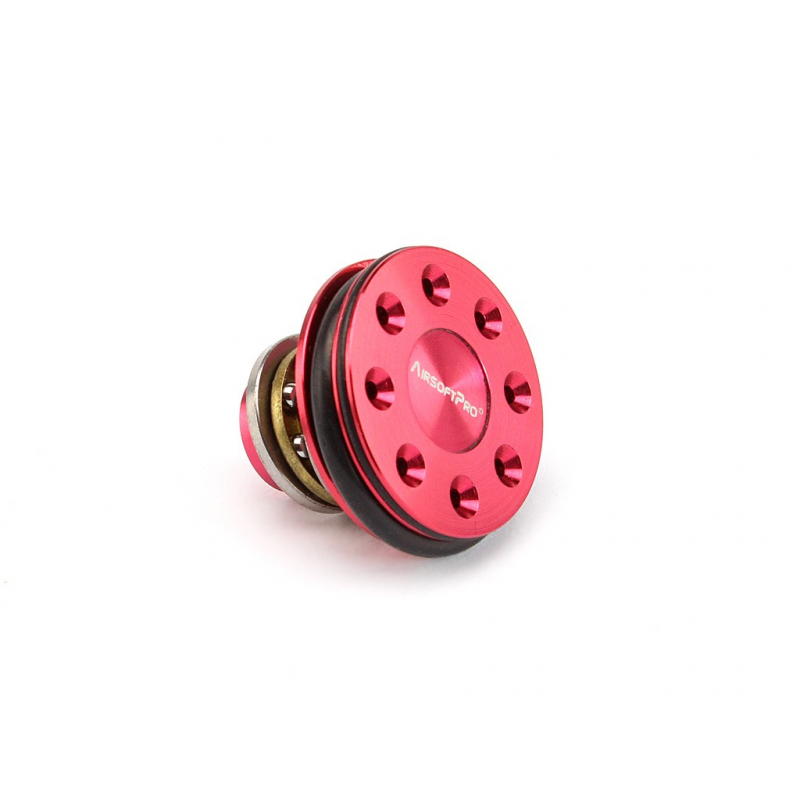

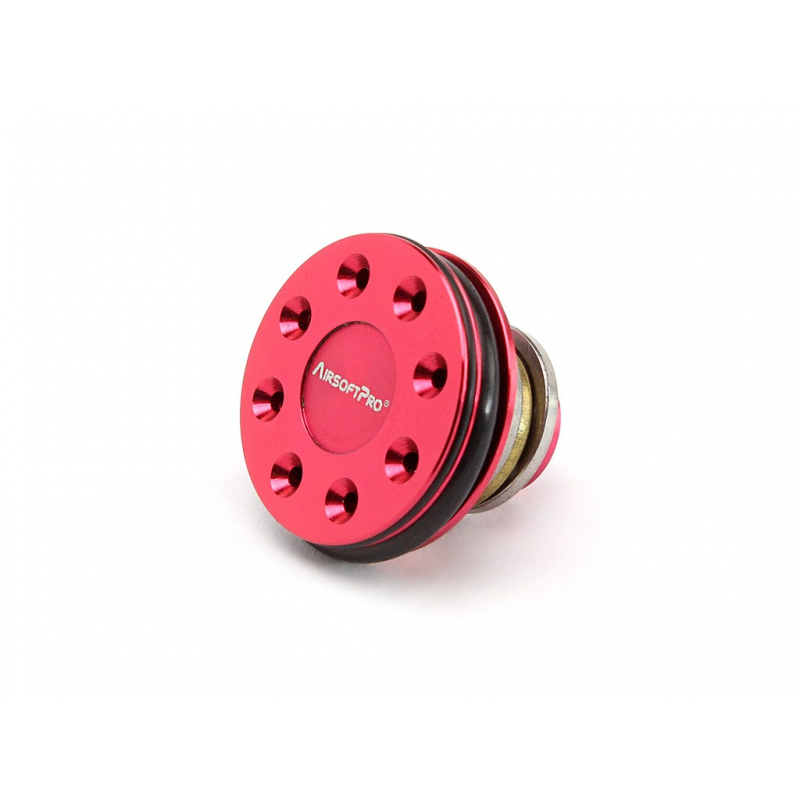

AirsoftPro CNC Aluminum Flat Piston Head with Bearing
AirsoftPro CNC aluminum flat piston head with bearing is a lightweight upgrade piston head for AEG airsoft guns, combining a durable aluminum body, an integrated ball bearing, and dual O-rings for improved air seal and more precise piston guidance inside the cylinder. Thanks to its low weight, it contributes to smoother compression system operation and is suitable for builds using springs (M190).
Another product variants
BlackOut stock
For more than 25 years, we know what you like about airsoft.
Accessories
3,76 € 6,72 € In Stock-44%AirsoftPro CNC Aluminum Nozzle with Double Seal – RedASPRO337
AirsoftPro aluminum nozzle with double sealing is a durable CNC upgrade nozzle for AEG electric airsoft guns designed to improve the air seal and reduce unwanted air loss during firing, helping to increase performance. Thanks to its dual internal O-ring sealing, precision CNC machining from 6061-T6 aluminum alloy, and polished finish, it provides a...
3,76 € 6,72 €In StockReduced price!
8,42 € In StockAirsoftPro AEG Aluminum Ported Cylinder (200–400 mm)ASPRO395
AirsoftPro AEG aluminum ported cylinder is an upgrade part for AEG airsoft guns with an inner barrel length of 200 to 400 mm. It is made from an aluminum alloy with an anodized finish that provides low weight, good wear resistance, and smooth piston movement. Thanks to the ventilation ports, it delivers the correct air volume for guns with short to...
8,42 €Out of stock
4,02 € In StockAirsoftPro Set of Nylon Washers for AOE Correction (5 pcs)ASPRO414
AirsoftPro nylon AOE correction spacer set for piston (5 pcs) is designed for correct AOE adjustment, ensuring the first sector gear tooth engages the piston at the proper angle. Correct AOE setup helps reduce stress on both the piston and gears, extending the service life of the internal components in an electric airsoft gun. The washers are installed...
4,02 €In Stock
AirsoftPro CNC Aluminum Piston Head with Bearing
The piston head is machined from 6061-T6 aircraft-grade aluminum, offering an excellent balance of low weight and high mechanical strength. During firing, compressed air is directed through 8 ventilation ports beneath the piston head. The primary O-ring expands under pressure, improving the air seal inside the compression system. The secondary O-ring centers the piston head inside the cylinder, helping guide the piston and reducing cylinder wall wear. The integrated ball bearing allows the spring to rotate freely during compression, reducing resistance during cycling and contributing to smoother gearbox operation. Weighing only 11.9 g, the piston head is suitable for both high-power and high-speed builds using springs up to M190. Although a locking washer is included, we recommend applying threadlocker to the screw to prevent the piston head from loosening. This is a common mistake among inexperienced technicians and can cause severe damage to the cylinder and other gearbox components.
Key Features
6061-T6 Aircraft-Grade Aluminum
Low weight and excellent durability help improve cycling speed while reducing stress on gearbox components.
Improved Air Seal
The 8 ventilation ports ensure proper expansion of the primary O-ring for a more efficient air seal.
Precise Piston Guidance
The secondary O-ring centers the piston head inside the cylinder and helps reduce wear on the cylinder walls.
Ball Bearing
Allows the spring to rotate freely during compression, reducing resistance and contributing to smoother gearbox operation.
Suitable for Springs up to M190
Designed for both standard and high-performance AEG builds using springs up to M190.
Technical Specifications
- Type: Flat piston head
- Material: 6061-T6 aluminum
- Bearing: Yes, ball bearing
- Weight: 11.9 g
- Recommended Springs: Up to M190
- Designed For: AEG gearbox (Tokyo Marui standard)

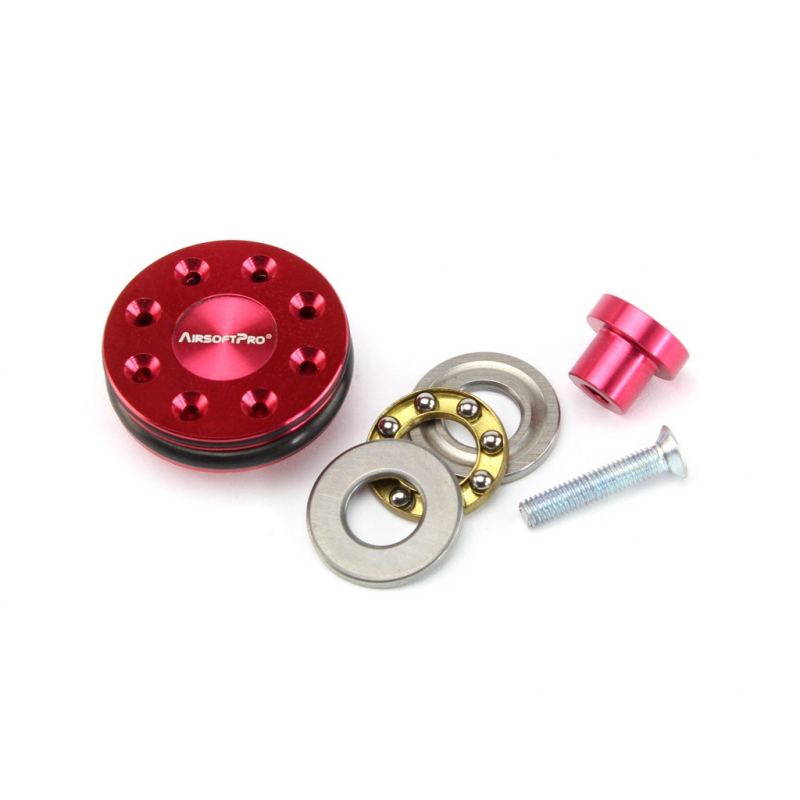

Package Contents
- AirsoftPro CNC aluminum flat piston head
- Ball bearing
- Mounting screw
- Special locking washer
| Color | Red |
| Piston head | Metal |
