RetroArms CNC Hop-up Unit M4 / AR15 PRO − Black

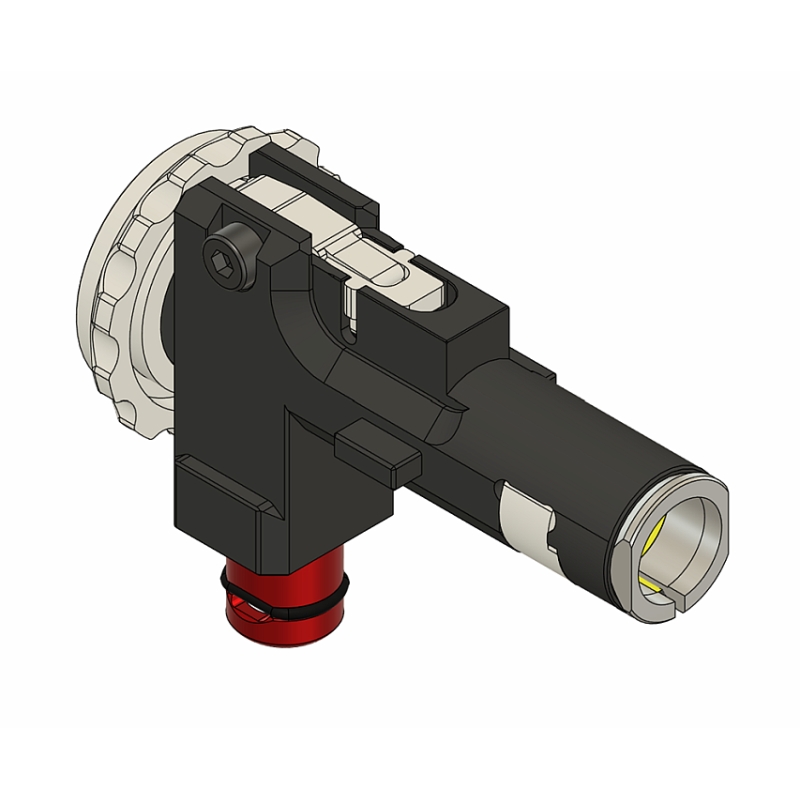

RetroArms CNC M4 / AR15 PRO Hop-Up Chamber

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are tied to the anareus.cz domain.RetroArms CNC M4 / AR15 PRO hop-up chamber is designed for M4 / AR15 AEG airsoft guns built to the Tokyo Marui standard, including M4, MK18, M16 and other compatible designs. The body is precisely CNC-machined from EN AW 7075 aircraft-grade aluminium. The PRO version is based on the BASIC chamber, with its main difference being an adjustable magazine well height from 0–1 mm in 0.2 mm increments using stainless steel shims. This adjustment helps solve situations where the magazine does not sit at the correct height relative to the chamber and the gun experiences BB feeding issues. Once the correct position has been found, the manufacturer recommends lightly securing the magazine well thread with paint or lacquer. An inner barrel with an outer diameter of 8.4–8.5 mm is secured by a collet nut, which clamps around the barrel when tightened and helps prevent unwanted movement. The feed channel is fitted with an O-ring that helps prevent BBs from falling out when the magazine is removed. The chamber is compatible with most common hop-up buckings. Within the RetroArms range, the PRO sits between the BASIC and ULTRA models: compared with BASIC it adds magazine well height adjustment, while longitudinal adjustment of the chamber position relative to the gearbox is a feature of the higher ULTRA version, not this PRO version. Parts from different manufacturers may have varying tolerances, so the final setup must always be properly tuned.

Key Features

Technical Specifications

• Model: PRO
• Type: CNC hop-up chamber for AEG
• Platform: M4 / AR15
• Standard: Tokyo Marui AEG
• Material: EN AW 7075
• Manufacturing: CNC machining
• Magazine Well Height Adjustment: 0–1 mm
• Adjustment Increment: 0.2 mm
• Inner Barrel Mounting: Collet nut
• Compatible Barrel Outer Diameter: 8.4–8.5 mm
• Feed Channel: With O-ring to help prevent BBs from falling out
• Colour: Black

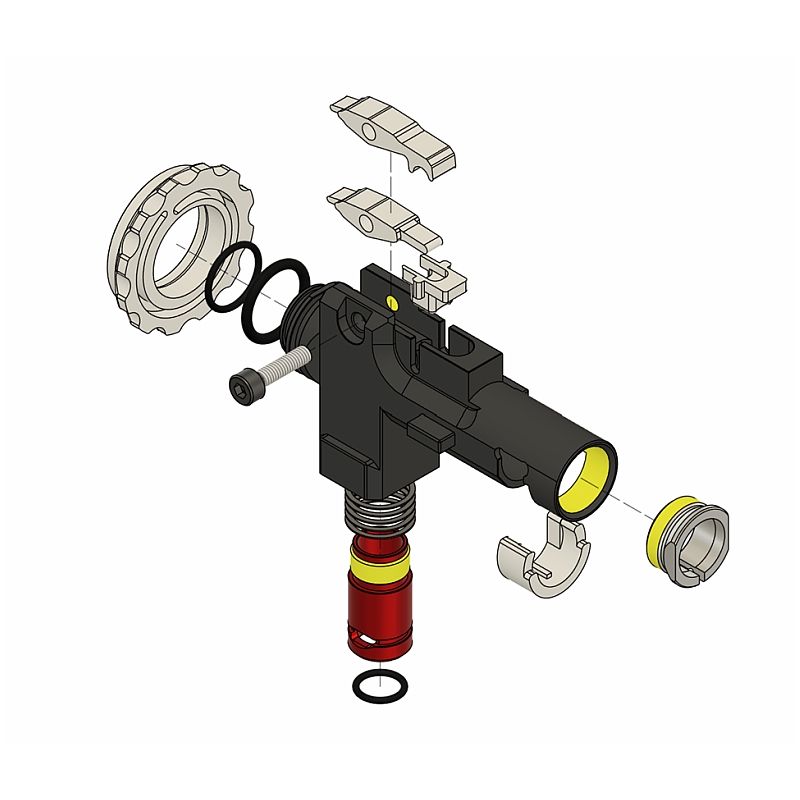

Package Contents

• RetroArms CNC M4 / AR15 PRO hop-up chamber
• Collet nut
• Set of stainless steel shims for magazine well height adjustment

Frequently Asked Questions (FAQ)

What Is the Difference Between the RetroArms BASIC and PRO Chambers?

Compared with BASIC, the PRO version adds adjustable magazine well height from 0–1 mm in 0.2 mm increments. This is particularly useful when solving feeding issues caused by a specific magazine sitting at the wrong height relative to the chamber.

Can the PRO Version Also Adjust the Distance Between the Chamber and Gearbox?

No. Longitudinal adjustment of the chamber position relative to the gearbox is available only on the RetroArms ULTRA model. The PRO version allows adjustment of the magazine well height.

What Is the Collet Nut Used For?

The collet nut is used for securely mounting and centring the inner barrel in the hop-up chamber. When tightened, it clamps around the barrel and reduces unwanted movement. Compatible inner barrels have an outer diameter of 8.4–8.5 mm.

When Should the Magazine Well Height Be Adjusted?

Adjustment is useful when a specific magazine does not sit correctly against the chamber feed channel and the gun does not feed reliably. The height is fine-tuned with stainless steel shims in 0.2 mm increments. There is no need to change it if the setup already feeds without problems.
