RetroArms CNC Hop-up Unit M4 / AR15 BASIC – Black

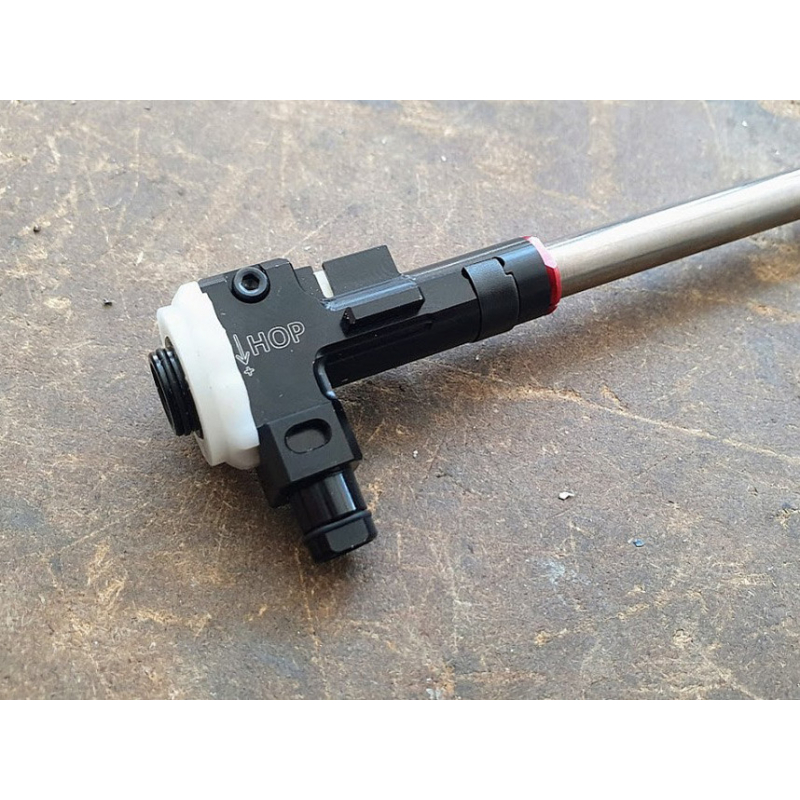

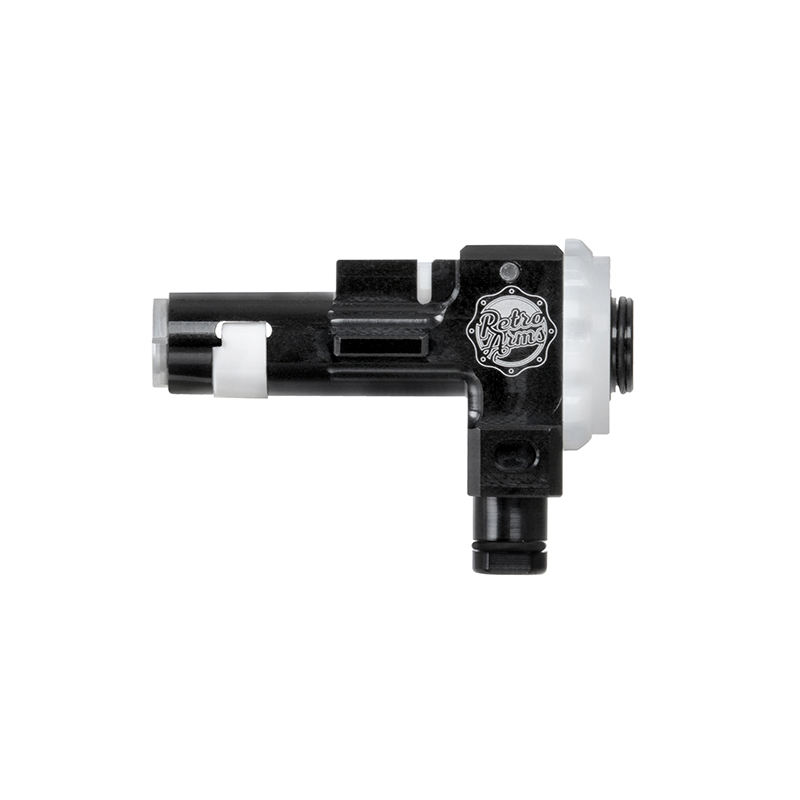

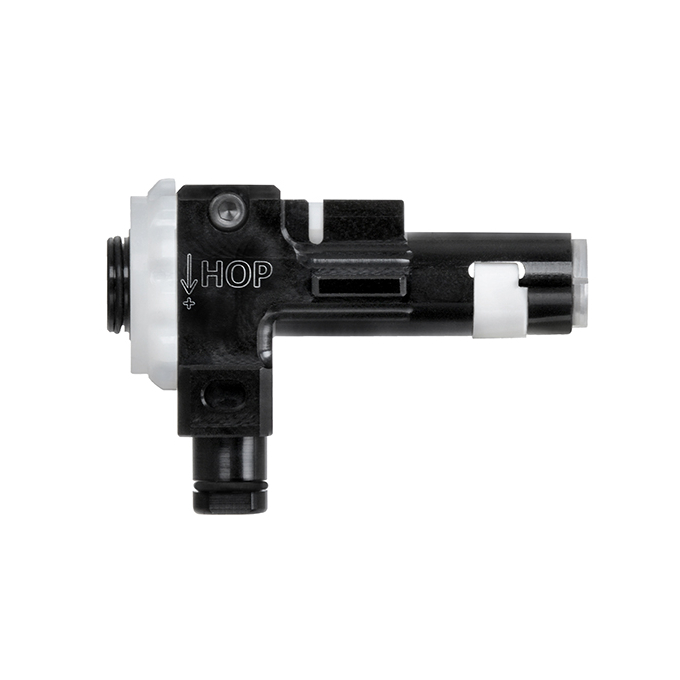

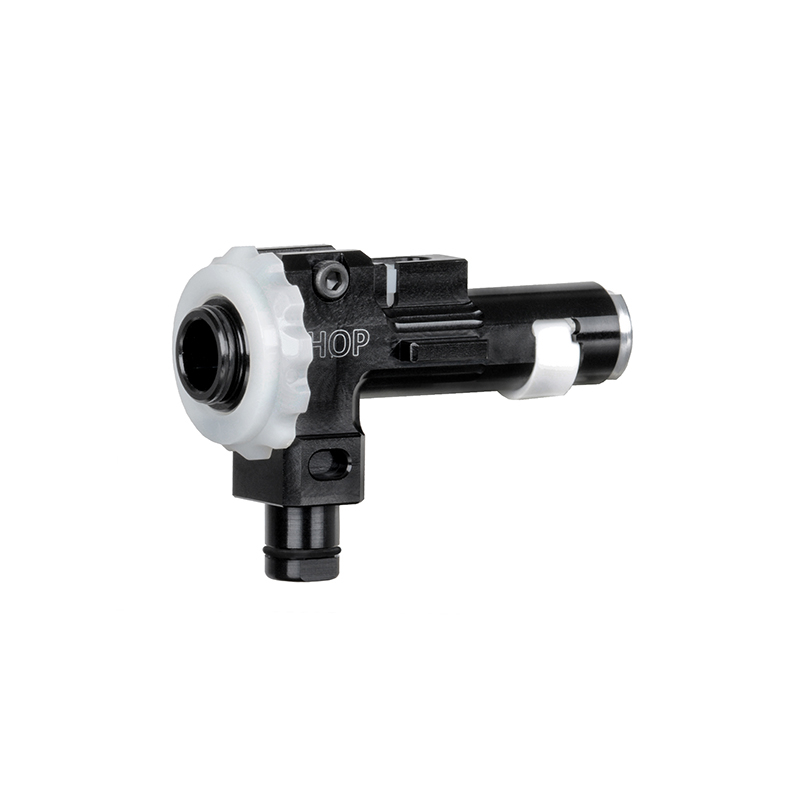

RetroArms CNC hop-up unit M4 / AR15 BASIC in black is designed for AR15-type AEG airsoft guns, such as the M4, MK18, M16 or SR-25. The unit body is made of aircraft-grade aluminium alloy using precise CNC machining. The collet nut ensures precise centering of the inner barrel, while the O-ring at the unit entrance prevents BBs from falling out during reloading.
Another product variants
BlackOn stock
25+ years of proven equipment and accessories.
Accessories
29,60 € In StockML Precision Inner Barrel for AEG, 6.02mm - 370 mmMPLF005
Precision Inner Barrel for AEG by Maple Leaf with a diameter of 6.02 mm. Length of 370 mm (M4, MK18 BLOCK 2, HK416D, SCAR-H, M249, MK46 and other models). Increases performance, range and accuracy. Compatible with AEG guns of TM (Tokyo Marui) standard. Barrel cutouts for both AEG and GBB / VSR hop-up chambers. AEG variant with bridge.
29,60 €In Stock
12,26 € In Stock4UANTUM Friction Hop-Up Rubber for AEG4UAD001
High-quality 4UANTUM Friction hop-up bucking by 4UAD for AEG / HPA rifles. Redesigned nub for perfect range and accuracy. Capable of hop-up for heavy sniper BBs up to 0.48g. Traditional single-point nub with minimal room for BB misalignment. Accuracy, range, and precision, that’s what it’s all about!
12,26 €In Stock
RetroArms CNC Hop-up Unit M4 / AR15 BASIC
The CNC hop-up unit M4 / AR15 BASIC is designed for AEG replicas using the Tokyo Marui standard. The precisely machined body made of EN AW 7075 aluminium alloy provides a solid base for the hop-up system. The collet nut automatically centers the inner barrel and helps prevent it from moving during firing. The unit is compatible with most common hop-up buckings and inner barrels with an outer diameter of 8.4–8.5 mm. The BASIC version is designed for simple installation without the need to adjust the unit neck length or its longitudinal position relative to the mechabox.
Key Features
EN AW 7075 Aluminium Alloy
The unit body is made of aircraft-grade EN AW 7075 aluminium alloy using precise CNC machining, providing accurate manufacturing and a solid construction.
Collet Nut for Barrel Centering
The collet nut automatically centers the inner barrel and helps keep it in the correct position during firing. It is designed for barrels with an outer diameter of 8.4–8.5 mm.
O-Ring at the Unit Entrance
The O-ring at the feeding point prevents BBs from falling out of the unit when removing the magazine or reloading the gun.
For R-Hop and Standard Buckings
The unit is designed for both R-hop and standard hop-up buckings and is compatible with most commonly used variants.
Simple Installation
The BASIC version does not require lengthy adjustment of the unit neck length or longitudinal position relative to the mechabox. It is therefore suitable for players who want a precise CNC unit without complicated tuning.
Compatibility
- Platform: AEG AR15 / M4, MK18, M16, SR-25 and other compatible models
- Standard: Tokyo Marui AEG
- Inner barrels: 8.4–8.5 mm outer diameter
- Hop-up buckings: Most common buckings, R-hop
Technical Specifications
- Material: Aircraft-grade EN AW 7075 aluminium alloy
- Manufacturing: CNC machining
- Unit Type: AEG for AR15 / M4
- Version: BASIC
- Color: Black
- Unit Entrance: With O-ring
- Barrel Retention: Collet nut
- Barrel Compatibility: 8.4–8.5 mm
- Standard: Tokyo Marui AEG

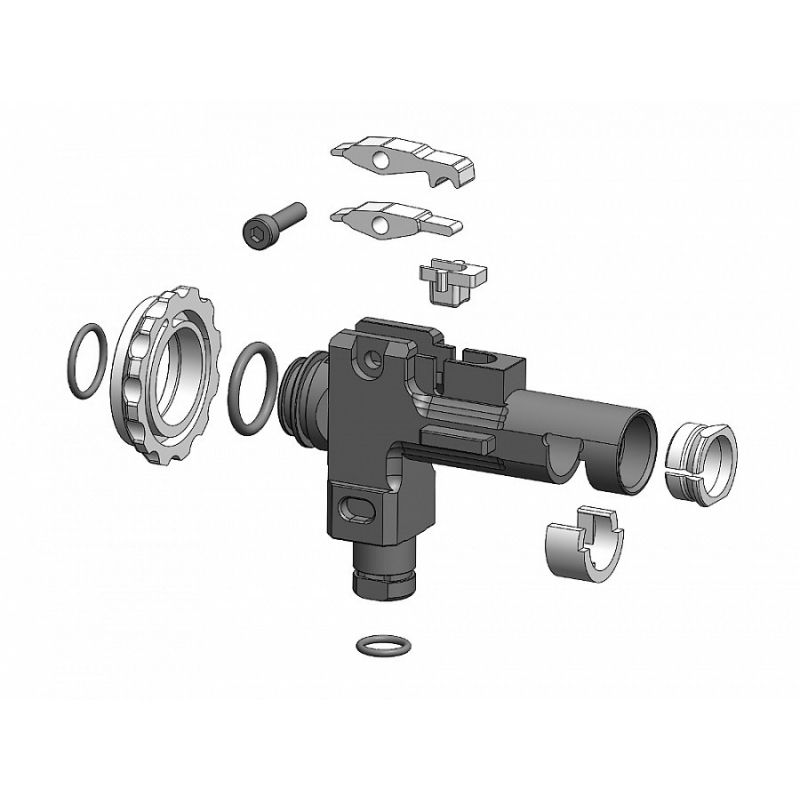

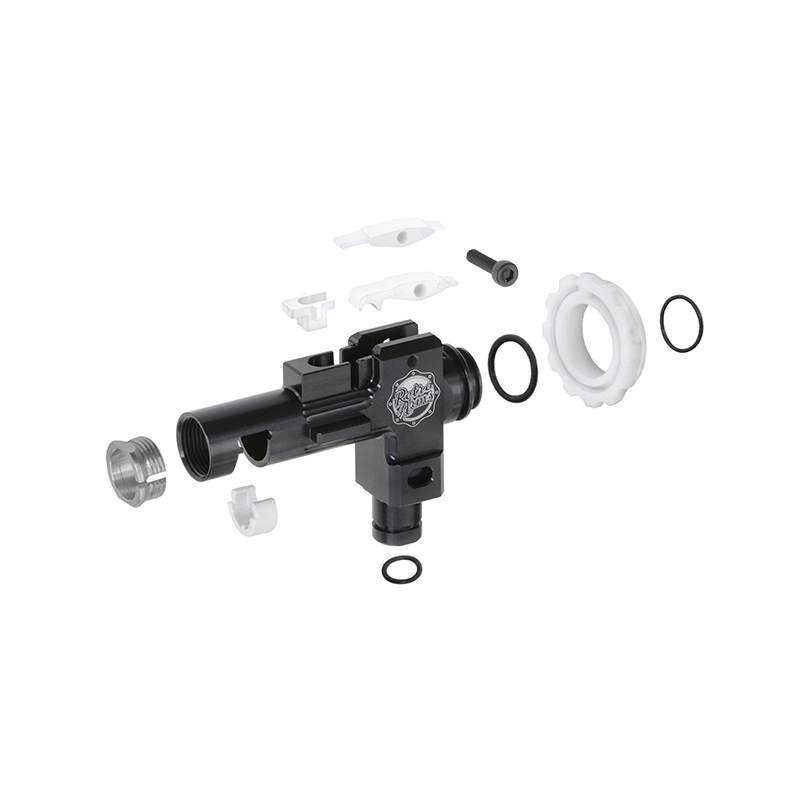

Package Contents
- 1× CNC hop-up unit AR15 BASIC
- 1× collet nut
| Variants | BASIC |
| Color | Black |
| Hop-Up chamber material | Metal |
