AirsoftParts DURAL 2013 NBU Piston Head
AirsoftParts DURAL 2013 NBU piston head is a CNC-machined piston head made from EN AW 6012 T6 duralumin for Bore Up air seal systems. The enlarged NBU version works exclusively with the corresponding NBU cylinder. It features 9 holes for pressure-assisted sealing, a guide O-ring, an axial ball bearing and a lightweight design weighing 11.4 g.
Another product variants
On stock
25+ years of proven equipment and accessories.
Accessories
1,23 € In StockAirsoftParts CLASSIC NBU Cylinder Head Spare O-ring (2 pcs)ASPARTS006
AirsoftParts replacement seals for the CLASSIC NBU cylinder head (2 pcs) are a service set of O-rings designed to restore proper sealing of the Bore Up air seal system. Regular replacement of worn seals helps reduce unwanted air leakage. The manufacturer recommends replacement approximately every 10,000 BBs fired or once a year.
1,23 €In Stock
16,87 € In StockAirsoftParts Silent Cylinder Head NBUASPARTS016
AirsoftParts NBU silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for Bore Up air seal systems in V2 and V3 gearboxes. The integrated sealing collar with a large 70 ShA impact pad helps seal the assembly and cushion piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts NBU Ribbed Cylinder – Full (400+ mm)ASPARTS022
AirsoftParts NBU full cylinder is a polished stainless steel upgrade part for NBU / Bore Up air seal systems in AEGs with long inner barrels from 400 mm. The enlarged 24.7 mm inner diameter provides a higher air volume than a standard cylinder and requires an NBU piston head and NBU cylinder head. The smooth polished surface helps reduce seal friction.
16,87 €In Stock
11,21 € In Stock4UANTUM Universal Lubrication Grease Pen SMOOTH - Red4UAD003
4UANTUM SMOOTH universal lubrication pen from 4UAD with red lubricant. Specially developed for AEG, GBB, and HPA airsoft weapons. Suitable for plastic and rubber parts without risk of material degradation. Rotating applicator for easy application and convenient portability. Keep it smooth, keep it shooting – don't let your gears run dry!
11,21 €In Stock- SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts DURAL 2013 NBU Piston Head for Bore Up Air Seal Systems

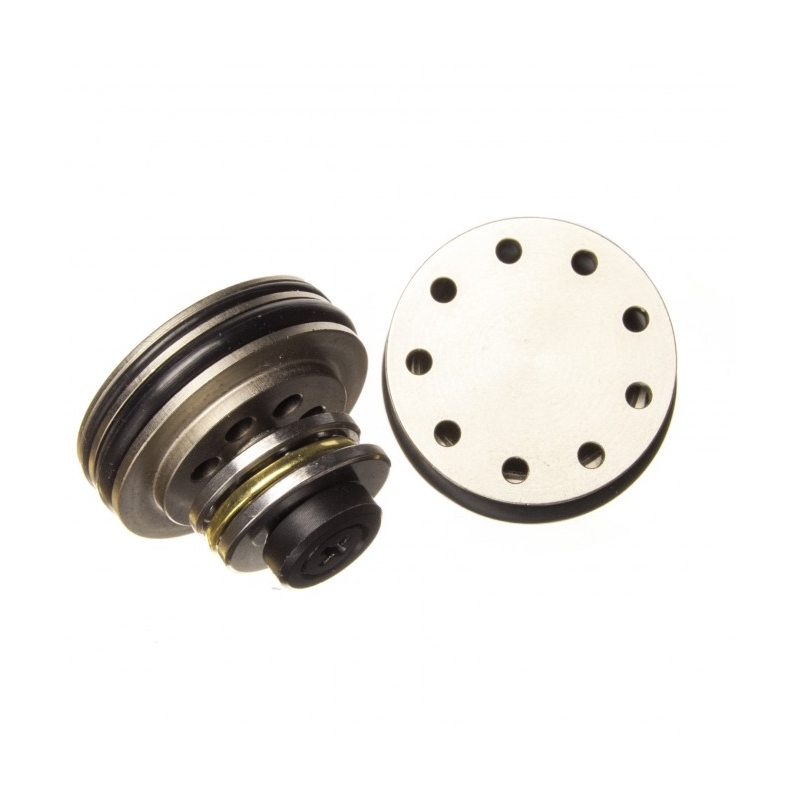

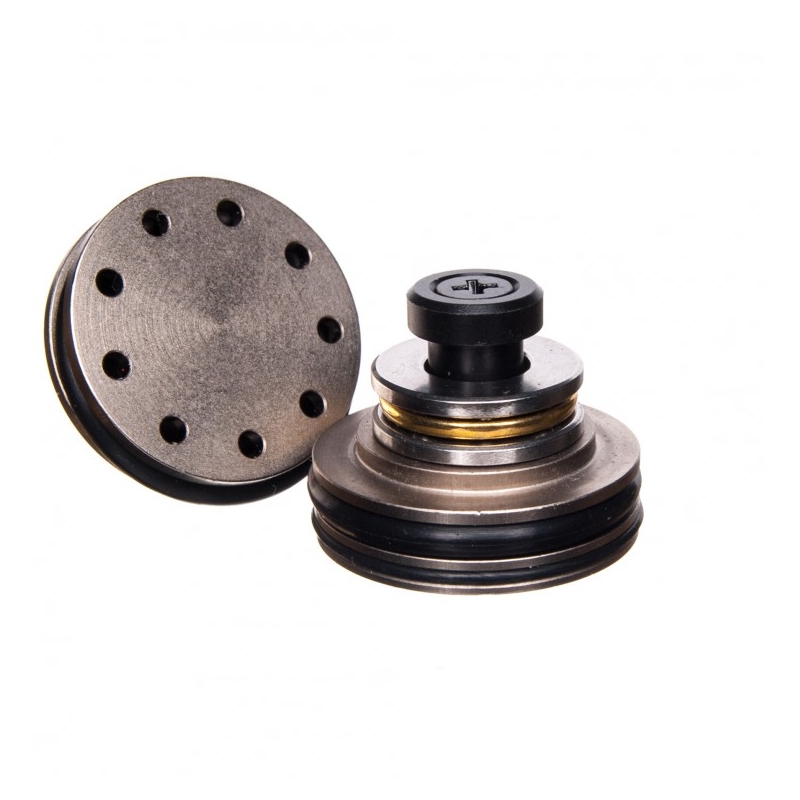

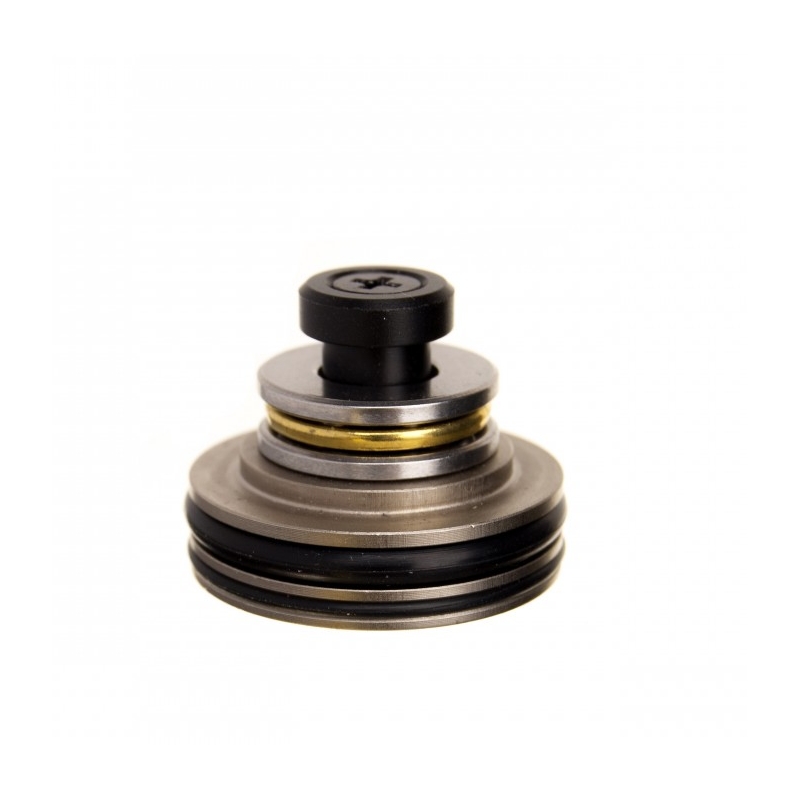

AirsoftParts DURAL 2013 NBU piston head is a CNC-machined component for AEG air seal systems, made from EN AW 6012 T6 duralumin with an electroless nickel-plated finish. Compared with the standard piston head, the NBU version has larger dimensions to match the Bore Up system with increased air volume and can therefore be combined only with an NBU cylinder. The front features 9 holes through which air flows beneath the main sealing O-ring during compression. The pressure expands it against the cylinder wall and promotes effective sealing. A second guide O-ring helps center the metal piston head inside the cylinder and reduces the risk of unwanted contact with the cylinder wall. The rear section is lightened, resulting in a total weight of 11.4 g. The design also incorporates an axial ball bearing that allows the spring to rotate more freely during compression. The manufacturer recommends use with springs up to M170 and states compatibility with V2, V3 and V7 gearboxes when used with the corresponding NBU air seal system. Made in the Czech Republic.
Key Features
NBU Design for Bore Up Systems
The enlarged dimensions of the piston head correspond to NBU / Bore Up air seal systems with increased air volume. The piston head must be combined with the corresponding NBU cylinder.
Guide O-Ring for Proper Centering
In addition to the main seal, the design uses a separate guide O-ring that helps keep the duralumin piston head centered and reduces contact with the inner cylinder wall.
9 Holes for Pressure-Assisted Sealing
The 9 front holes direct air beneath the sealing O-ring during compression. The pressure expands it against the NBU cylinder wall and helps effectively seal the piston assembly.
Durable Duralumin and Lightweight Design
The piston head is CNC-machined from EN AW 6012 T6 duralumin, while the lightened rear section helps keep the total weight at 11.4 g. The manufacturer recommends use with springs up to M170.
Axial Ball Bearing
The integrated axial ball bearing allows the spring to rotate more freely during compression, reducing torsional stress and contributing to longer spring life.
Technical Specifications
- Designation: HP-DUR-DOU-NBU
- Type: Piston head for AEG
- Size: NBU / Bore Up
- Material: EN AW 6012 T6
- Manufacturing: CNC machining
- Maximum Recommended Spring: M170
- Sealing: 1× sealing O-ring + 1× guide O-ring
- Number of Front Holes: 9
- Lightened: Yes
- Surface Finish: Electroless nickel plating
- Bearing: Axial ball bearing
- Weight: 11.4 g
- Compatibility: V2, V3 and V7 gearboxes with the corresponding NBU air seal system
- Compatible Cylinder: NBU / Bore Up cylinder only
Frequently Asked Questions (FAQ)
Can the DURAL 2013 NBU Piston Head Be Used With a Standard AEG Cylinder?
No. The NBU version has enlarged dimensions and is designed exclusively for the corresponding NBU / Bore Up cylinder. This version is not compatible with a standard cylinder.
What Is the Difference Between DURAL 2013 and DURAL 2013 NBU?
DURAL 2013 NBU is an enlarged version for Bore Up air seal systems. The standard DURAL 2013 works with a standard-size cylinder, while the NBU version requires an NBU cylinder.
What Is the Guide O-Ring For?
The guide O-ring helps center the metal piston head inside the cylinder and reduces the risk of unwanted contact with the inner cylinder wall. The main seal is provided by a separate sealing O-ring.
What Is the Maximum Spring That Can Be Used With the Piston Head?
The manufacturer recommends use with springs up to M170. In builds under this level of load, the other gearbox components must also be appropriately rated.
| Variants | DURAL 2013 NBU |
| Piston head | Metal |
