VO AR15 One-Piece Mount for 30mm Riflescope - Black
One-piece AR15 RIS mount for a 30 mm rifle scope from Vector Optics in black finish.
38 mm centre height for the ideal optic position on AR15 / M4 rifles.
CNC-machined 6061-T6 aluminium for low weight and high durability.
Four screws per ring for maximum scope security.
Suitable for classic and LPVO 30 mm rifle scopes such as FORESTER, MUSTANG, CONTINENTAL and more.
Another product variants
Dark Earth (FDE)On stock
BlackOn stock
Dark Earth (FDE)On stock
25+ years of proven equipment and accessories.
Accessories
342,13 € In StockVO CONTINENTAL 1-6 x 24i Fiber LPVO Riflescope - BlackSCOC-44
LPVO Rifle Scope CONTINENTAL 1-6x24i Fiber from Vector Optics in black finish. Premium LaREE & VePRO optics with 90% light transmission. Super Bright Fiber illuminated center dot. Made from aircraft-grade 6061-T6 aluminium, nitrogen-purged and waterproof. Tested to withstand recoil of .338 Lapua Magnum.
342,13 €Out of stock
107,84 € In StockVictOptics S6 1-6×24i Fiber LPVO Scope - BlackOPSL33
VictOptics LPVO rifle scope S10 1-6×24i Fiber in black finish offers visible daylight illumination and a fiber optic reticle. High-quality fully multi-coated (FMC) lenses ensure a clear and sharp image. Red illumination with 6 brightness levels, a durable construction rated up to 750G recoil, and true 1× magnification make it suitable not only for airsoft...
107,84 €In Stock
92,62 € In StockVictOptics S6 1-6x24 SFP LPVO Riflescope - BlackOPSL22
LPVO rifle scope S6 1-6x24 SFP by VictOptics in black. True 1–6× zoom with edge-to-edge clarity. Long 101 mm eye relief. Illuminated VI-CTSIX MIL reticle in red and green. Lockable TLS turrets to prevent accidental adjustment. IPX4 water resistance. Tested up to 7.62×39 recoil.
92,62 €In Stock
112,07 € In StockVO LPVO Riflescope FORESTER 1-5x24 SFP Fiber - BlackSCOC-54
LPVO Rifle Scope FORESTER 1-5x24 SFP Fiber by Vector Optics in black. True 1x magnification for both-eyes-open shooting. 100 mm eye relief. Fiber optic center dot with 6 brightness levels. Lockable turrets and motion sensor for battery saving. IPX4 water resistance and 750G shockproof.
112,07 €In Stock
AR15 RIS Mount for 30 mm Rifle Scopes by Vector Optics
Looking for a solid one-piece mount for your rifle scope? Need the correct height for a natural shooting position and absolute optic stability? This one-piece RIS AR15 mount from Vector Optics with a 30 mm diameter offers a 38 mm centre height, giving you the ideal upright position for accurate shooting with AR15-type rifles, yet you can use it on any firearm equipped with a RIS rail. Thanks to its Cantilever (offset) design, the optic is shifted forward to ensure a comfortable eye relief. The CNC-machined 6061-T6 aluminium keeps the construction light and strong, while the four-screw system on each ring guarantees a secure hold even under heavy recoil.
Example of the Dark Earth mount with an installed VO Forester 1-5×24 LPVO scope
Key Features
- Optimal height:
38 mm centre height for a natural shooting position. - Cantilever design:
Moves the scope forward for improved eye relief. - Secure mounting:
Four screws on each ring ensure maximum optic stability. - Lightweight construction:
CNC-machined 6061-T6 aluminium weighing only 155 g. - Compatibility:
Designed for 30 mm tubes, mounts to any standard RIS rail.

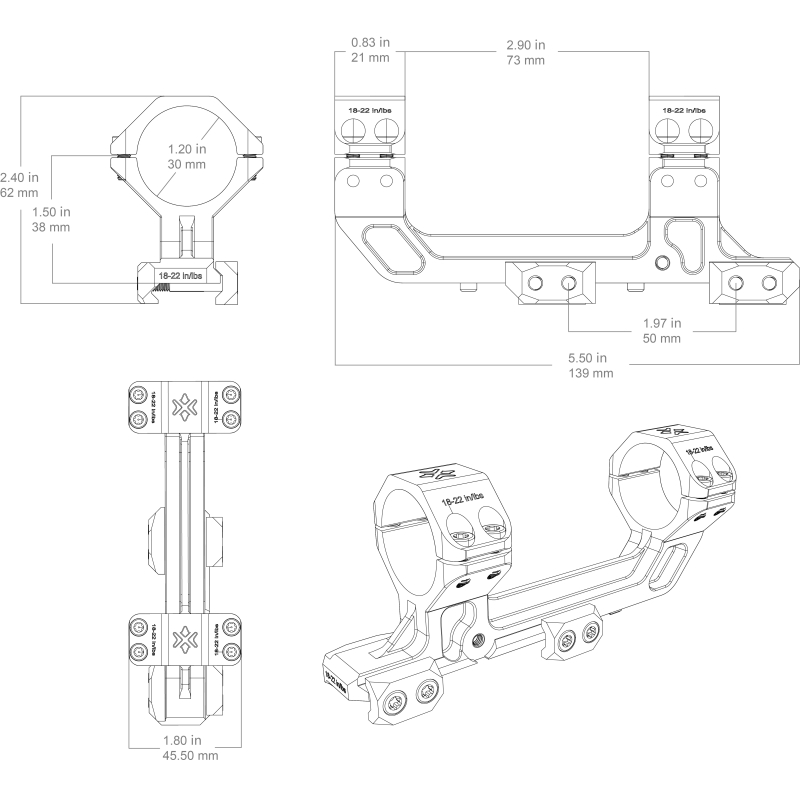

Technical Specifications
- Ring diameter: 30 mm
- Total height: 62 mm
- Centre height: 38 mm (from base to tube centre)
- Total length: 139 mm
- Mounting length: 120 mm
- Ring spacing: 73 mm
- Material: 6061-T6 aluminium
- Weight: 155 g
- Mounting: RIS
- Finish: Black
Package Contents
- AR15 30 mm RIS mount
- T15 Torx key
| Color | Black |
| Body/receiver material | Metal |
