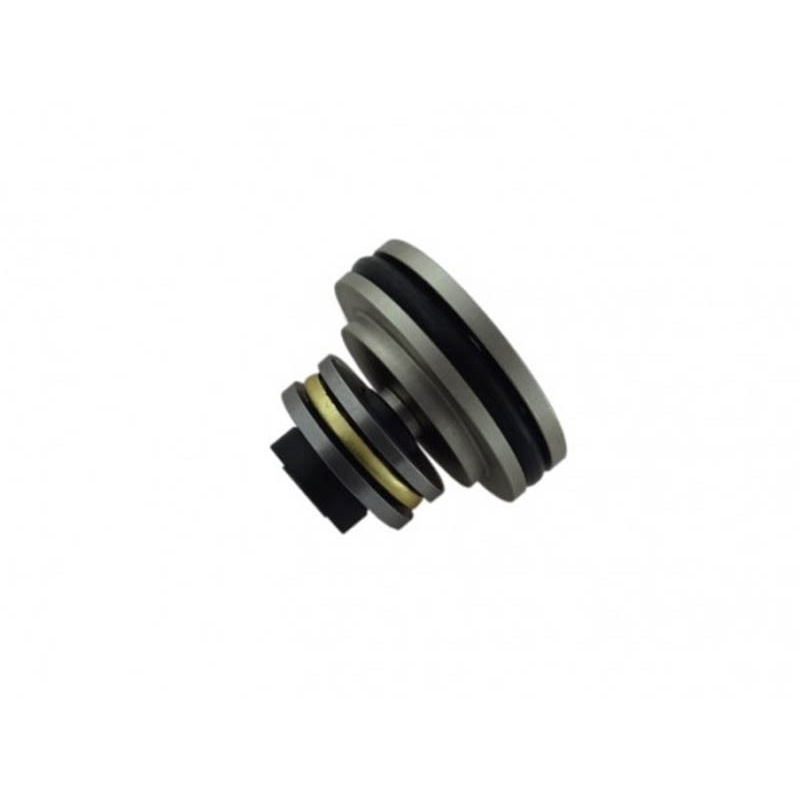

AirsoftParts Piston Head DURAL
AirsoftParts DURAL piston head is a CNC-machined piston head made from EN AW 6012 T6 duralumin with 9 ventilation holes for effective expansion of the sealing O-ring. It offers a low weight of 10.8 g, a smooth nickel-plated surface and an axial ball bearing that allows the spring to rotate freely during compression and reduces torsional stress.
Another product variants
On stock
On stock
25+ years of proven equipment and accessories.
Accessories
1,23 € In StockAirsoftParts DURAL / TECAFORM 2013 Spare Piston Head O-ringASPARTS002
AirsoftParts replacement seal set for DURAL 2013 / TECAFORM 2013 piston heads is designed to restore proper sealing of the piston assembly. It includes a sealing O-ring and a centering ring. The manufacturer recommends replacement after approximately 10,000 BBs fired or once a year, as operation gradually deforms the O-ring and reduces its sealing...
1,23 €In Stock
6,34 € In Stock4UANTUM High Viscosity Airtight Sealant SEAL - Transparent4UAD006
4UANTUM SEAL Silicone Grease for Sealing by 4UAD in a transparent finish. High-viscosity sealing grease. Ideal for sealing repairs and preventing leaks from damaged O-rings. Suitable for electric AEGs, manual, GBB, CO2, and HPA gas guns. Content: 15 ml. Easy application with a pen applicator.
6,34 €In Stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock
AirsoftParts DURAL Piston Head With Axial Ball Bearing
AirsoftParts DURAL piston head is a durable CNC-machined component for AEG air seal systems, made from EN AW 6012 T6 duralumin. The front features 9 ventilation holes through which air flows beneath the sealing O-ring during compression. The pressure expands the O-ring towards the cylinder wall, helping to provide an effective seal for the piston assembly. The head weighs only 10.8 g and its surface is finished with high-quality nickel plating for a very smooth surface. The design also incorporates an axial ball bearing that allows the spring to rotate more freely during compression, reducing unwanted twisting and contributing to longer spring life. The plastic nut helps reduce the overall weight of the assembly. According to the manufacturer, the piston head is compatible with all types of gearboxes. In a test with a standard air seal system and an M120 spring, the manufacturer measured an approximate muzzle velocity increase of 5 m/s, although the actual performance change always depends on the air seal, cylinder, nozzle, barrel and other components of the specific build.
Key Features
9 Holes for Pressure-Assisted Sealing
Air flowing through the 9 holes in the front expands the sealing O-ring against the cylinder wall, helping to provide an effective seal for the piston assembly during compression.
CNC-Machined EN AW 6012 T6 Duralumin
The piston head is CNC-machined from EN AW 6012 T6 duralumin, which offers a suitable combination of strength, durability and low weight.
Axial Ball Bearing
The integrated axial ball bearing allows the spring to rotate during compression, reducing torsional stress and contributing to longer spring life.
Smooth Nickel-Plated Surface
The high-quality nickel-plated finish creates a very smooth surface on the piston head while also protecting the duralumin component itself.
Low Weight of 10.8 g
Despite its metal construction, the head weighs only 10.8 g. The plastic nut also helps reduce the overall weight of the assembly.
Technical Specifications
- Type: Piston head for AEG
- Material: EN AW 6012 T6 duralumin
- Manufacturing: CNC machining
- Surface Finish: Nickel plating
- Number of Ventilation Holes: 9
- Bearing: Axial ball bearing
- Nut: Plastic
- Weight: 10.8 g
- Compatibility: According to the manufacturer, all types of gearboxes
- Approximate Muzzle Velocity Change: +5 m/s in a comparative test with a standard air seal system and M120 spring
Package Contents
- 1× piston head
- 1× sealing O-ring
- 1× nut
- 1× axial ball bearing
- 1× screw
Frequently Asked Questions (FAQ)
What Are the 9 Holes on the Front of the Piston Head For?
During compression, air flows through the holes beneath the sealing O-ring and expands it towards the cylinder wall. This improves the piston seal during the operating cycle.
What Is the Function of the Axial Ball Bearing?
The bearing allows the spring to rotate more easily during compression. This reduces twisting and, according to the manufacturer, significantly contributes to extending its service life.
Will This Piston Head Increase Muzzle Velocity by 5 m/s?
This is not a guaranteed performance increase. The +5 m/s figure is only an approximate result of the manufacturer's test compared with a standard air seal system and an M120 spring. The result in a specific gun depends on the complete build and its air seal.
Which Gearboxes Is the Piston Head Designed For?
The manufacturer states that it can be used with all types of gearboxes. When building or upgrading, however, it is still advisable to verify the mechanical compatibility of the complete piston and air seal assembly of the specific gun.
| Variants | DURAL |
| Piston head | Metal |
