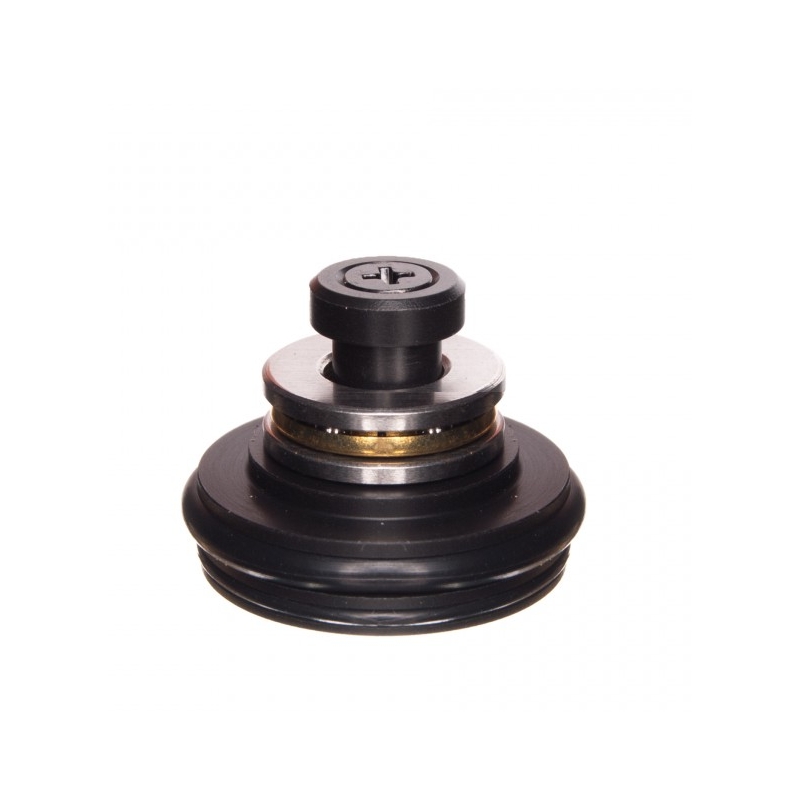

AirsoftParts TECAFORM 2013 NBU Piston Head
AirsoftParts TECAFORM 2013 NBU piston head is a lightweight CNC-machined piston head made from TECAFORM (POM) for Bore Up air seal systems. The enlarged NBU version is designed exclusively for the corresponding NBU cylinder. It weighs just 8.9 g and features 9 holes for pressure-assisted sealing, a guide O-ring and an axial ball bearing.
Another product variants
On stock
On stock
25+ years of proven equipment and accessories.
Accessories
16,87 € In StockAirsoftParts Silent Cylinder Head NBUASPARTS016
AirsoftParts NBU silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for Bore Up air seal systems in V2 and V3 gearboxes. The integrated sealing collar with a large 70 ShA impact pad helps seal the assembly and cushion piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts NBU Ribbed Cylinder – Full (400+ mm)ASPARTS022
AirsoftParts NBU full cylinder is a polished stainless steel upgrade part for NBU / Bore Up air seal systems in AEGs with long inner barrels from 400 mm. The enlarged 24.7 mm inner diameter provides a higher air volume than a standard cylinder and requires an NBU piston head and NBU cylinder head. The smooth polished surface helps reduce seal friction.
16,87 €In Stock
3,34 € 5,88 € In Stock-43%AirsoftParts NBU Duralumin NozzleASPARTS066
AirsoftParts NBU duralumin nozzle is a precision CNC-machined nozzle for NBU / Bore Up air seal systems, made from EN AW 6012 T6 duralumin. An internal O-ring helps seal the connection with the cylinder head and reduce air leakage. The nozzle is designed exclusively for use with an NBU cylinder head and weighs only 0.8–1.3 g depending on the length variant.
3,34 € 5,88 €In StockReduced price!
11,21 € In Stock4UANTUM Universal Lubrication Grease Pen SMOOTH - Red4UAD003
4UANTUM SMOOTH universal lubrication pen from 4UAD with red lubricant. Specially developed for AEG, GBB, and HPA airsoft weapons. Suitable for plastic and rubber parts without risk of material degradation. Rotating applicator for easy application and convenient portability. Keep it smooth, keep it shooting – don't let your gears run dry!
11,21 €In Stock- SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts TECAFORM 2013 NBU Piston Head for Bore Up Air Seal Systems
AirsoftParts TECAFORM 2013 NBU piston head is a CNC-machined component for AEG air seal systems, made from TECAFORM (POM) engineering plastic. The NBU version has enlarged dimensions corresponding to a Bore Up system with increased air volume and can therefore be combined only with an NBU cylinder. The piston head weighs just 8.9 g, and the manufacturer recommends it for springs up to M160. The front features 9 holes through which air flows beneath the main sealing O-ring during compression. The pressure expands it against the cylinder wall and promotes effective sealing. A second guide O-ring helps center the piston head inside the cylinder and reduces unwanted contact with the inner cylinder wall. A locking nut passes through the center of the piston head, distributing the clamping force over a larger area and reducing the risk of the mounting screw being pulled out of the POM body. The integrated axial ball bearing allows the spring to rotate more freely during compression and reduces torsional stress. The manufacturer states compatibility with V2, V3 and V7 gearboxes when used with the corresponding NBU air seal system. Made in the Czech Republic.
Key Features
NBU Design for Bore Up Systems
The enlarged dimensions correspond to NBU / Bore Up air seal systems with increased air volume. The piston head must be combined with the corresponding NBU cylinder.
Low Weight of 8.9 g
The CNC-machined TECAFORM (POM) construction weighs just 8.9 g, helping to keep the moving mass of the piston assembly low.
Two O-Rings With Different Functions
The main O-ring provides pressure-assisted sealing of the piston inside the NBU cylinder, while the second guide O-ring helps center the piston head and reduces contact with the cylinder wall.
Through-Locking Nut
The nut passing through the center of the piston head distributes the clamping force over a larger area, reducing localized stress on the POM body and the risk of the mounting screw being pulled out.
Axial Ball Bearing
The integrated axial ball bearing allows the spring to rotate more freely during compression, reducing twisting and contributing to longer spring life.
Technical Specifications
- Designation: HP-POM-DOU-NBU
- Type: Piston head for AEG
- Size: NBU / Bore Up
- Material: TECAFORM (POM)
- Manufacturing: CNC machining
- Maximum Recommended Spring: M160
- Sealing: 1× sealing O-ring + 1× guide O-ring
- Number of Front Holes: 9
- Bearing: Axial ball bearing
- Weight: 8.9 g
- Compatibility: V2, V3 and V7 gearboxes with the corresponding NBU air seal system
- Compatible Cylinder: NBU / Bore Up cylinder only
Frequently Asked Questions (FAQ)
Can the TECAFORM 2013 NBU Piston Head Be Used With a Standard Cylinder?
No. The NBU version has enlarged dimensions and is designed exclusively for the corresponding NBU / Bore Up cylinder. This version is not compatible with a standard AEG cylinder.
What Is the Difference Between TECAFORM 2013 and TECAFORM 2013 NBU?
TECAFORM 2013 NBU is an enlarged version for Bore Up air seal systems. The standard version works with a standard cylinder, while the NBU version requires the corresponding NBU cylinder.
What Is the Locking Nut Inside the Piston Head For?
The through-locking nut distributes the clamping force of the screw over a larger area. This reduces localized stress on the POM body and the risk of the mounting screw being pulled out of the piston head.
What Is the Maximum Spring That Can Be Used With the Piston Head?
The manufacturer recommends use with springs up to M160. In a build under this level of load, the other mechanically stressed gearbox components must also be appropriately rated.
| Variants | TECAFORM 2013 NBU |
| Piston head | Plastic |
