AirsoftParts NBU Duralumin Nozzle

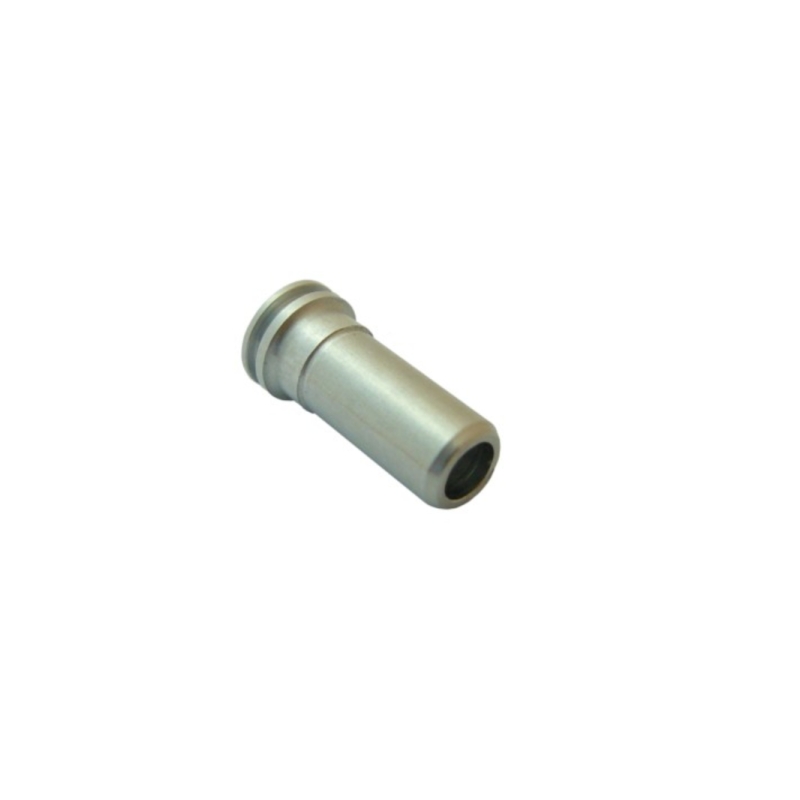

AirsoftParts NBU duralumin nozzle is a precision CNC-machined nozzle for NBU / Bore Up air seal systems, made from EN AW 6012 T6 duralumin. An internal O-ring helps seal the connection with the cylinder head and reduce air leakage. The nozzle is designed exclusively for use with an NBU cylinder head and weighs only 0.8–1.3 g depending on the length variant.
25+ years of proven equipment and accessories.
Accessories
16,87 € In StockAirsoftParts Silent Cylinder Head NBUASPARTS016
AirsoftParts NBU silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for Bore Up air seal systems in V2 and V3 gearboxes. The integrated sealing collar with a large 70 ShA impact pad helps seal the assembly and cushion piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
10,95 € 16,87 € In Stock-35%AirsoftParts Cylinder Head CLASSIC NBUASPARTS018
AirsoftParts CLASSIC NBU cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for Bore Up air seal systems in V2 and V3 gearboxes. Two O-rings provide sealing in the NBU cylinder, the shaped 70 ShA impact pad cushions piston impacts, and the electroless nickel-plated finish provides high durability and low friction for smooth NBU nozzle...
10,95 € 16,87 €In StockReduced price!
16,87 € In StockAirsoftParts NBU Ribbed Cylinder – Full (400+ mm)ASPARTS022
AirsoftParts NBU full cylinder is a polished stainless steel upgrade part for NBU / Bore Up air seal systems in AEGs with long inner barrels from 400 mm. The enlarged 24.7 mm inner diameter provides a higher air volume than a standard cylinder and requires an NBU piston head and NBU cylinder head. The smooth polished surface helps reduce seal friction.
16,87 €In Stock
14,76 € In StockAirsoftParts TECAFORM 2013 NBU Piston HeadASPARTS127
AirsoftParts TECAFORM 2013 NBU piston head is a lightweight CNC-machined piston head made from TECAFORM (POM) for Bore Up air seal systems. The enlarged NBU version is designed exclusively for the corresponding NBU cylinder. It weighs just 8.9 g and features 9 holes for pressure-assisted sealing, a guide O-ring and an axial ball bearing.
14,76 €In Stock- SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts NBU Duralumin Nozzle for Bore Up Air Seal Systems
AirsoftParts NBU duralumin nozzle is an air seal component designed specifically for NBU / Bore Up systems. It is CNC-machined from EN AW 6012 T6 aluminium alloy and features one internal sealing O-ring that seals the connection between the nozzle and cylinder head outlet during movement. The key difference compared to the standard version is the NBU dimensions – this nozzle must be combined with an NBU cylinder head and is not compatible with a standard cylinder head. Depending on the specific length, the weight ranges from 0.8 to 1.3 g. In addition to choosing the NBU version, selecting the correct nozzle length is also important, as its dimensions affect contact with the hop-up bucking, air seal and reliable BB feeding.
Key Features
For NBU / Bore Up Air Seal Systems
The nozzle has NBU dimensions and is designed exclusively for the corresponding NBU cylinder head. It cannot be correctly combined with a standard cylinder head.
CNC-Machined EN AW 6012 T6 Duralumin
The nozzle is precision CNC-machined from EN AW 6012 T6 duralumin, which offers high strength while maintaining a low weight for this moving component.
Internal Sealing O-Ring
One O-ring inside the nozzle seals its connection with the NBU cylinder head and helps reduce air loss in this part of the air seal system.
Low Weight
Depending on the specific length variant, the nozzle weighs only 0.8–1.3 g, so it does not unnecessarily increase the weight of the moving parts of the feeding mechanism.
Made in the Czech Republic
Precision CNC machining is carried out in the Czech Republic, and the nozzle is designed for building, servicing and optimizing NBU air seal systems in AEGs.
Technical Specifications
- Model: NOZ-NBU-xx
- Type: nozzle for AEG air seal system
- Size: NBU / Bore Up
- Material: EN AW 6012 T6
- Manufacturing: CNC machining
- Seal: 1× O-ring
- Weight: 0.8–1.3 g depending on variant
- Compatible cylinder head: NBU
- Compatibility with standard cylinder head: no
- Country of manufacture: Czech Republic
Package Contents
- 1× NBU duralumin nozzle
- 1× sealing O-ring
Frequently Asked Questions (FAQ)
What Is the Difference Between a Standard and NBU Nozzle?
The NBU nozzle is dimensioned for NBU / Bore Up air seal systems. Its internal dimensions correspond to an NBU cylinder head, so it is not interchangeable with the standard version.
Can the NBU Nozzle Be Used With a Standard Cylinder Head?
No. The NBU nozzle must be combined with an NBU cylinder head. When assembling a Bore Up air seal system, always check that the individual components are dimensionally compatible with each other.
How Do I Choose the Correct NBU Nozzle Length?
ANAREUS tip: use the length of the original correctly functioning nozzle and the design of the specific gun as a reference. Choosing the NBU version alone is not enough – the correct length is important for the air seal against the hop-up bucking and reliable BB feeding.
Does the Sealing O-Ring Need Lubrication?
ANAREUS tip: during installation, we recommend lightly lubricating the O-ring and contact surface with a suitable seal-compatible lubricant. Use only a small amount to prevent excess lubricant from entering further into the air seal system.
| Variants | NBU |
| Color | Silver |
| Nozzle | Metal |
