AirsoftParts ULTRA LIGHT Piston Head
AirsoftParts ULTRA LIGHT piston head is an extremely lightweight CNC-machined piston head made from TECAFORM (POM), weighing just 5.4 g. Its lightweight design with 9 front holes promotes effective O-ring sealing while reducing the moving mass of the piston assembly. It is designed for V2, V3 and V7 gearboxes with springs up to M130.
25+ years of proven equipment and accessories.
Accessories
11,21 € In Stock4UANTUM Universal Lubrication Grease Pen SMOOTH - Red4UAD003
4UANTUM SMOOTH universal lubrication pen from 4UAD with red lubricant. Specially developed for AEG, GBB, and HPA airsoft weapons. Suitable for plastic and rubber parts without risk of material degradation. Rotating applicator for easy application and convenient portability. Keep it smooth, keep it shooting – don't let your gears run dry!
11,21 €In Stock- SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts ULTRA LIGHT Piston Head – 5.4 g

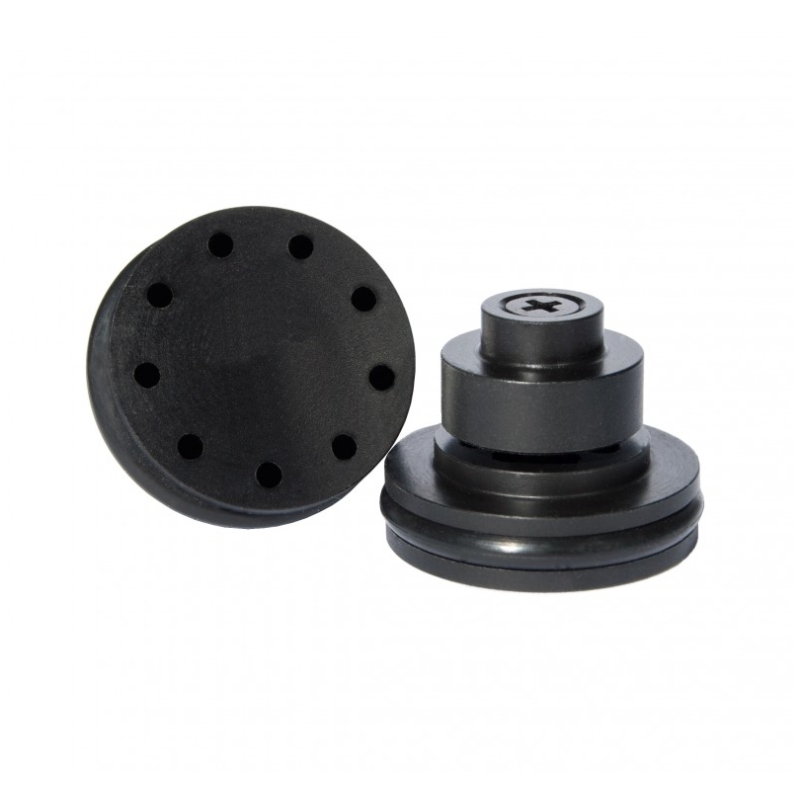

AirsoftParts ULTRA LIGHT HP-ULTRA piston head is designed with an emphasis on minimizing the weight of the piston assembly. It is CNC-machined from TECAFORM (POM) engineering plastic and, thanks to its carefully lightened design, weighs only 5.4 g. The front features 9 holes through which air flows beneath the sealing O-ring during compression, expanding it against the cylinder wall and promoting effective sealing. Another 8 holes on the rear significantly reduce weight. The design deliberately omits the 3.8 g axial ball bearing and instead uses a lightweight 1.5 g TECAFORT washer of the same dimensions. The lower moving mass means less energy in the piston assembly on impact and may also affect the dynamics of its movement. The manufacturer therefore recommends this piston head for springs up to M130 and states compatibility with V2, V3 and V7 gearboxes. Made in the Czech Republic.
Key Features
Extremely Low Weight of 5.4 g
The significantly lightened design weighs just 5.4 g, reducing the moving mass of the piston assembly and its mechanical energy on impact.
9 Holes for Pressure-Assisted Sealing
The 9 front holes direct air beneath the O-ring during compression, expanding it against the cylinder wall and helping to properly seal the piston assembly.
CNC-Machined TECAFORM (POM)
The piston head is precision CNC-machined from TECAFORM (POM) engineering plastic, allowing for a lightweight yet functional air seal component.
Lightweight Design Without a Ball Bearing
Instead of a 3.8 g axial bearing, the design uses a 1.5 g TECAFORT washer. An additional 8 lightening holes on the rear further reduce weight.
For Springs up to M130
ULTRA LIGHT is designed for builds with springs up to M130. The manufacturer states compatibility with V2, V3 and V7 gearboxes.
Technical Specifications
- Designation: HP-ULTRA
- Type: Lightweight piston head for AEG
- Size: Standard
- Material: TECAFORM (POM)
- Manufacturing: CNC machining
- Weight: 5.4 g
- Maximum Recommended Spring: M130
- Seal: 1× O-ring
- Number of Front Holes: 9
- Number of Rear Lightening Holes: 8
- Lightened: Yes
- Bearing: No
- Washer: TECAFORT, 1.5 g
- Surface Finish: None
- Compatibility: V2, V3 and V7 gearboxes
Frequently Asked Questions (FAQ)
Why Does the ULTRA LIGHT Piston Head Weigh Only 5.4 g?
The low weight is achieved through a combination of TECAFORM (POM), 8 rear lightening holes and replacing the axial ball bearing with a lightweight TECAFORT washer. The washer weighs 1.5 g, while the standard bearing specified by the manufacturer weighs 3.8 g.
Why Does the Piston Head Not Have an Axial Ball Bearing?
The design focuses primarily on minimizing the weight of the piston assembly. The manufacturer therefore replaced the bearing with a dimensionally equivalent lightweight TECAFORT washer and limited the piston head to springs up to M130.
Can the ULTRA LIGHT Piston Head Be Used With a Spring Stronger Than M130?
The manufacturer recommends use with springs up to M130. For stronger springs, it is advisable to choose a piston head designed for higher mechanical loads.
Which Gearboxes Is the Piston Head Compatible With?
According to the manufacturer, the AirsoftParts ULTRA LIGHT is compatible with V2, V3 and V7 gearboxes. When building a specific setup, it is always advisable to check the correct installation and function of the complete piston and air seal assembly.
| Variants | ULTRA LIGHT |
| Color | Black |
| Piston head | Plastic |
