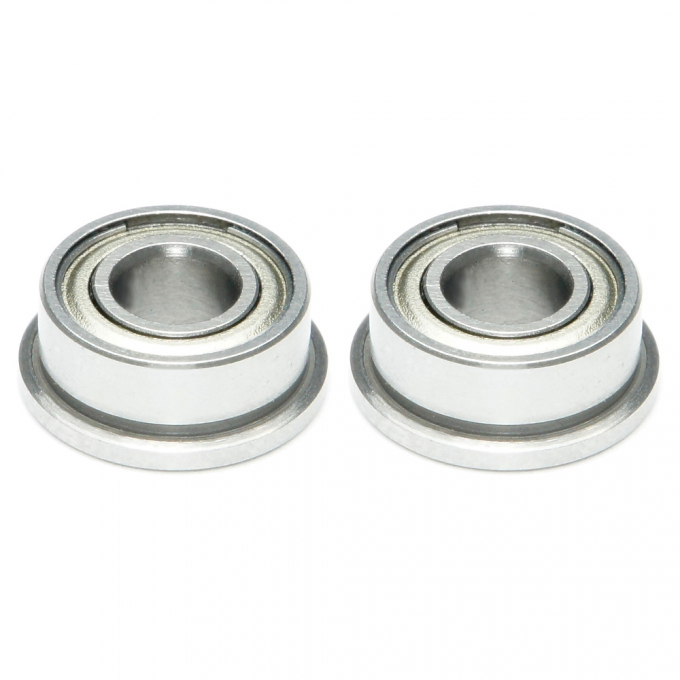

MAXX Flanged Steel Ball Bearing 4x9x4mm - 2PCS View larger

MAXX Flanged Steel Ball Bearing 4x9x4mm - 2PCS

Flanged Ball Bearings are to reduce rotational friction and support radial loads. Ideal for precision work with close tolerances suitable for building models and applications.

3,34 € tax incl.

-2,16 €

5,50 € tax incl.

-39%

Anareus 25 let

25+ years of proven equipment and accessories.

Availability: In Stock at store

> 5 Items

MF684ZZ

: MAXX

The flanged ball bearings have a flanged outer ring to facilitate location in housing axially and eliminate the need for housing shoulders.

Made of heat-treated Chrome steel.

Specifications:

  • Bore Diameter: d=4mm
  • Outer Diameter: D=9mm
  • Width: B=4mm
  • Flange Diameter: Df=10.3mm
  • Flange Width: Bf=0.6mm
  • Inner Race: Di=5.2mm
  • Outer Race: Do=7.5mm
  • Radius: R=0.15mm
  • Dynamic Load Rating: C=49kgf
  • Static Load Rating: Co=22kgf
  • Bearing Type: Flanged Deep Groove Ball Bearing
  • Closure: Metal Shields
  • Material: Chrome Steel (SAE52100)

Features:

  • Heat-treated Chrome steel
  • Flanged outer ring
  • Reduced rotational friction
  • Radial loads support
  • Close tolerances
