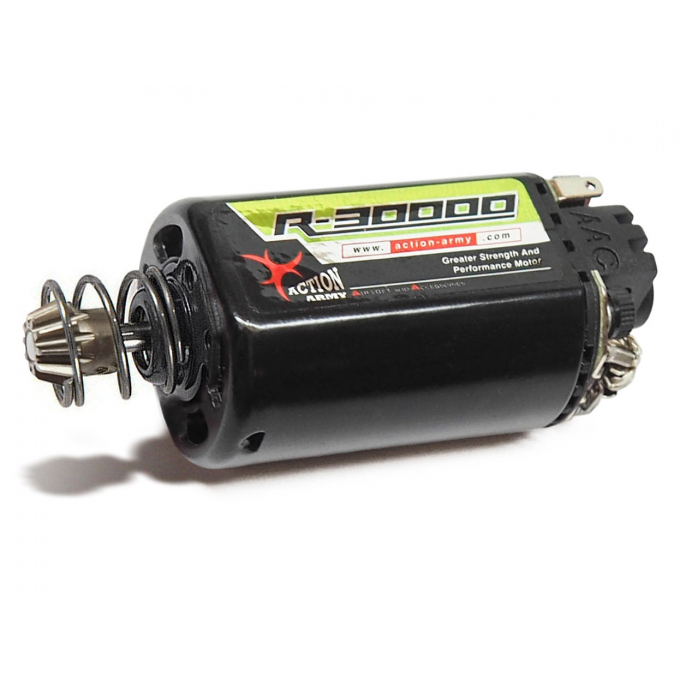

AA CNC Torque Motor INFINITY 30000R - Short Axis

Action Army CNC Torque Motor INFINITY 30000R - Short Axis View larger
We are sorry, but the sale has already ended

CNC upgrade INFINITY 30000R motor by Action Army in black.

Short shaft for AK, G36, M249, CZ Scorpion EVO 3 A1 and other replicas.

High-performance AEG motor with 30,000 RPM.

CNC machining on both rotor and pinion gear.

Silver wiring, enlarged brushes, and bearings for smooth operation and heat dissipation.

The sale is over Show alternatives

A10-008

: Action Army

CNC High-Torque INFINITY 30000R Motor by Action Army

The INFINITY 30000R motor from Action Army is designed for high performance and efficiency. Thanks to premium components and strict quality control, it delivers smooth and stable operation even at high speeds. With 30,000 RPM at 8.4 V, it’s perfect for builds focused on high torque and rate of fire (RoF). The CNC-machined TM-spec pinion gear ensures precise engagement with most gear sets, minimizing damage risk. The silicon steel rotor is perfectly balanced and wound to a high standard, providing quiet performance and low heat buildup. The motor housing features precise construction with ventilation holes for better cooling. It’s fitted with ball-bearing shaft stabilizers and heat-resistant N38 magnets. The use of enlarged silver-plated carbon brushes ensures reliable contact. Altogether, this results in an extremely smooth and cool-running motor under load.

Technical Specifications

  • Shaft Type: Short
  • RPM: 30,000 at 8.4 V
  • TPA: 16
  • Length: 70.3 mm (from base to tip of pinion)
  • Magnets: N38 neodymium
  • Rotor: CNC-machined silicon steel
  • Pinion Gear: CNC stainless steel (TM-spec)
  • Brushes: Enlarged, silver-plated
  • Bearings: Ball bearings for reduced friction

Package Contents

  • CNC High-Torque INFINITY 30000R Motor
ColorBlack
Body/receiver materialMetal
