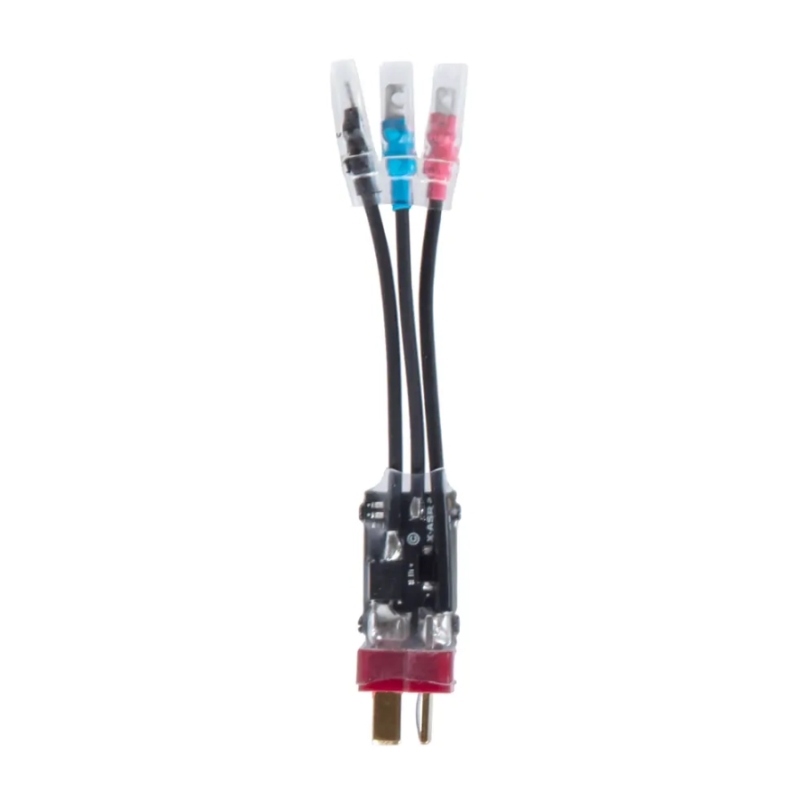

GATE Mosfet X-ASR2 with Wiring

GATE X-ASR2 MOSFET Unit

The X-ASR2 from Gate is the second generation of a proven MOSFET unit that delivers higher reliability and durability. Thanks to its optimized design, it generates less heat even under heavy spring loads (M150 and above), extending the lifespan of internal components and improving replica performance. It also acts as an electronic fuse to protect your gun from short circuits, overheating, and other malfunctions. Unlike gearbox-integrated control units, the X-ASR2 is universally compatible with all AEGs, including those with non-standard gearboxes. After every battery connection, the unit automatically performs a self-diagnostic test. Using two LED indicators, users can easily determine whether the system is ready or if an error has occurred. Installation is extremely easy – thanks to the pre-installed connectors, it can be quickly plugged into most AEG replicas with wiring prepared for MOSFET installation. For example, if you're upgrading from an older X-ASR (Gen1), you can simply swap it out one-to-one by reconnecting.

Notice

The X-ASR2 unit is not equipped with reverse polarity protection. Reversing the battery connection may cause permanent damage and is not covered by warranty.

Key Features

• Higher load tolerance:
  Handles M150+ springs with no issue.


• Reduced heating:
  Improved design enhances heat dissipation.


• LED indication:
  Two LEDs display system status and errors.


• Automatic self-diagnosis:
  Performs system check with each battery connection.


• Easy installation:
  Plug-in installation – no soldering required (provided you have MOSFET-ready wiring with compatible connectors).


• Conformal coating:
  Protects electronics from moisture and dirt.

Technical Specifications

• Designed for: AEG replicas (external installation)
• Error protection: Electronic fuse + LED indication
• Self-test system: Automatic diagnostic test upon battery connection
• Installation: Connector-based (no soldering required if wiring is MOSFET-ready)
• Reverse polarity protection: No

Package Includes

• X-ASR2 MOSFET unit
• Troubleshooting information card
• Connector set
