PERUN Clicker V2 PRO Magnetic Trigger Resistance

Clicker V2 PRO Magnetic Trigger Resistance by Perun for Hybrid V2 Processor Units

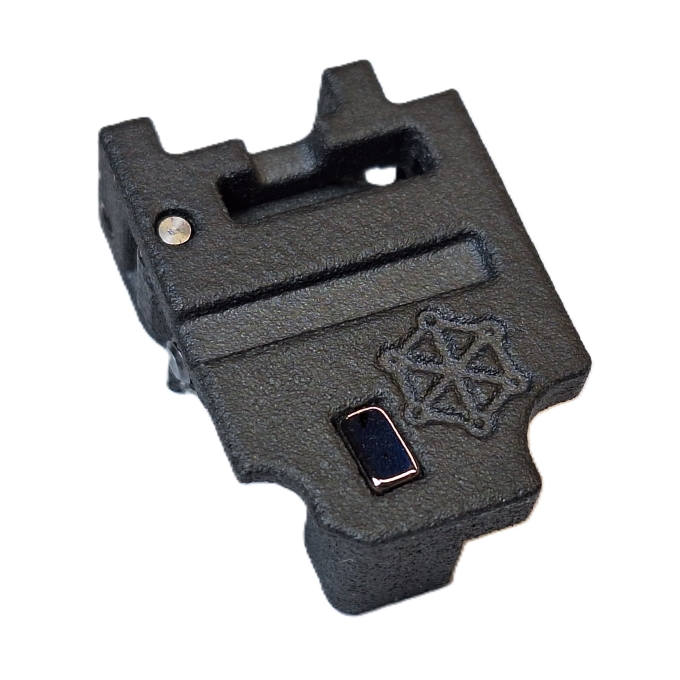

The Clicker magnetic trigger resistance unit is an accessory designed for use with Perun V2 Hybrid processor units. It provides a realistic trigger feel similar to real firearms, making it perfect for those who want more than just a shot from their airsoft gun.
The Clicker uses a magnet and lever system to simulate a trigger wall, avoiding wear commonly found in spring-based trigger simulators and offering an unmatched feel of resistance, break, and reset.
As the trigger is pulled, a metal part detaches from a magnet, creating a sharp break due to the rapid drop in magnetic force. The lever increases the force at the break point. Upon release, an audible reset occurs as the metal returns to and reconnects with the magnet.

V2 PRO Upgrades

• Stronger trigger resistance up to 3 kg, similar to real rifles.
• Mechanical trigger stop maintained for SAFE mode.
• 6 different trigger stops in various thicknesses for fine-tuning to gearbox and preference.
• Adjustable trigger pull force.
• Adjustable pretravel (initial trigger movement).
• Adjustable overtravel (how far the trigger moves after the break).
• Adjustable return spring resistance.

Installation and Adjustment

1. Installation

To install the Clicker, simply remove the V2 Hybrid magnet holder from the trigger and mechanical safety lock from the gearbox.
Insert the Clicker into the gearbox along with one of the 6 different trigger stops to preserve mechanical blocking in SAFE mode.
There may be slight resistance when closing the gearbox halves—this is normal, as the Clicker must remain absolutely stationary inside the gearbox for a consistent trigger feel. It is precisely designed to fill the available space tightly.

2. Break Force Adjustment

The break force can only be adjusted with the gearbox open, using a small screw inside the lever.
Turning the screw clockwise reduces the break force, turning it counter-clockwise increases it.
By default, the screw is set to maximum break force (fully unscrewed).

3. Pretravel, Overtravel, and Return Spring Resistance

Pretravel is the low-resistance movement before the trigger hits the wall.
In most setups (especially stock triggers), there will be several millimeters of pretravel where the firing magnet does not move—only crossing the wall triggers the shot.
Overtravel defines how far the trigger can move after the break.
Return spring resistance affects how quickly the trigger resets.

4. Setting Trigger Sensitivity in Perun V2 Hybrid

After installing the Clicker, set trigger sensitivity to level 5 for both fire modes (semi, auto).
In some cases (especially with adjustable-length triggers), sensitivity level 4 may be needed to prevent early firing before reaching the wall.

Compatibility

A. Triggers:
A&K, Classic Army, G&P, Maxx, P&J, Retro Arms, SHS, and possibly more.

B. Gearboxes:

• A&K, Bolt, Classic Army, King Arms, G&G, G&P, P&J, Retro Arms, Specna Arms, SRC, VFC.
• Krytac gearboxes are compatible but the Clicker blocks the piston release—minor trimming may be needed.
• Some Cyma and DE gearboxes require filing of the safety lock area on the upper (right) shell half.
• Fits KWA 2GX gearboxes, but may not function correctly unless modified.

Package Contents

• Clicker V2 PRO unit
• 6 different mechanical trigger stops

English Manual

The original English manual is available here: https://www.perunairsoft.pl/clickerv2pro.pdf
