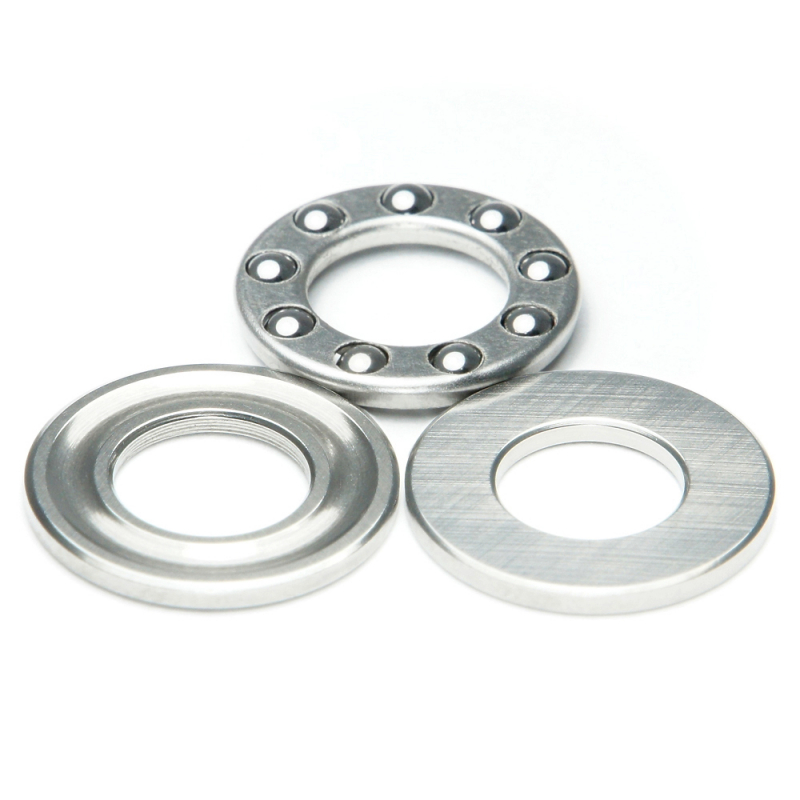

MAXX Thrust Ball Bearing 7x15x5mm

MAXX Thrust Ball Bearing 7x15x5mm View larger
Thrust Ball Bearings are to reduce rotational friction and support axial loads. Ideal for precision work with close tolerances suitable for building models and applications. The thrust ball bearings consist of a shaft washer, a housing washer and...
Thrust Ball Bearings are to reduce rotational friction and support axial loads. Ideal for precision work with close tolerances suitable for building models and applications. The thrust ball bearings consist of a shaft washer, a housing washer and a cage containing a complement of precision balls. They are separable and can be mounted separately. Made of heat-treated Chrome steel.   Bore Diameter: d2=7mm Outer Diameter: D1=15mm Width: H=5mm Radius: R=0.3mm Bore Diameter Clearance: d1=7.2mm Outer Diameter Clearance: D2=14.8mm Dynamic Load Rating: C=310kgf Static Load Rating: Co=270kgf
More

8,94 € tax incl.

Availability: In Stock

> 5 Items

F7-15G

: MAXX

By buying this product you can collect up to 2 points.
View loyalty points rules.


Thrust Ball Bearings are to reduce rotational friction and support axial loads. Ideal for precision work with close tolerances suitable for building models and applications.
The thrust ball bearings consist of a shaft washer, a housing washer and a cage containing a complement of precision balls. They are separable and can be mounted separately. Made of heat-treated Chrome steel.



Bore Diameter: d2=7mm
Outer Diameter: D1=15mm
Width: H=5mm
Radius: R=0.3mm
Bore Diameter Clearance: d1=7.2mm
Outer Diameter Clearance: D2=14.8mm
Dynamic Load Rating: C=310kgf
Static Load Rating: Co=270kgf
