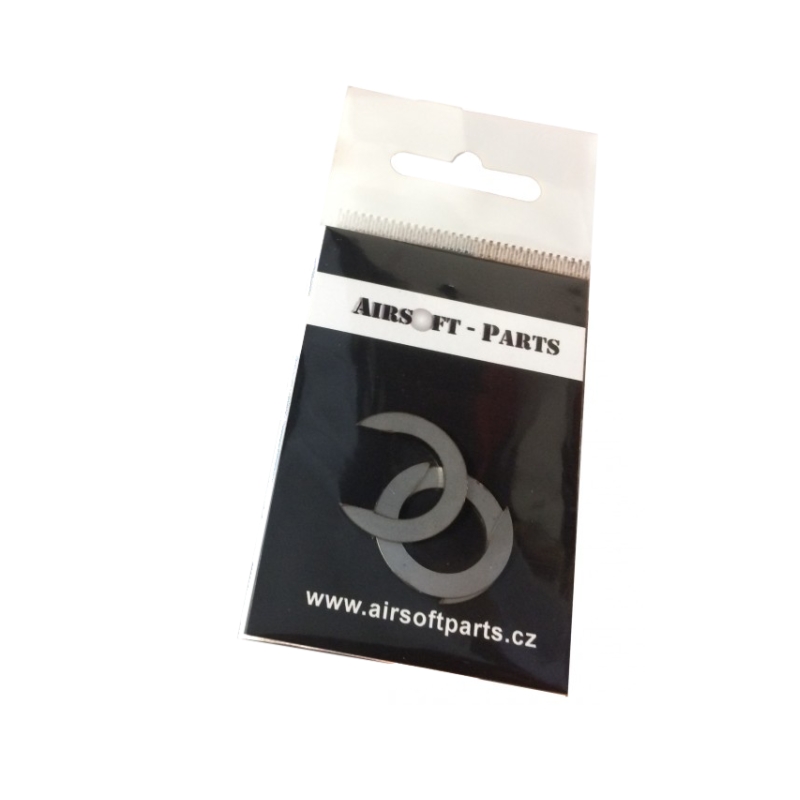

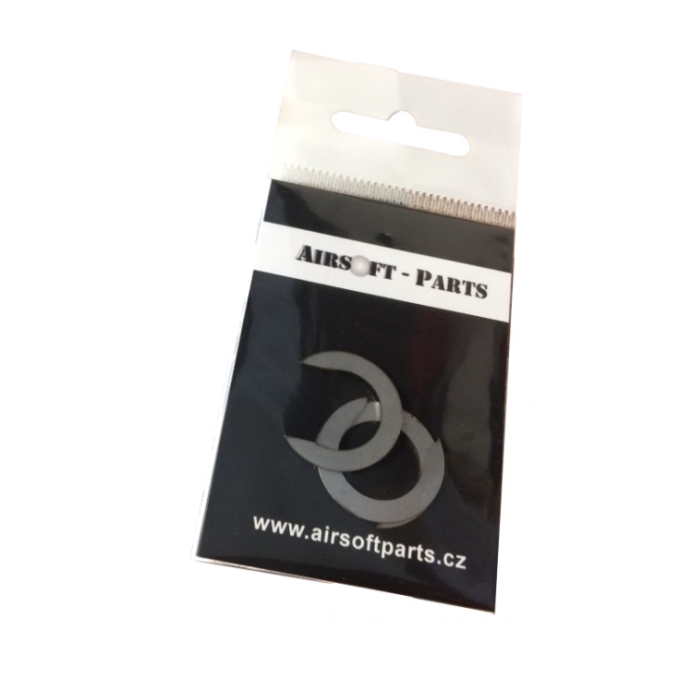

AirsoftParts Cylinder Head Shims (0,5 mm)
AirsoftParts cylinder head shims are designed to precisely adjust the position of the cylinder head inside the gearbox. The set contains 3 stainless steel shims with a thickness of 0.5 mm, which can be used individually or combined as required. This practical service part allows the cylinder head position to be adjusted without irreversible modifications to the gearbox or air seal system.
25+ years of proven equipment and accessories.
Accessories
16,87 € In StockAirsoftParts Silent Cylinder HeadASPARTS014
AirsoftParts silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. The integrated sealing collar with a large 80 ShA impact pad helps seal the air system while cushioning piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts Silent Cylinder Head NBUASPARTS016
AirsoftParts NBU silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for Bore Up air seal systems in V2 and V3 gearboxes. The integrated sealing collar with a large 70 ShA impact pad helps seal the assembly and cushion piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts Cylinder Head CLASSICASPARTS017
AirsoftParts CLASSIC cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. Two O-rings provide reliable sealing inside the cylinder, while the shaped 70 ShA impact pad cushions piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction for smooth nozzle movement.
16,87 €In Stock
10,95 € 16,87 € In Stock-35%AirsoftParts Cylinder Head CLASSIC NBUASPARTS018
AirsoftParts CLASSIC NBU cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for Bore Up air seal systems in V2 and V3 gearboxes. Two O-rings provide sealing in the NBU cylinder, the shaped 70 ShA impact pad cushions piston impacts, and the electroless nickel-plated finish provides high durability and low friction for smooth NBU nozzle...
10,95 € 16,87 €In StockReduced price!
AirsoftParts Cylinder Head Shims
AirsoftParts cylinder head shims are service parts designed to adjust the position of the cylinder head inside the gearbox. Each shim has a thickness of 0.5 mm, and with three pieces included, the amount of spacing can be adapted to the specific setup. The shims are made from stainless steel without any additional surface treatment. When adjusting the spacing, we recommend adding the shims one at a time and checking the correct seating of the cylinder head and alignment of the other air seal components after each change. The spacing must always be adapted to the specific gearbox and components used. The cylinder head must not move inside the gearbox, while both halves of the gearbox shell must still close correctly.
Key Features
Cylinder Head Position Adjustment
The shims allow you to adjust the position of the cylinder head inside the gearbox according to the requirements of the specific setup and components used.
0.5 mm Thickness
Each shim has a precisely defined thickness of 0.5 mm, allowing the cylinder head position to be adjusted in consistent increments.
Three Shims in the Set
The package contains 3 individual shims that can be used separately or combined according to the required spacing.
Stainless Steel
The shims are made from stainless steel without any additional surface treatment.
Practical Part for Gearbox Servicing
The set allows you to fine-tune the air seal system assembly using individual shims without modifying the cylinder head itself.
Technical Specifications
- Model: PODL-HV
- Type: cylinder head shims
- Material: stainless steel
- Surface treatment: none
- Thickness of one shim: 0.5 mm
- Number of shims: 3 pcs
Package Contents
- 3× cylinder head shim – 0.5 mm
Frequently Asked Questions (FAQ)
What Are Cylinder Head Shims Used For?
They are used to adjust the position of the cylinder head inside the gearbox. The number of shims used depends on the specific setup and the required spacing.
Can Multiple Shims Be Used at the Same Time?
Yes. Each shim is 0.5 mm thick, so combining them allows you to create spacing of 0.5 mm, 1.0 mm or 1.5 mm.
How Many Shims Should I Use?
The required number depends on the specific gearbox and components used. Start with one shim and, after assembly, check the correct cylinder head position and operation of the adjoining components. Add another shim only if further adjustment is actually required.
What Material Are the Shims Made From?
The shims are made from stainless steel without any additional surface treatment.
| Variants | 0,5 mm |
| Color | Silver |
| Body/receiver material | Metal |
| Počet kusů v balení | 3 |
