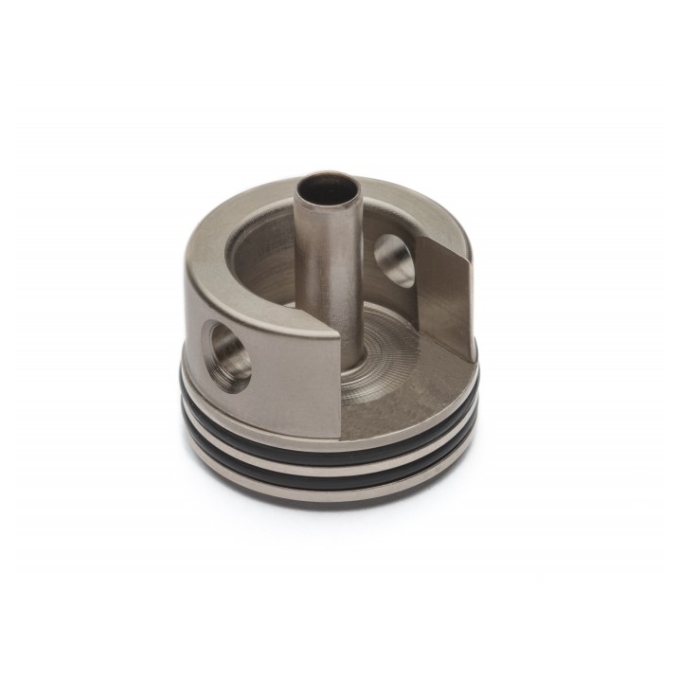

AirsoftParts Cylinder Head CLASSIC

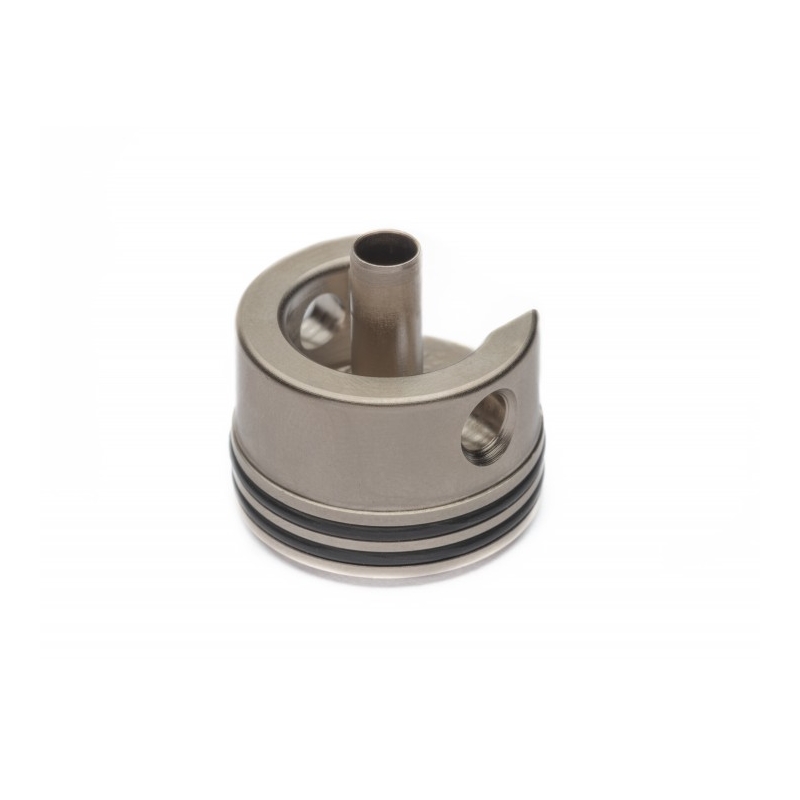

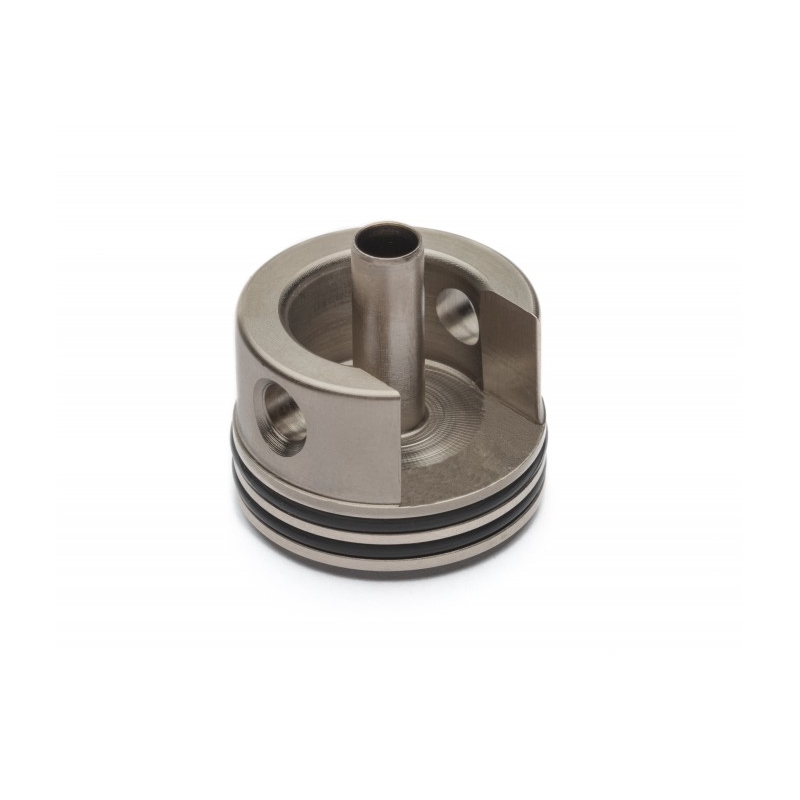

AirsoftParts CLASSIC cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. Two O-rings provide reliable sealing inside the cylinder, while the shaped 70 ShA impact pad cushions piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction for smooth nozzle movement.
Another product variants
SilverOn stock
25+ years of proven equipment and accessories.
Accessories
1,23 € In StockAirsoftParts CLASSIC Cylinder Head Spare O-ring (2 pcs)ASPARTS005
AirsoftParts replacement seals for the CLASSIC cylinder head (2 pcs) are a service set of O-rings designed to restore proper sealing of the cylinder head. Regular replacement of worn seals helps keep the air seal components in good condition. The manufacturer recommends replacement approximately every 10,000 BBs fired or once a year.
1,23 €Out of stock
12,64 € In StockAirsoftParts ULTRA LIGHT Piston HeadASPARTS009
AirsoftParts ULTRA LIGHT piston head is an extremely lightweight CNC-machined piston head made from TECAFORM (POM), weighing just 5.4 g. Its lightweight design with 9 front holes promotes effective O-ring sealing while reducing the moving mass of the piston assembly. It is designed for V2, V3 and V7 gearboxes with springs up to M130.
12,64 €In Stock
12,64 € In StockAirsoftParts DURAL 2013 Piston HeadASPARTS010
AirsoftParts DURAL 2013 piston head is a durable CNC-machined piston head made from EN AW 6012 T6 duralumin, designed for V2, V3 and V7 gearboxes with springs up to M170. It features pressure-assisted sealing through 9 front holes, a guide O-ring for centering inside the cylinder and an axial ball bearing that allows the spring to rotate more freely...
12,64 €In Stock
16,87 € In StockAirsoftParts AEG Ribbed Cylinder – Ported (200–400 mm)ASPARTS021
AirsoftParts ported cylinder is a stainless steel cylinder for AEGs with an inner barrel length of 200–400 mm, such as M4 or MP5. Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference.
16,87 €In Stock
2,92 € 5,03 € In Stock-42%AirsoftParts Duralumin NozzleASPARTS039
AirsoftParts duralumin nozzle is a precision CNC-machined AEG air seal component made from durable EN AW 6012 T6 duralumin. An internal O-ring seals the connection between the nozzle and cylinder head, helping to reduce unwanted air leaks. The standard version is available in various lengths and weighs only 0.8–1.3 g depending on the variant.
2,92 € 5,03 €In StockReduced price!
4,19 € In StockAirsoftParts AoE Shims for Piston Heads (0,5 mm)ASPARTS102
AirsoftParts AoE shims for piston heads are designed for adjustment of the Angle of Engagement (AoE) between the piston teeth and sector gear in an AEG gearbox. The set contains 3 stainless steel shims with a thickness of 0.5 mm, which are installed under the piston head. By combining them, the piston position can be adjusted in fine increments to change...
4,19 €In Stock
6,34 € In Stock4UANTUM High Viscosity Airtight Sealant SEAL - Transparent4UAD006
4UANTUM SEAL Silicone Grease for Sealing by 4UAD in a transparent finish. High-viscosity sealing grease. Ideal for sealing repairs and preventing leaks from damaged O-rings. Suitable for electric AEGs, manual, GBB, CO2, and HPA gas guns. Content: 15 ml. Easy application with a pen applicator.
6,34 €In Stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock
AirsoftParts CLASSIC Cylinder Head With Double Seal
AirsoftParts CLASSIC cylinder head is a CNC-machined component for AEG air seal systems made from EN AW 6012 T6 duralumin. It uses two O-rings of different diameters to seal the space between the head and cylinder. The first is slightly smaller to make inserting the head into the cylinder easier, while the second has a larger diameter and provides the main seal. The shaped impact ring with a hardness of 70 ShA is secured using mechanical locks and adhesive. Its stepped profile distributes contact with the piston head and, according to the manufacturer's design, reduces unwanted stress on the piston head during impact. The internal transition is rounded for smoother flow of compressed air towards the nozzle. The duralumin body features an electroless nickel-plated finish that creates a uniform, smooth surface with high wear and corrosion resistance. According to the manufacturer, the surface hardness after plating reaches 660–850 HV (58–63 HRC), while the low-friction surface promotes smooth nozzle movement. The head weighs 11.3 g, is designed for V2 and V3 gearboxes, and the maximum recommended spring is M150. Made in the Czech Republic.
Key Features
Double Seal With O-Rings
The two O-rings have different functions: the smaller one makes inserting the head into the cylinder easier, while the larger one provides the main seal between the cylinder head and cylinder.

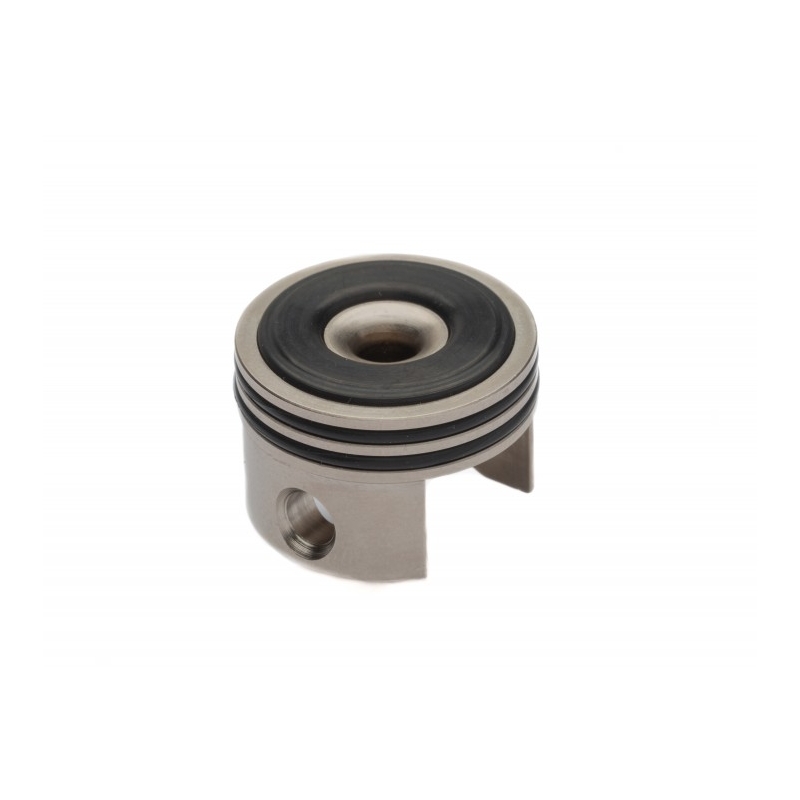

Shaped 70 ShA Impact Pad
The stepped impact ring with a hardness of 70 ShA helps cushion and distribute the impact of the piston head. It is secured to the head body using mechanical locks and adhesive.
Rounded Transition for Airflow
The internal section of the head uses a rounded transition towards the outlet, promoting smooth flow of compressed air from the cylinder into the nozzle.
Electroless Nickel-Plated Finish
Electroless nickel plating creates a uniform, hard and smooth surface layer with high wear and corrosion resistance. The low friction is also beneficial for nozzle movement.
CNC-Machined EN AW 6012 T6 Duralumin
The precisely machined duralumin construction weighs 11.3 g and is designed for V2 and V3 gearboxes. The manufacturer specifies a maximum recommended spring of M150.
Technical Specifications
- Designation: HV-CLAS
- Type: cylinder head for AEG
- Size: standard
- Material: EN AW 6012 T6
- Manufacturing: CNC machining
- Maximum recommended spring: M150
- Sealing: 2× sealing O-ring
- Surface finish: electroless nickel plating
- Surface hardness after plating: 660–850 HV (58–63 HRC)
- Impact pad: shaped stepped ring
- Impact pad hardness: 70 ShA
- Impact pad attachment: mechanical locks + adhesive
- Weight: 11.3 g
- Compatibility: V2 and V3 gearboxes
- Country of manufacture: Czech Republic
Frequently Asked Questions (FAQ)
Why Does the CLASSIC Cylinder Head Have Two Sealing O-Rings?
The O-rings have different diameters and functions. The first is slightly smaller for easier insertion of the head into the cylinder, while the second is larger and provides the main seal between the cylinder head and cylinder.
How Does the Shaped Impact Pad Work?
The stepped ring with a hardness of 70 ShA cushions and distributes the impact of the piston head. It is securely attached to the head body using mechanical locks and adhesive.
What Are the Benefits of Electroless Nickel Plating?
The electroless nickel-plated layer creates a hard, uniform and smooth surface with high resistance to wear and corrosion. The smooth surface also reduces friction as the nozzle moves over the cylinder head.
Which Gearboxes and Springs Is the Cylinder Head Designed For?
The manufacturer specifies compatibility with V2 and V3 gearboxes and a maximum recommended spring of M150. In higher-powered setups, it is important to properly select and adjust the other mechanically stressed gearbox components as well.
