EPeS CYMA M24 (CM.702) Sniper Upgrade Cylinder Set

EPeS Sniper Airseal Upgrade Set for CYMA M24 (CM.702)

Looking for a way to get the maximum accuracy, range, and quietness from your bolt-action sniper rifle? Want a ready-to-use, hand-tuned set made specifically for your gun? Searching for an easy upgrade that only requires a simple drop-in cylinder replacement? The EPeS Sniper Airseal Upgrade Set provides a full package of carefully designed and pre-assembled parts that significantly boost your rifle’s performance. It includes a tight CNC stainless steel cylinder with a sealed head and Sorbopad, a CNC spring guide with bearing and anti-vibration POM sleeve, a high-power M150 spring, and a CNC Variable Mass Piston (VMP) with a set of stainless and dural weights. By fine-tuning the piston mass, you can achieve quieter shots, more power, and tighter groupings with heavier BBs (Joule creep effect). The spring guide with bearing and sleeve reduces vibration and noise, while the Sorbopad protects the internals and extends their lifespan. Every set is individually tested at EPeS to ensure airseal, smooth operation, and low noise – giving you a fully assembled drop-in cylinder set.

Recommended Piston Weight Tuning

1. Select the BB weight you will be tuning for (e.g. 0.43 g, 0.49 g).
2. Test different weight combinations from lightest to heaviest and record the total piston weight.
3. For each weight, fire 3–5 shots and note average energy (Joules) and shot noise.
4. Choose the setup with the highest consistent energy and lowest deviation while keeping noise acceptable.
5. Verify the results in the field with hop-up engaged.

Key Features

• Complete CNC set:
  Stainless cylinder, CNC spring guide with bearing, VMP piston, CNC cylinder head with Sorbopad, and guiding elements.


• M150 spring:
  Optimized stiffness for higher power and consistent performance.


• Variable Mass Piston (VMP):
  Stainless + dural weights for precise energy and noise tuning.


• Spring guide with bearing & POM sleeve:
  Reduces spring vibrations and overall noise.


• Sorbopad on cylinder head:
  Absorbs piston impact, protects parts, and reduces shot noise.


• Tested at EPeS:
  Airseal, smoothness, and noise levels checked before shipment.

Technical Specifications & Compatibility

• Compatibility: CYMA M24 (CM.702)

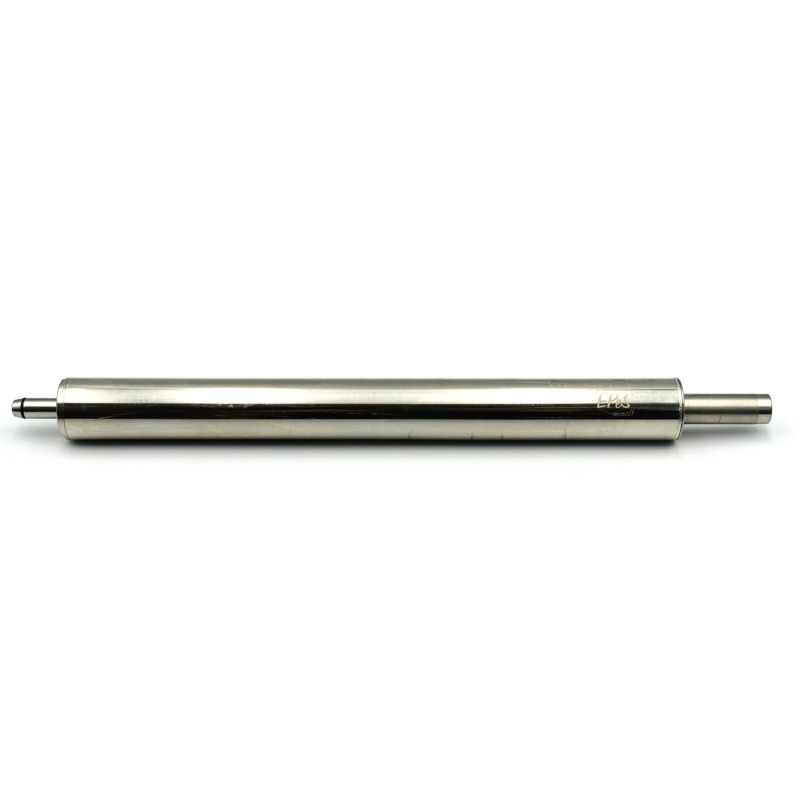

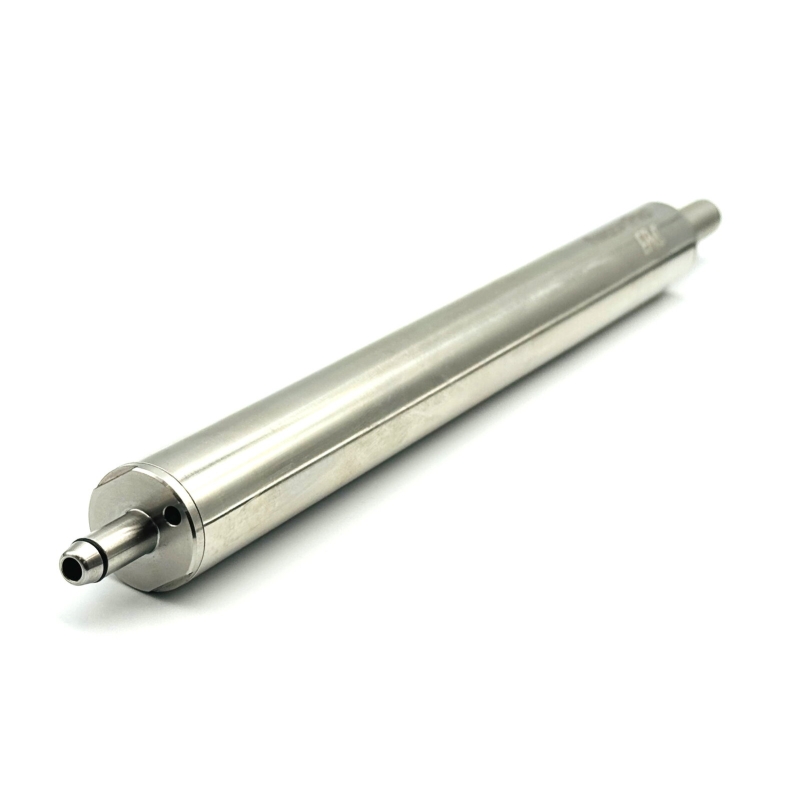

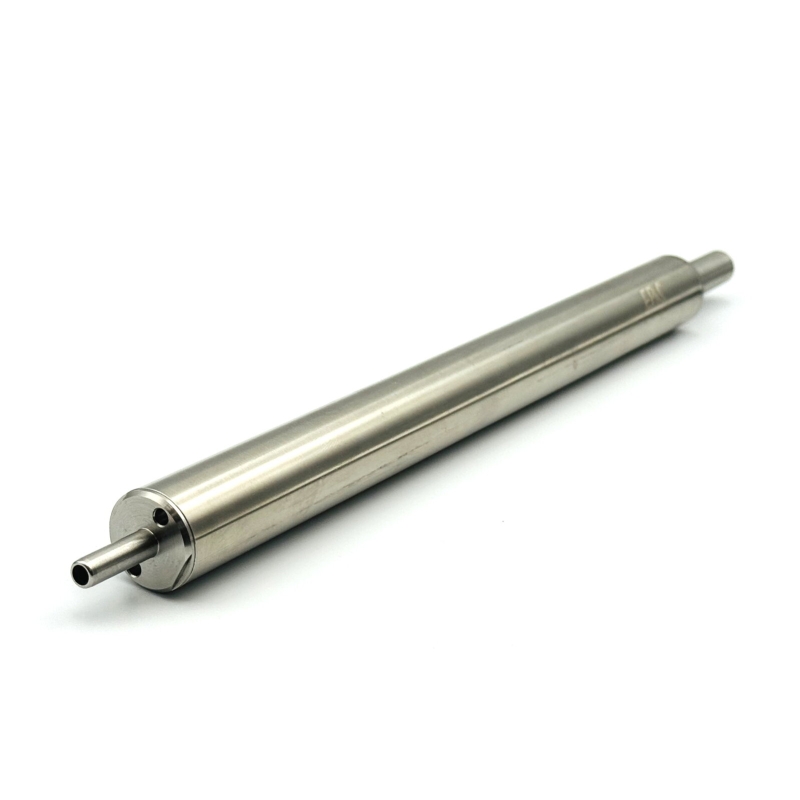

• Cylinder: CNC stainless steel

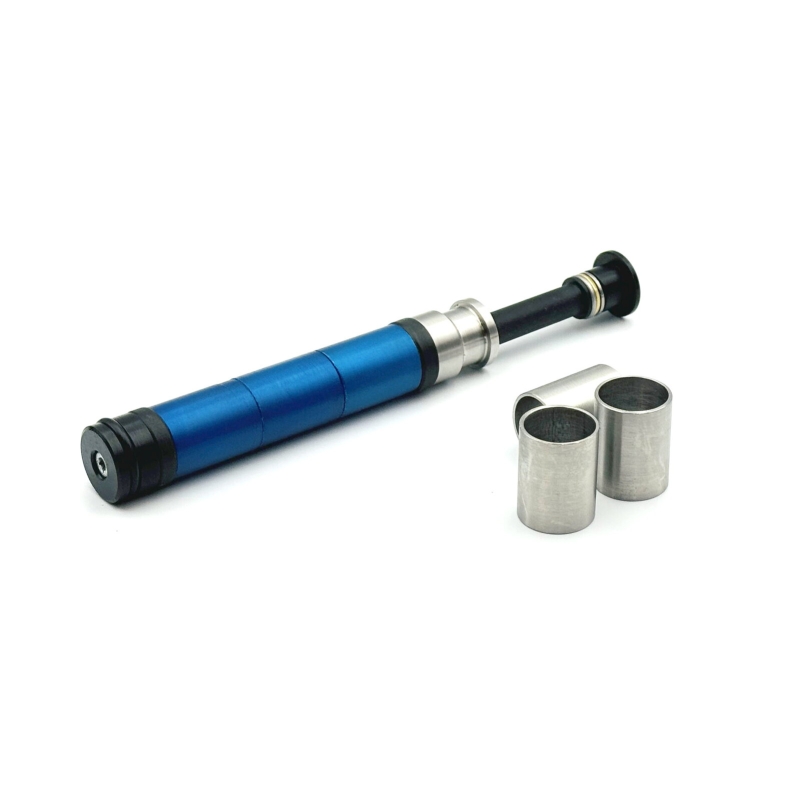

• Piston: CNC VMP with pre-installed stainless sleeves + dural weights (blue anodized)
• Spring guide: CNC with bearing & POM anti-vibration sleeve
• Spring: M150 (AirsoftPro or equivalent)
• Recommended BB weight: 0.43–0.48 g (depending on piston load)
• Performance (with max piston weight, in EPeS Custom rifle): 3.5 J with 0.48 g BBs

Package Includes

• CNC stainless cylinder
• CNC cylinder head with Sorbopad
• CNC VMP piston
• 4× stainless piston weights (pre-installed)
• 4× dural weights (blue)
• CNC spring guide with bearing & POM sleeve
• M150 spring
• Small parts & basic installation guide

Warnings

• This set requires advanced technical knowledge and experience with disassembly/reassembly of bolt-action airsoft rifles.
• Performance and noise strongly depend on the overall setup (barrel type, hop-up, sealing, tolerances, etc.).
• For maximum noise reduction, use a quality suppressor and correctly fitted guide rings.
• Installation should be done carefully or by a professional technician. Incorrect assembly may damage the rifle or parts – not covered by warranty.
• All sets are individually tested by EPeS.
• Tested with AirsoftPro Gen.3 CNC hop-up chamber, SHS 70° silicone bucking, Lambda 6.05 mm 500 mm inner barrel, AirsoftPro trigger system.
