ML CNC Hop-up Chamber 2.0 TDC for VSR - Silver

CNC Hop-Up Chamber 2.0 TDC for VSR

The 2.0 chamber by Maple Leaf delivers maximum accuracy for airsoft sniper rifles VSR. Thanks to precise CNC machining from aluminum alloy, it offers excellent durability and production accuracy.
Side-mounted arm, like in the original chamber, allows quick and precise hop-up adjustment, while the second adjustment option is through the TDC system directly above the chamber.
The TDC system (Top Dead Center) applies vertical pressure on the BB via the hop-up bucking nub. It optimally distributes pressure directly above the barrel window, unlike angled pressure arms. This allows players to achieve greater shooting accuracy and stronger hop-up effects, even with heavy BBs, for each shot.
Included CNC pressure arms for both side and TDC adjustment methods enhance BB flight stability and overall weapon performance. The CNC anti-double-feed stopper prevents double feeding, ensuring your rifle is always ready to fire.
The chamber is compatible with GBB/VSR hop-up buckings, allowing further customization. We recommend trying the Maple Leaf GBB Wonder and MR HOP buckings for maximum rifle range.

Notice

For TDC adjustment functionality, you need to manually drill a hole in the outer barrel directly above the chamber (must be perfectly vertical) or purchase an outer barrel with a pre-drilled TDC hole. Installation instructions are available in the video tutorial.

Maple Leaf CNC Chambers for VSR Variants

• VSR 1.0 - Classic pressure adjustment on the outer barrel using a steel lever, like the original VSR chamber.


• VSR 2.0 TDC - Variable pressure adjustment, either from the outer barrel like version 1.0 or via a TDC screw directly through the outer barrel above the chamber (requires drilling a TDC hole).

Key Features

• Precision CNC Construction
  Made from aluminum alloy for long-lasting durability and reliability.


• Variable Adjustment
  Adjustable on the outer barrel for quick control or via TDC screw above the chamber for precise vertical pressure, ideal for heavy sniper BBs (0.40+ g).


• Improved Performance
  Includes CNC pressure arms for enhanced accuracy and BB stabilization.


• Reliable Feeding
  CNC anti-double-feed stopper prevents feeding two BBs into the chamber.

Technical Specifications

• Material: CNC-machined aluminum
• Color: Silver
• Compatibility: VSR rifles (TM and clones) including Novritsch SSG10
• Designed for: GBB/VSR hop-up buckings and inner barrels

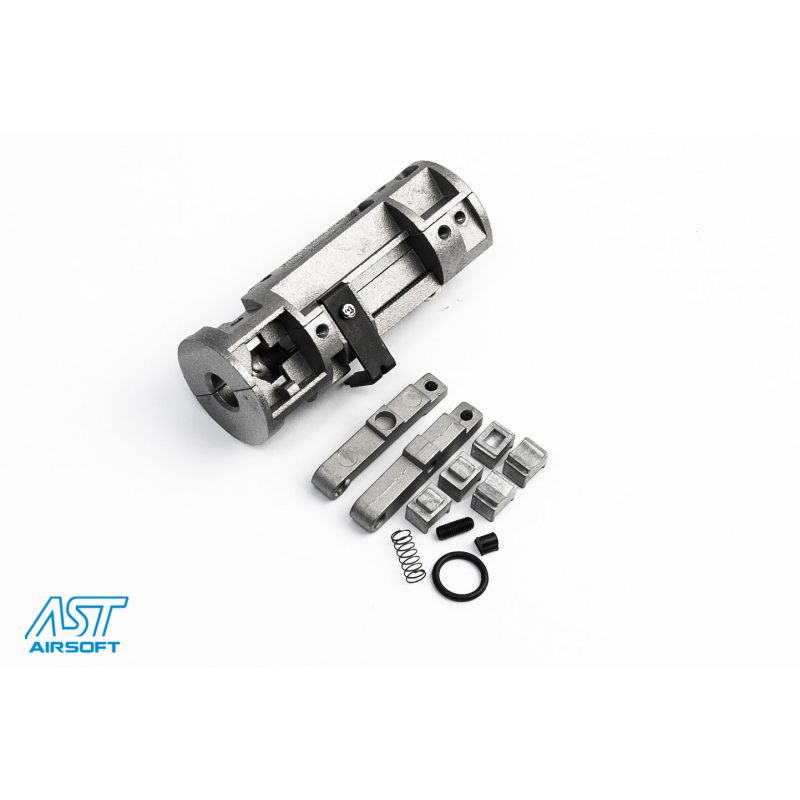

Package Contents

• CNC VSR 2.0 TDC Chamber
• Steel arm for side adjustment
• CNC hop-up pressure arm for side adjustment
