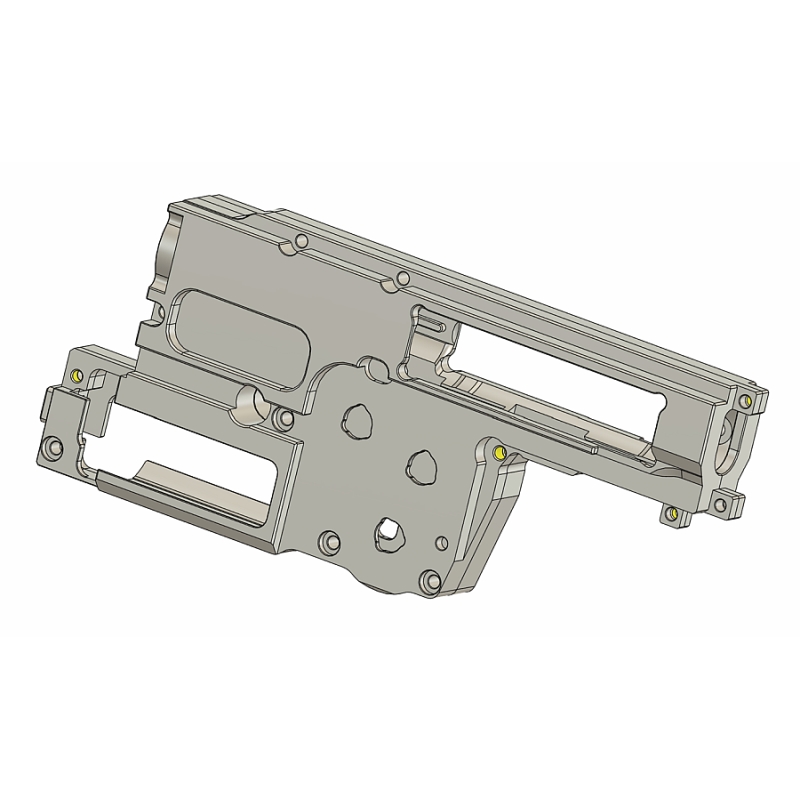

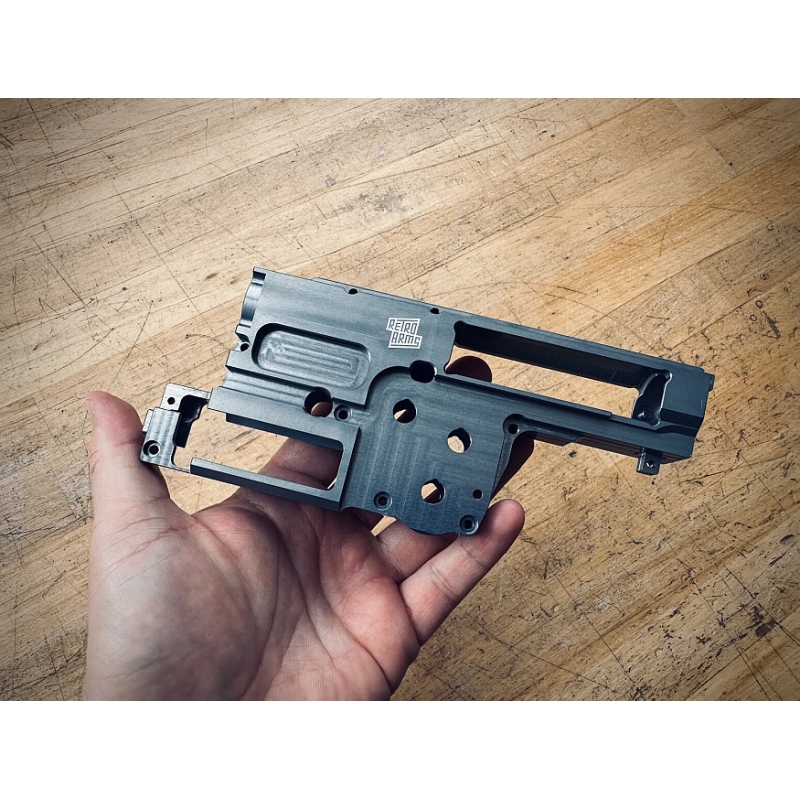

RetroArms CNC Gearbox P90 (V6) QSC, 8mm - Black

CNC Gearbox by RetroArms

The CNC gearbox V6 QSC is designed for P90 and other airsoft replicas using the V6 gearbox. It's made from aircraft-grade aluminum EN AW 7075 T651, which offers greater strength than common structural steel, far surpassing regular zinc alloy gearboxes. The key advantage is the QSC spring quick change, allowing the spring to be replaced with a hex key without disassembling the gearbox. When installing, ensure the spring guide is properly secured to avoid misalignment and damage (ideally used with the RetroArms QSC screw, sold separately).
Thanks to CNC machining, this gearbox features precise dimensions and maximum compatibility with Tokyo Marui standard internals. Installation requires advanced skills due to differences between replica manufacturers. It's not only suitable for high-power springs but also increases reliability and longevity in standard or DSG/TSG setups.

Upgrades in the 2025 Version

1. Improved bevel gear alignment
   Slight adjustment of gear positions for better motor engagement.


2. Extended nozzle travel
   Feeder arm allows 0.3 mm more forward movement for better feeding and shorter nozzles.


3. Updated cylinder seat
   Now rests on 8 contact points for easier installation and compatibility.


4. Optimized ANTIROT bearing seat
   Grooves added for glue or anti-rotation bearings.


5. Increased front radius
   Improved durability against cracks when using strong springs.


6. Redesigned piston rails
   Geometry optimized to increase gearbox and piston life.


7. Piston inspection ports
   New ports for checking piston position while adjusting AOE.


8. Refined gear spacing area
   Improved compatibility with more gear sets.


9. Added catch surface for COMPRING anti-reversal latch
   New mounting point for more stability and performance.


10. Wider gear compatibility
    Updated shape allows more gear options without modifications.


11. Enhanced surface finish
    Improved assembly smoothness and extended durability.

Key Features

• Made from EN AW 7075 T651
  Extremely strong and durable material for long life.


• Quick spring change with QSC
  Easily adjust power without opening the gearbox.


• Precision CNC machining
  Perfect fit and high compatibility.


• Reinforced front section
  Withstands high tension spring setups.


• Optimized wiring paths
  Improved layout reduces contact with moving parts.

Technical Specifications

• Model: AEG gearbox V6 (P90 TM standard)
• Type: Full
• Bearing hole diameter: 8 mm
• Material: CNC-milled EN AW 7075 T651 aluminum
• Version: 2025+

Package Includes

• CNC gearbox V6 (P90) QSC
• Screw set
• QSC spring guide

Warnings

• Do not use cylinder heads with rubber dampers (e.g., MAXX, FPS). These can damage mounting pins. Rubber can be removed and replaced with spacers.


• Maximum screw torque: 1.2 Nm. Threadlocker with medium strength recommended.


• Bearing holes are 0.02 mm undersized to prevent spinning; apply glue to seat bearings (avoid contact with bearing face).


• Gearbox centering in replica body is crucial. Professional skills required for correct setup: shimming, AOE, gear alignment, wiring, feeding, nozzle & hop-up tuning.


• Some replicas may require custom spring guides or modifications for proper fit.
