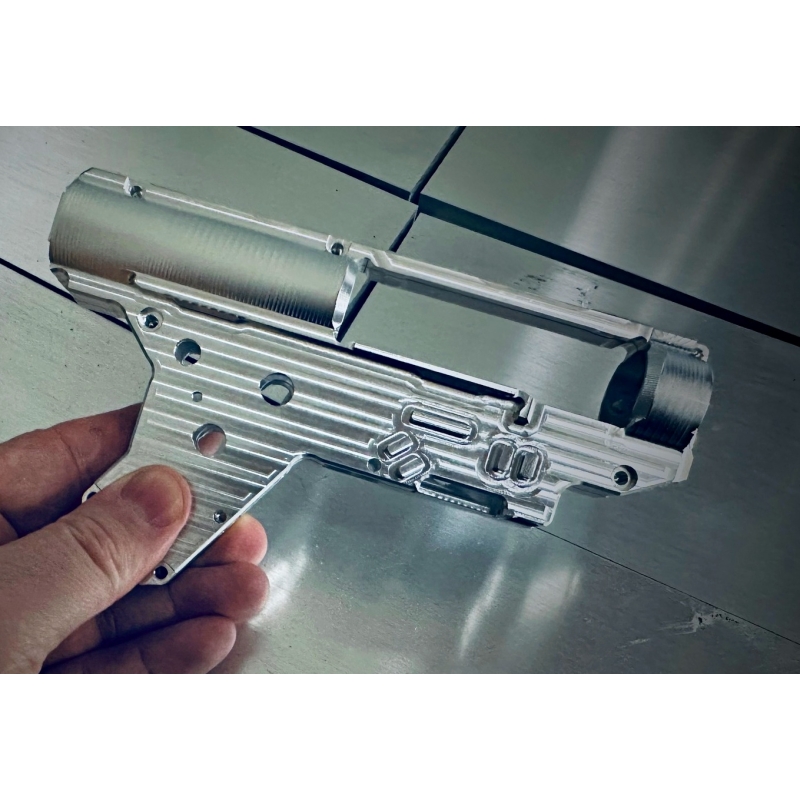

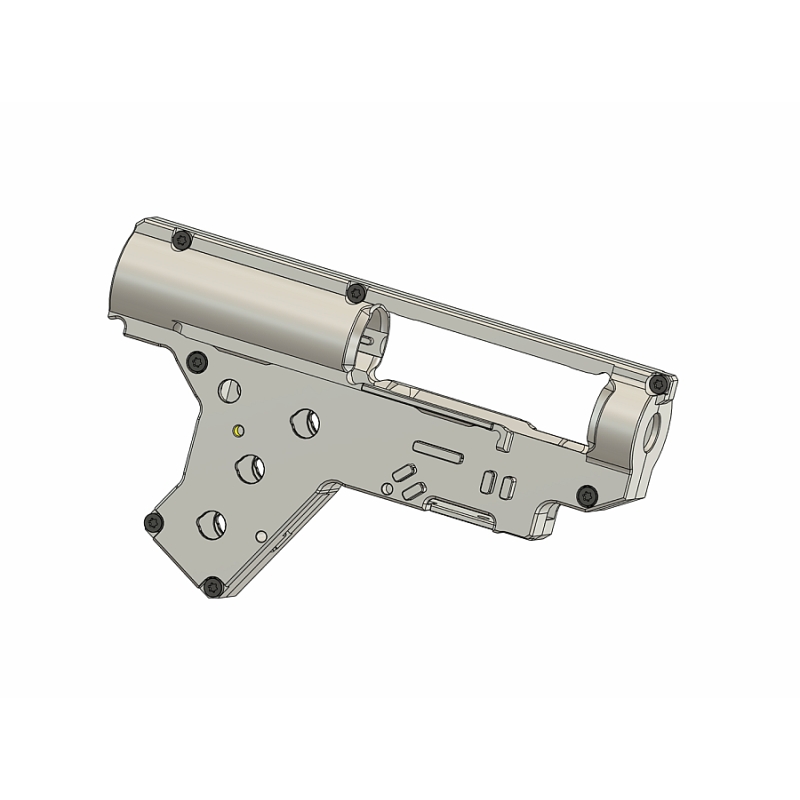

RetroArms ASG CZ Scorpion EVO 3 CNC Gearbox
RetroArms CNC gearbox for airsoft AEG rifles ASG CZ Scorpion EVO 3 is an essential upgrade part manufactured from aircraft-grade aluminum EN AW 7075 T651 with strength exceeding standard steel. It features a QSC quick spring change system and includes not only the shell but also the spring guide and screws. Designed for all ASG CZ Scorpion EVO models. Bearing holes are 8 mm.
For more than 25 years, we know what you like about airsoft.
Accessories
15,22 € In StockRetroArms CNC Low Profile Plain Bearings (8 mm)6843
RetroArms CNC Low-Profile 8 mm Plain Bearings are manufactured by precision CNC turning from high-quality 90MnCrV8 (1.2842) steel and heat-treated to a hardness of 58 HRC. The low-profile design is particularly suitable for V2 gearboxes, where standard bearings may interfere with the selector plate. The package contains 6 bearings.
15,22 €Out of stock
50,75 € In StockASG ECU Processor Unit with Wiring for CZ Scorpion EVO 3: ASG
ASG127
ECU Processor Unit with Wiring for CZ Scorpion EVO 3 by ASG. Complete electronic control unit including wiring. Includes MOSFET, microswitch, and gear position detection. New one-piece design for improved durability and reliability. Upgraded T-Dean battery connector increases electrical efficiency. Original GE1-1 part – designed for CZ Scorpion EVO 3...
50,75 €On the way
123,70 € In StockJeffTron LEVIATHAN ASG EVO 3 Optical + Anti-Reversal Latch: JeffTron
JT-LEV-S3
Leviathan ASG EVO 3 Optical control unit by JeffTron with front-wired cable. For ASG CZ Scorpion EVO 3 A1 gearbox (all versions including 1st generation). Bluetooth programming via JeffTron app (iOS / Android). Includes CNC anti-reversal latch for pre-cocking. Also ready for brushless motors. New configuration options for each selector position.
123,70 €In Stock
4,23 € In StockASG CZ Scorpion EVO 3 A1 Tappet Plate - Black: ASG
ASG277
Nozzle Tappet Plate for CZ Scorpion EVO 3 A1 by ASG in black. Original replacement part for AEG gearboxes in ASG CZ EVO. Polycarbonate construction for high durability. 1:1 replacement for the original tappet plate.
4,23 €On the way
23,26 € In StockEPeS Cylinder head AEG Mk.II uni V2/3 - Short - 70sh: EPES
E301-S-70
Revolutionary upgrade part for AEG weapons by EPeS! CNC metal cylinder head MK.II for gearboxes V2/3 in the short length for nozzles up to 20 mm. The cylinder head has retention notches to limit play at the front of the gearbox, helping to solve feeding problems. Impact rubber hardness 70sh to AEG M130 springs!
23,26 €In Stock
9,30 € In StockNozzle for ASG EVOIII (AEG) - Sharp edges: EPES
E322-SHARP
CNC machined dural EPeS HET nozzle will blow away the maximum from your ASG CZ EVO 3A1! Sharp Edges Front for perfect sealing between the nozzle and rubber, o-ring for sealing on the cylinder head nose, and excellent smoothness thanks to the H+PTFE surface treatment. No Stress, be EPeS!
9,30 €Out of stock
31,29 € In StockCNC Aluminum Advanced Speed Trigger (Style D) (Black) for EVO: MAXX
MX-TRG020SDB
Introducing the CNC Aluminum Advanced Speed Trigger for EVO! Engineered to elevate your ASG CZ Scorpion EVO-3 A1 Airsoft Rifle experience, this exceptional trigger ensures rapid response, a seamless trigger pull, and unwavering consistency.
31,29 €In Stock

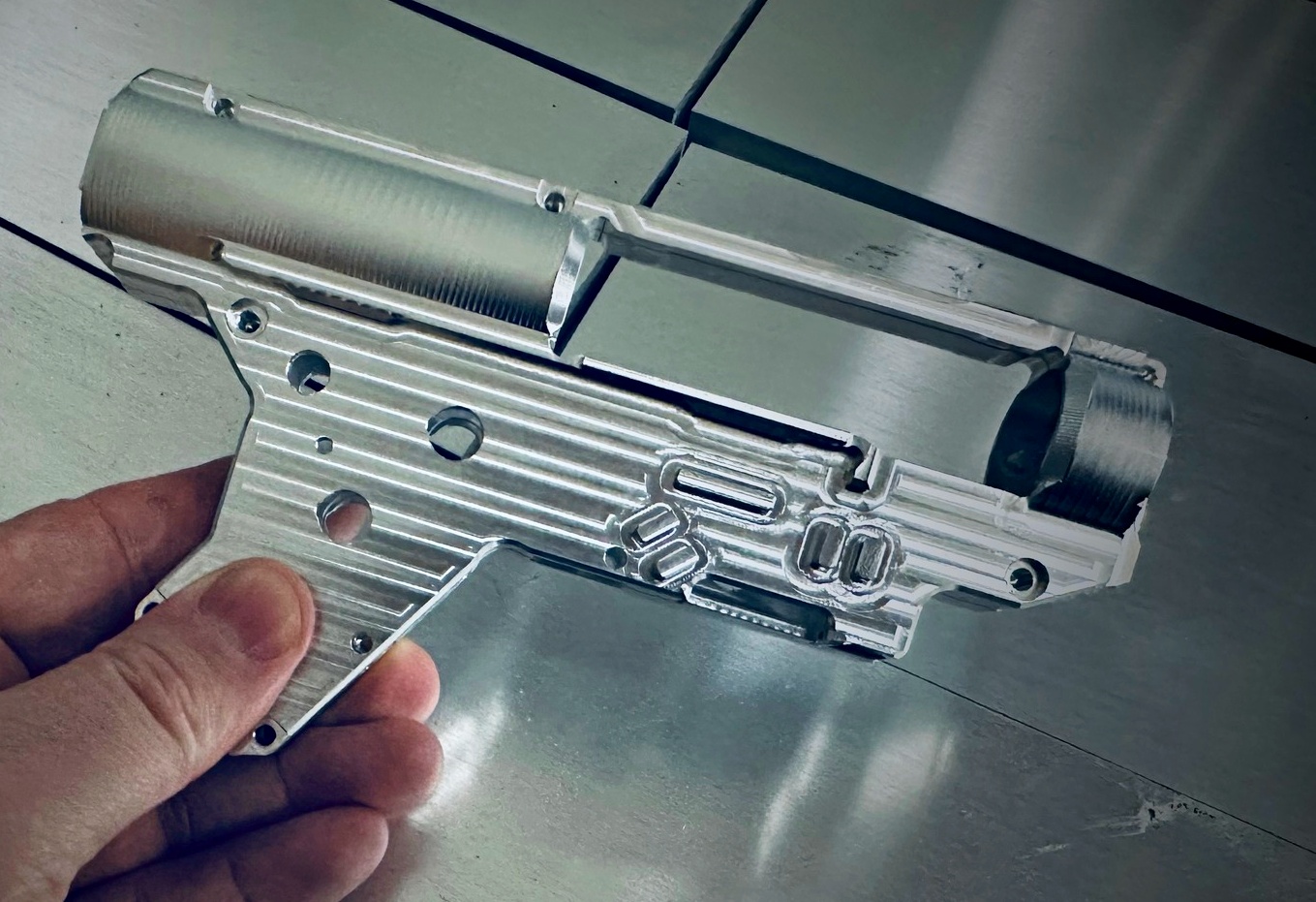

RetroArms CNC Gearbox for ASG CZ Scorpion EVO 3
RetroArms CNC upgrade gearbox for the ASG CZ Scorpion EVO 3 platform delivers outstanding strength and long-term reliability even with stronger springs. The shell is CNC machined from a single block of EN AW 7075 T651 aluminum, eliminating weak points typical for cast alloy gearboxes. The design is dimensioned for high-power setups, but its main benefit is improved stability, more precise gear alignment, and extended service life under standard and heavy load. The QSC system allows quick spring changes without full gearbox disassembly. Installation requires advanced technical skills, including gear shimming, AOE adjustment, correct motor engagement, and proper centering of the gearbox inside the receiver. This is not a plug-and-play replacement.
Key Features of RetroArms CNC Gearbox
Technical Specifications
- Model: AEG gearbox ASG CZ Scorpion EVO 3
- Version: 2025+
- Material: CNC EN AW 7075 T651 aluminum
- Bearing Hole Diameter: 8 mm (AntiRot holes)
- Compatibility: ASG CZ Scorpion EVO 3 A1 (all versions)
- Compatible Electronics: ASG EVO control units, JeffTron Leviathan EVO
- Recommended Torque: Max 1.2 Nm
Package Contents
- RetroArms CNC gearbox ASG CZ EVO 3 QSC
- Screw set
- QSC spring guide
Warning
- Do not use cylinder heads with rubber front buffers (MAXX, FPS Softair), as damage to pins may occur.
- Bearing holes are 0.02 mm smaller for tight fit; standard bearings should be glued.
- Installation requires advanced technical experience and correct gearbox centering.
Frequently Asked Questions (FAQ)
Which Airsoft Guns Is the RetroArms CNC Gearbox Designed For?
The gearbox is designed for ASG CZ Scorpion EVO 3 AEG airsoft guns and is compatible with all models in this series.
Is the Gearbox Designed for 8mm Bearings?
Yes, the gearbox is designed for 8mm bearings. The bearing holes are intentionally 0.02 mm smaller to provide a tighter fit and help prevent the bearings from rotating. When using standard bearings, the manufacturer recommends securing them with a suitable adhesive.
Can a Cylinder Head With a Rubber Buffer Be Used?
No. The manufacturer does not recommend using cylinder heads with a rubber buffer on the front, such as some MAXX or FPS Softair models. The buffer may cause damage to the cylinder head locating pins.
Is the RetroArms CNC Gearbox a Plug-and-Play Replacement?
No, installation requires advanced technical experience. During assembly, the gears must be properly shimmed, the AOE and motor engagement must be adjusted, and the gearbox must then be correctly centred in the gun body. We therefore recommend having it installed by an experienced airsoft technician.
| Color | Silver |
| Body/receiver material | Metal |
| Gearbox version | EVO |
| Bearings (mm) | 8 (mm) |
| Spring guide | Metal |
