RetroArms CNC VFC V2 QSC Gearbox (8 mm)

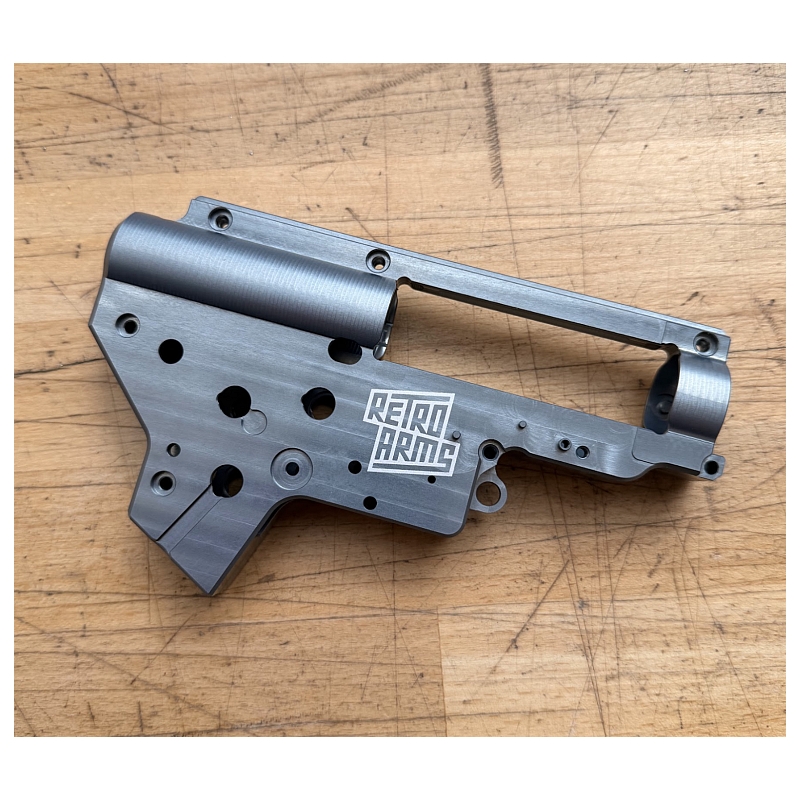

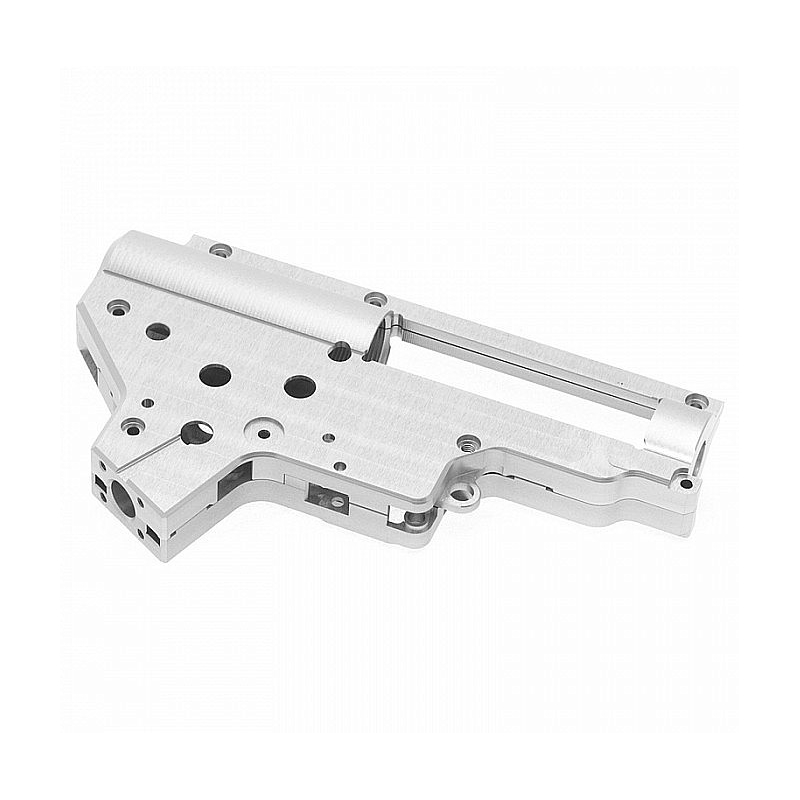

RetroArms CNC V2 gearbox (8 mm) for VFC M4 / AR15 QSC is a reinforced foundation for VFC AEG airsoft guns with a V2 gearbox. The precision CNC-machined body made from 7075 T6 aluminium alloy is designed for 8 mm bearings and features a QSC quick spring change system. The package includes mounting hardware and a QSC spring guide with a ball bearing. It does not fit standard TM-spec M4 rifles.
For more than 25 years, we know what you like about airsoft.
RetroArms CNC V2 gearbox for VFC with quick spring change
RetroArms CNC V2 gearbox for VFC is a durable replacement for the original gearbox shell, designed for upgrading and building compatible VFC M4 / AR15 AEG airsoft guns. The body is CNC-machined from 7075 T6 aluminium alloy, providing a strong and precisely manufactured construction suitable even for more demanding builds. The gearbox is designed for 8 mm bearings and uses the QSC (Quick Spring Change) system, which makes it easier to replace the spring without completely disassembling the gearbox. The package also includes mounting screws and a QSC spring guide with a steel ball bearing, which allows the spring to rotate more freely during compression and helps reduce unwanted twisting. This version is specifically designed for VFC, although manufacturing tolerances of the particular gun and internal components must still be taken into account when building the assembly. The manufacturer explicitly warns that a MAXX Model cylinder head must not be used with this gearbox. Installing a CNC gearbox requires correct assembly, shimming and adjustment of the internal components, so it should not be considered a universally Plug & Play part without first verifying the specific build.
Key features
CNC-machined construction
The gearbox shell is manufactured using precision CNC machining, allowing accurate machining of critical mounting and contact surfaces.
7075 T6 aluminium alloy
The gearbox is made from strong 7075 T6 aluminium alloy, which is well suited to mechanically stressed upgrade parts for airsoft guns.
QSC quick spring change
The integrated QSC system makes spring replacement easier and provides access to the spring without completely disassembling the entire gearbox.
For 8 mm bearings
The design is prepared for 8 mm bearings. The gear bearings themselves are not specified as being included in the package contents.
Version designed for VFC
This V2 gearbox version is specifically designed for compatible VFC AEG airsoft guns. During installation, the gearbox must always be correctly matched to the gun's receiver and the internal components used.
Technical specifications
- Type: CNC VFC V2 QSC gearbox
- Material: 7075 T6 aluminium alloy
- Manufacturing: CNC machining
- Bearing hole diameter: 8 mm
- Spring change system: QSC
- Spring guide: QSC with steel ball bearing
- Compatibility: VFC AEG guns with a V2 gearbox
- Incompatible part: MAXX Model cylinder head
Package contents
- 1× RetroArms CNC V2 gearbox (8 mm) for VFC QSC
- 1× QSC spring guide with steel ball bearing
- Set of mounting screws
Frequently asked questions (FAQ)
Which airsoft guns is this gearbox designed for?
This version is designed for compatible VFC AEG airsoft guns using a V2 gearbox. Due to differences between individual models and manufacturing tolerances, we recommend verifying compatibility with the specific gun before starting the build.
What bearings does the gearbox use?
The gearbox is designed for 8 mm bearings. These are the bearings for the gears; do not confuse them with the ball bearing included as part of the supplied QSC spring guide.
What are the benefits of the QSC system?
QSC, or Quick Spring Change, makes accessing and replacing the spring easier, as the gearbox does not need to be completely disassembled just to replace the spring.
Can a MAXX Model cylinder head be used?
No. The manufacturer explicitly states that a MAXX Model cylinder head must not be used with this gearbox. A different compatible cylinder head must therefore be selected for the build.
| Variants | VFC |
| Color | Black |
| Body/receiver material | Metal |
| Gearbox version | V2 - custom |
| Bearings (mm) | 8 (mm) |
| Spring guide | Metal |
