AA AAP-01 GBB Hammer Rotor (Part 54)

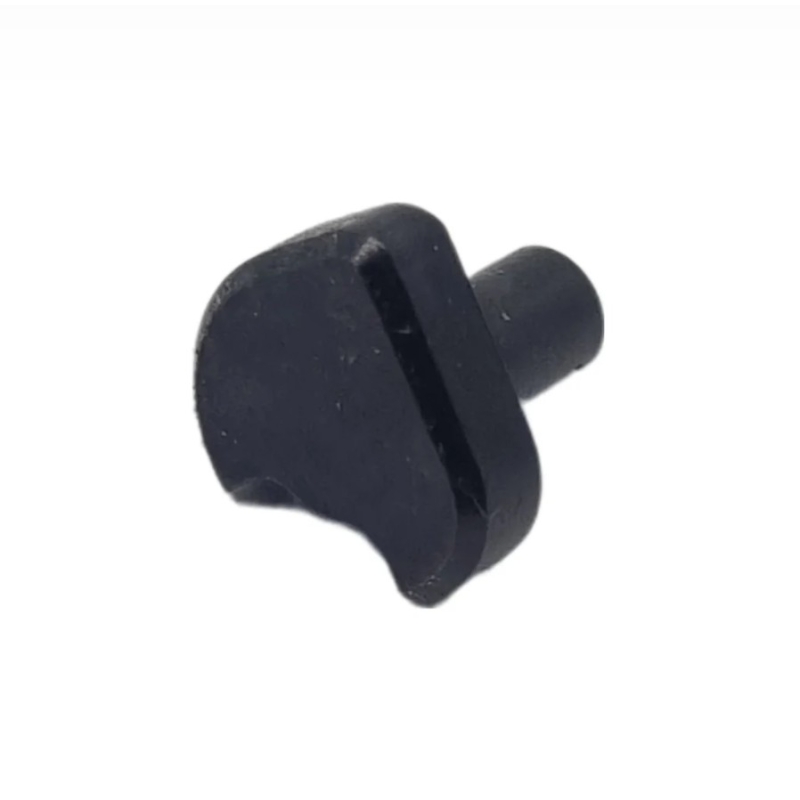

Action Army AAP-01 GBB Hammer Rotor – part no. 54

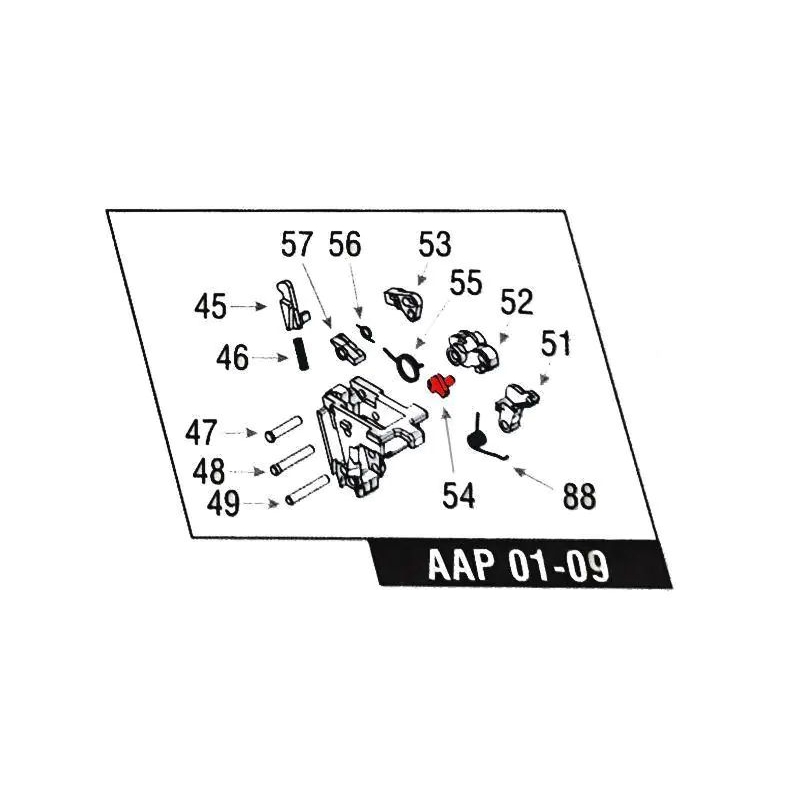

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.The Action Army AAP-01 Hammer Rotor is an original replacement component of the GBB pistol hammer mechanism. In the exploded parts diagram, it is listed as part no. 54 under catalogue designation AAP01-09-54 and is referred to in English as the Hammer Rotator or Hammer Roller. The rotor is positioned directly on the upper part of the hammer and forms the contact point between the hammer and the moving bolt assembly. During recoil, the bolt must push the hammer down and re-cock the trigger mechanism. The rotor reduces friction during this movement and allows the bolt to overcome the resistance of the hammer more smoothly. A correctly functioning rotor therefore contributes to smooth cycling of the GBB mechanism and reduces unnecessary mechanical stress on the contact surfaces. It is also a mechanically stressed component that may gradually develop wear, deformation of the contact surface or other mechanical damage. A damaged rotor can increase resistance during bolt movement and contribute to problems with its return, cycling or cocking of the hammer. Replacing part no. 54 is therefore suitable when repairing a damaged mechanism or restoring a heavily used Action Army AAP-01 pistol.

Key features of the Action Army AAP-01 Hammer Rotor

Original part no. 54

Replacement component AAP01-09-54 according to the exploded parts diagram of the Action Army AAP-01 pistol.

Contact between the bolt and hammer

The rotor is positioned on the upper part of the hammer and forms the contact surface for the bolt mechanism as it moves during the firing cycle.

Smoother bolt movement

It helps reduce friction and resistance when cocking the hammer, allowing the bolt to move over the mechanism more smoothly during recoil.

Important for correct cycling

The correct shape and condition of the rotor help prevent excessive friction or the bolt catching on the hammer mechanism.

Replacement part for AAP-01 repairs

Designed to replace the original rotor in the event of wear, deformation or mechanical damage.

Original Action Army replacement part

Hammer Rotor for the Action Army AAP-01 GBB pistol.

Technical specifications

• Manufacturer: Action Army
• Type: Hammer Rotor / Hammer Roller
• Part number in exploded diagram: 54
• Catalogue designation: AAP01-09-54
• Location: Upper part of the hammer
• Function: Reduces friction between the bolt and hammer mechanism
• Designed for: Action Army AAP-01 GBB pistol

Package contents

• 1× Action Army AAP-01 GBB Hammer Rotor – part no. 54 (AAP01-09-54)

Frequently asked questions from our store

How can I tell if the rotor is worn or damaged?

The rotor may show an worn or deformed contact surface, grooves, flattening or other mechanical damage. At the same time, resistance may increase as the bolt moves over the hammer.

Can a damaged rotor cause cycling problems?

Yes, it can be one of the causes. If the bolt does not move smoothly over a damaged or deformed rotor, it may catch, fail to complete the full cycle or fail to return correctly to the forward position. Similar symptoms can also be caused by other parts of the GBB mechanism, so it is advisable to inspect the entire hammer and bolt mechanism before replacing the rotor.

Does the condition of the rotor affect gas consumption?

Indirectly, yes. Excessive friction between the hammer and bolt increases mechanical resistance during cycling, so part of the blowback system's energy must be used to overcome this resistance. However, high gas consumption itself can have many other causes, such as a leaking magazine, the condition of the seals, temperature or problems with other parts of the GBB mechanism.

Can I replace the Hammer Rotor at home?

Replacement requires disassembling the AAP-01 hammer mechanism and correctly assembling the related parts and springs. If you do not have experience servicing GBB pistols, we recommend having the installation carried out by an experienced airsoft technician.
