Delta Armory M4 / AR15 CQB-R CHARLIE – Black

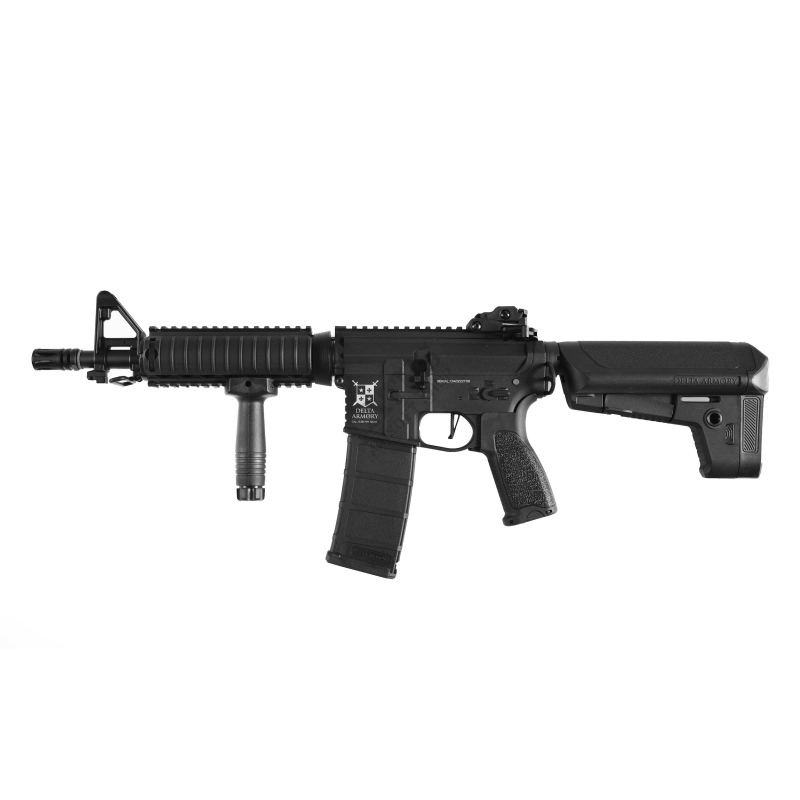

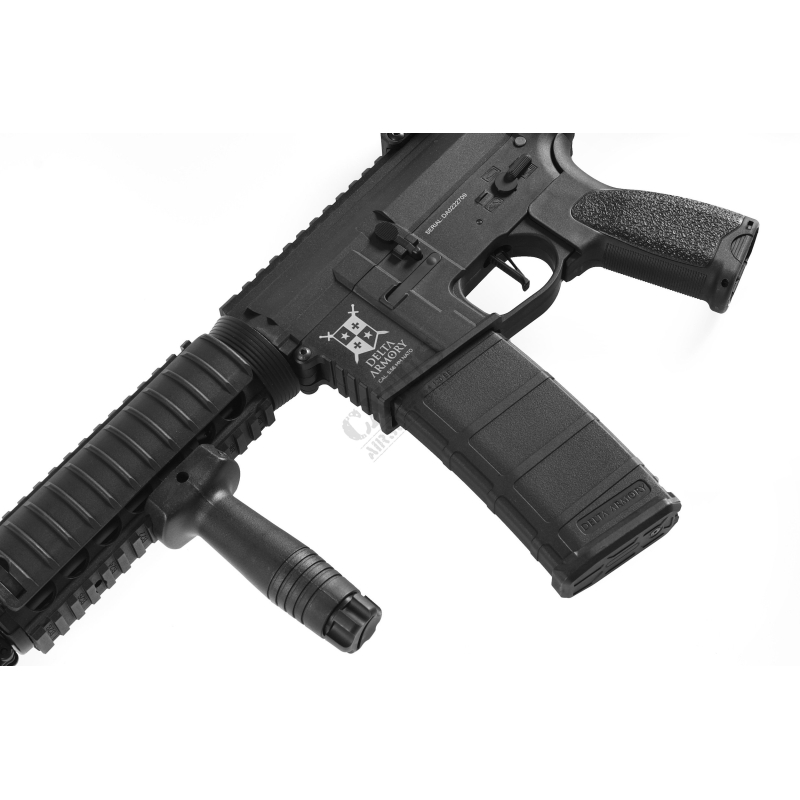

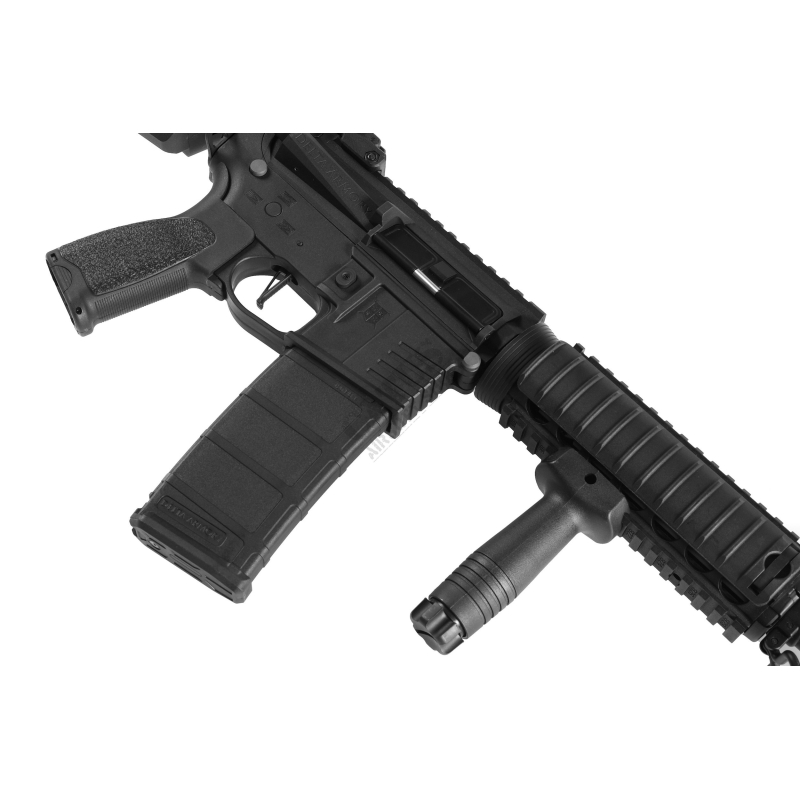

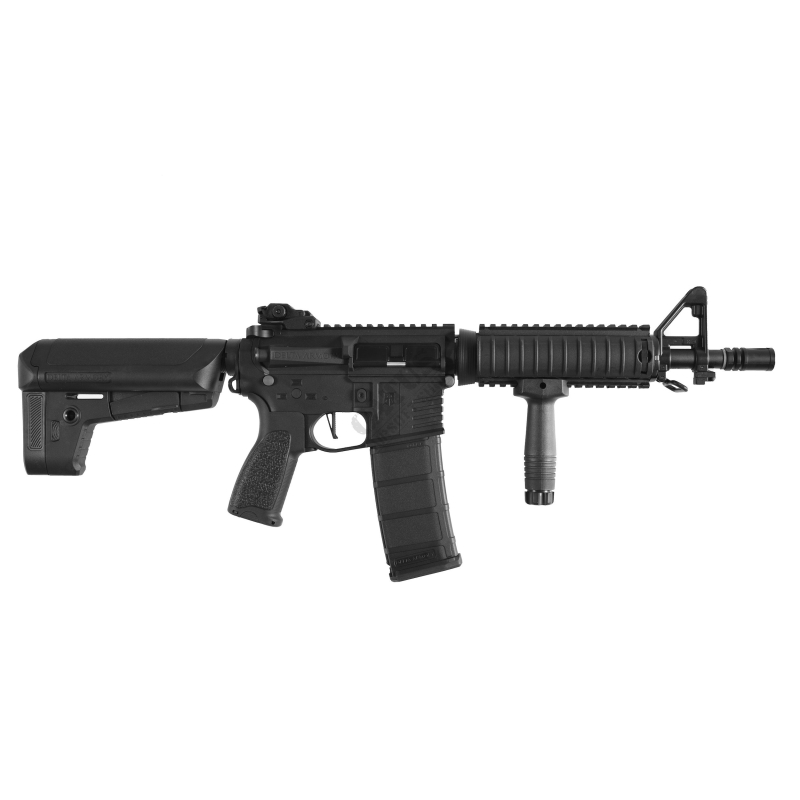

Delta Armory AR15 CQB-R CHARLIE

Delta Armory AR15 CQB-R CHARLIE delivers a balanced combination of price, performance, and reliability. Inside, you'll find a reinforced V2 gearbox capable of handling springs around M120 over the long term, along with proven internal components such as an SHS piston with full steel teeth, metal gears, and 7 mm plain bearings. Accuracy is ensured by a 6.03 mm precision inner barrel and a rotary hop-up chamber that maintains its setting even during full-auto fire. A major advantage is the QRS Gen2 system, allowing you to change the spring within minutes without disassembling the rifle. The durable ABS polymer body is lightweight yet sturdy and is complemented by a polymer RIS handguard. Other notable features include a modern CNC trigger and a retractable stock with enough room for larger Crane-type batteries. The Charlie series uses traditional mechanical trigger contacts. If you plan to use powerful 11.1V batteries long-term, installation of an ETU control unit such as JeffTron Leviathan V2 / Scylla V2 or Perun Hybrid V2, or at least a MOSFET, is required.This professional product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.

Key Features of the Delta Armory CHARLIE Rifle

Technical Specifications

• Weapon Type: AEG (electric)
• Length: 700–785 mm
• Inner Barrel Length: 275 mm
• Weight: 2480 g
• Muzzle Velocity: Approx. 115 m/s (with 0.20 g BB)
• Gearbox: V2 (TM standard)
• Hop-Up: Yes, adjustable (rotary)
• Fire Modes: Semi-auto, full-auto
• Bearings: 7 mm sleeve bearings
• Piston: SHS reinforced (14 steel teeth)
• Barrel Thread: 14 mm CCW
• Receiver Material: ABS polymer
• Handguard: RIS (polymer)
• Variant: CHARLIE
• Quick Spring Change: Yes (QRS Gen2)
• Motor: Standard long-type
• Magazine Capacity: 120 BBs
• Recommended Battery: Li-Pol / Li-Ion 7.4 V (not included)
• Connector Type: Mini Tamiya

Package Contents

• Delta Armory M4 / AR15 CQB-R CHARLIE AEG rifle
• DMAG mid-cap magazine (120 BBs)
• RIS handguard covers (2 pcs)

Warning

• We recommend using a 7.4 V Li-Pol battery for optimal performance and service life.
• For long service life, regularly clean the barrel and maintain the hop-up unit.
• Designed for airsoft use only. Always wear eye protection.
• When using an 11.1V battery, a MOSFET or ETU unit must be installed.
• Some manufacturers' springs are significantly overrated (for example, an SHS M120 spring may perform similarly to an M130–140 spring), and their actual power may exceed the gearbox's declared durability. We recommend using quality M120 springs to avoid potential damage caused by springs that do not match their rating.
• When installing a progressive spring, make sure the end with the tighter winding is positioned on the spring guide facing outward from the gearbox.
• Never store the rifle with a battery connected.
