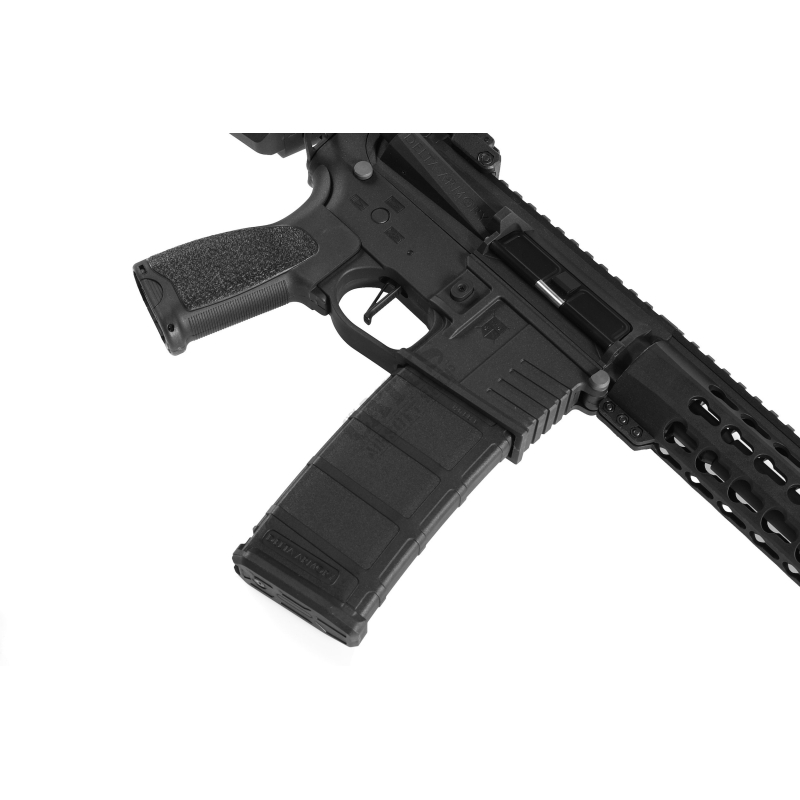

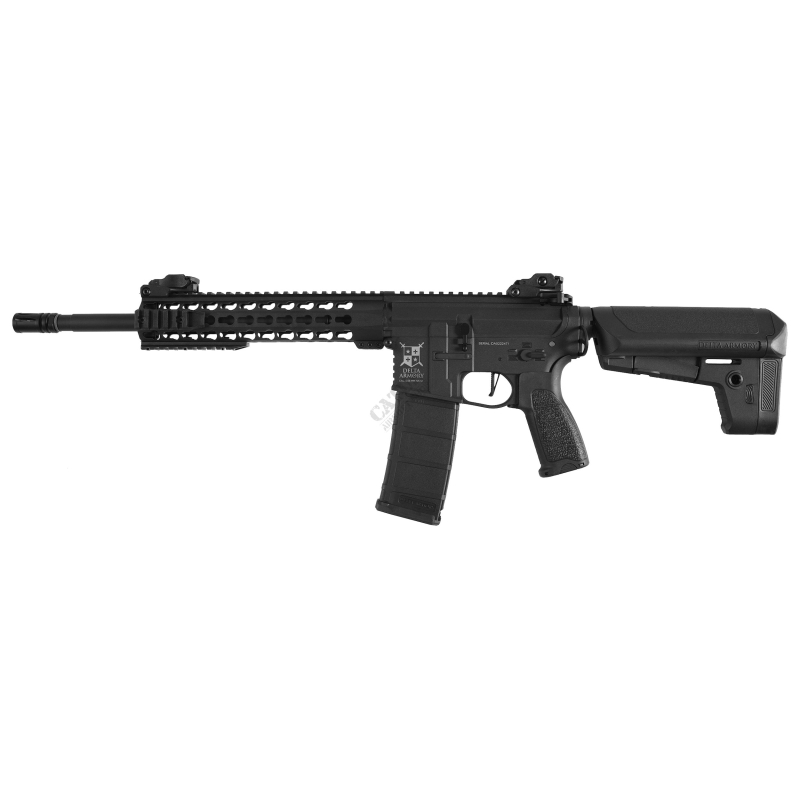

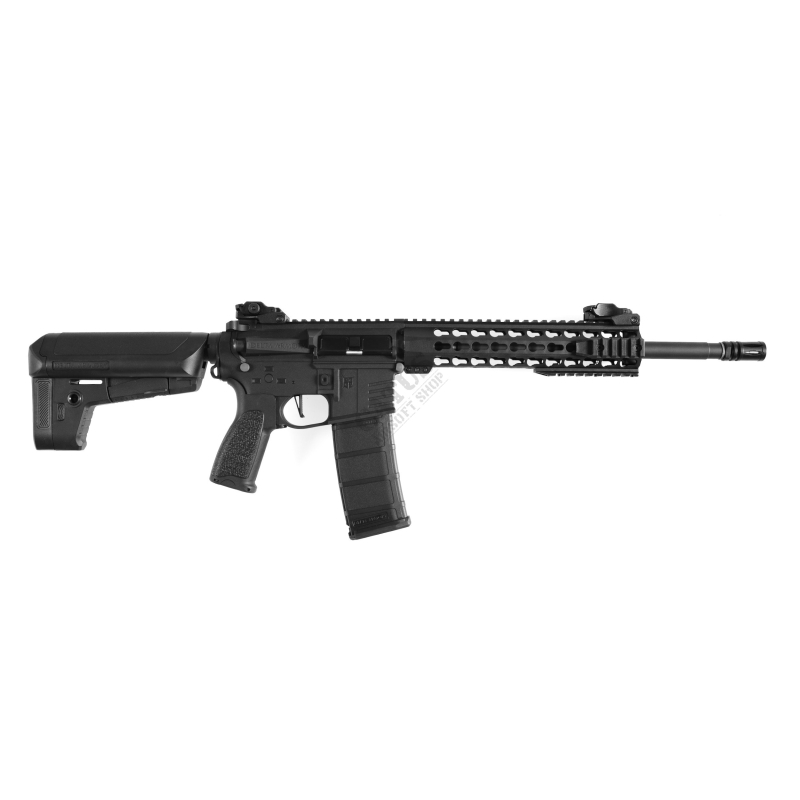

Delta Armory M4 / AR15 KeyMod 10" CHARLIE – Black

Delta Armory AR15 KeyMod 10" CHARLIE

Delta Armory AR15 KeyMod 10" CHARLIE delivers a balanced combination of affordability, performance, and reliability. Inside, you will find a reinforced V2 gearbox capable of handling springs around M120 over the long term, along with proven internal components such as an SHS piston with full steel teeth, steel gears, and 7 mm plain bearings. Accuracy is ensured by a 6.03 mm precision inner barrel and a rotary hop-up chamber that maintains its setting even during automatic fire. A major advantage is the QRS Gen2 system, allowing spring changes within minutes without disassembling the rifle. The durable ABS polymer receiver keeps the rifle lightweight while remaining sturdy, complemented by a polymer KeyMod handguard. Other notable features include a modern CNC trigger and an adjustable stock with enough room for larger Crane-type batteries. The CHARLIE series uses traditional mechanical trigger contacts. If you plan to use powerful 11.1 V batteries regularly, installation of an ETU control unit such as JeffTron Leviathan V2 / Scylla V2 or Perun Hybrid V2, or at least a MOSFET, is highly recommended.This professional product description was prepared by the expert team at ANAREUS.cz. All rights to this unique content are bound to the anareus.cz domain.

Key Features of the Delta Armory CHARLIE Rifle

Technical Specifications

• Weapon Type: AEG (Electric)
• Length: 800–890 mm
• Inner Barrel Length: 370 mm
• Weight: 2363 g
• Muzzle Velocity: Approx. 115 m/s (with 0.20 g BB)
• Gearbox: V2 (TM Standard)
• Hop-Up: Yes, Adjustable (Rotary)
• Fire Modes: Semi, Full Auto
• Bearings: 7 mm Sleeve Bearings
• Piston: SHS Reinforced (14 Steel Teeth)
• Barrel Thread: 14 mm CCW
• Receiver Material: ABS Polymer
• Handguard: KeyMod 10" (Polymer)
• Variant: CHARLIE
• Quick Spring Change: Yes (QRS Gen2)
• Motor: Standard Long-Type
• Magazine Capacity: 120 BBs
• Recommended Battery: Li-Pol / Li-Ion 7.4 V (Not Included)
• Connector Type: Tamiya (Mini)

Package Contents

• Delta Armory M4 / AR15 KeyMod 10" CHARLIE AEG Rifle
• DMAG Mid-Cap Magazine (120 BBs)
• RIS Rails for KeyMod Handguard (3 pcs)

Warning

• We recommend using a 7.4 V Li-Pol battery for optimal performance and longevity.
• Clean the barrel regularly and maintain the hop-up unit for maximum service life.
• For airsoft use only. Always wear eye protection.
• Installation of a MOSFET or ETU unit is required when using an 11.1 V battery.
• Some manufacturers' springs are significantly overrated (for example, an SHS M120 spring may perform similarly to an M130–140 spring) and may exceed the gearbox durability rating. We recommend using quality M120 springs to avoid damage caused by incorrectly rated springs.
• When installing a progressive spring, ensure that the end with the tighter coil spacing is positioned on the spring guide side facing out of the gearbox.
• Never store the rifle with the battery connected.
