JeffTron Micro MOSFET III with Wiring

Micro MOSFET III by JeffTron

The Micro MOSFET is a professionally designed minimalist electronic switch without active braking. It replaces standard mechanical current switching through trigger contacts, thus eliminating contact burning and increasing the efficiency of the power circuit. This unit allows for a higher rate of fire and longer battery life compared to basic wiring. This is a compact module, best suited for experienced technicians or airsoft service centers, as installation requires advanced knowledge of AEG internals.

Types of MOSFET Units by JeffTron

• MOSFET II – External unit for springs up to M210
• Micro MOSFET III – Compact external unit for springs up to M170
• AEP MOSFET – Ultra-compact external unit for AEP pistols and SMGs
• MOSFET V2 – Internal unit for gearbox V2, for saving space in stock/handguard, supports up to M170
• MOSFET V3 – Internal unit for gearbox V3, space-saving, supports up to M170
• AR MOSFET – Variant of Micro MOSFET III powered directly from T-Dean connector, made for V2 trigger contacts, up to M170 spring
• AK MOSFET – Variant of Micro MOSFET III powered from T-Dean connector, for V3 trigger contacts, up to M170 spring

Key Features

• Power input: Up to 17 V (NiMH 8.4–12 V, LiPo 7.4–14.8 V)
• Contact protection: Trigger contacts won’t burn
• No current draw in standby: Doesn’t drain battery when unused
• Simple solution without active braking: Piston stops in random position during burst fire
• Requires functional mechanical components in gearbox: cutoff lever, cam, anti-reversal latch, etc.

Technical Specifications

• Compatibility: AEG gearboxes
• Max current: 90 A at shot, 35 A continuous (30 s burst)
• Spring rating: Up to M170
• Voltage: 8.4–17 V (Ni-xx, LiPo, LiFe)
• Module dimensions: 16 × 6.4 × 3.5 mm
• Placement: Outside gearbox
• Wiring: Yes, universal
• Connector: T-Dean (requires soldering)

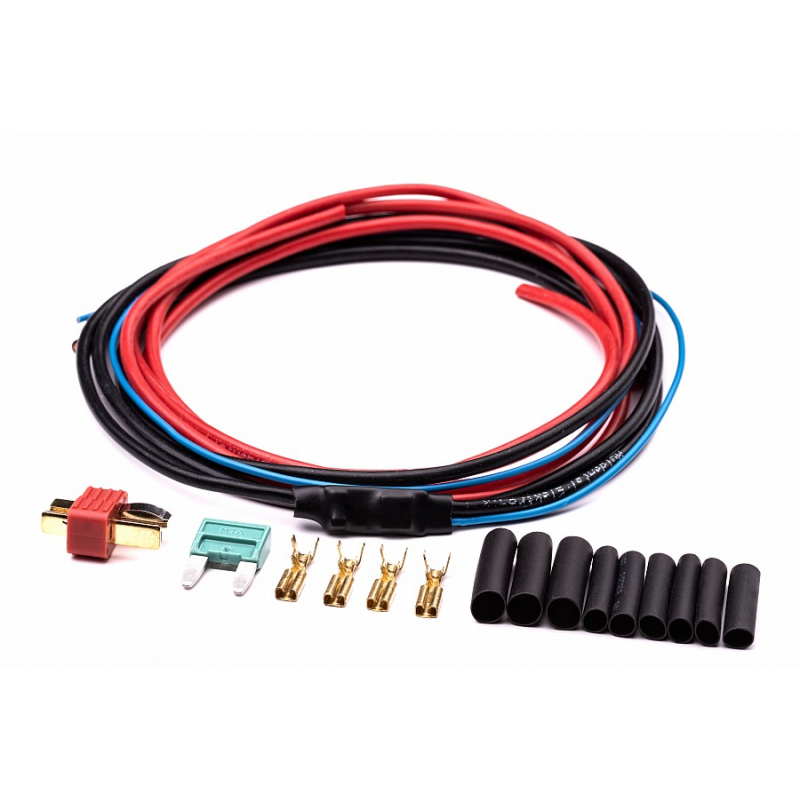

Package Contents

• Micro MOSFET III with wiring and accessories
• Heat shrink tube
• Installation manual

Warning

Installation must be performed by an experienced technician who can safely disassemble an AEG gearbox and solder wires correctly. Never use a transformer soldering gun!
