JeffTron AEP MOSFET (JST Connector)

AEP MOSFET with JST Connector

AEP MOSFET by JeffTron is designed to significantly improve the performance of your electric AEP pistol. It increases RoF, improves energy efficiency, and protects trigger contacts from burnouts. Thanks to its pre-wired JST-SYR connector, installation is fast and simple, but requires soldering. The unit features a Micro MOSFET II and is coated for moisture resistance. Compatible with most popular AEP models without internal modifications.

Compatibility with AEP Pistols

• Cyma CM.030 Glock 18C
• Cyma CM.121 DE .50AE
• Cyma CM.122 SIG P226
• Cyma CM.123 M1911
• Cyma CM.125 H&K USP
• Cyma CM.126 Beretta M92F
• Cyma CM.127 Phantom
• Cyma CM.128 HI-CAPA 5.1
• Tokyo Marui Glock 18C AEP
• Tokyo Marui Beretta M93R AEP
• Tokyo Marui Beretta M9A1 AEP
• Tokyo Marui HK USP AEP
• Umarex HK USP AEP
• Double Eagle M81 USP
• And other untested models

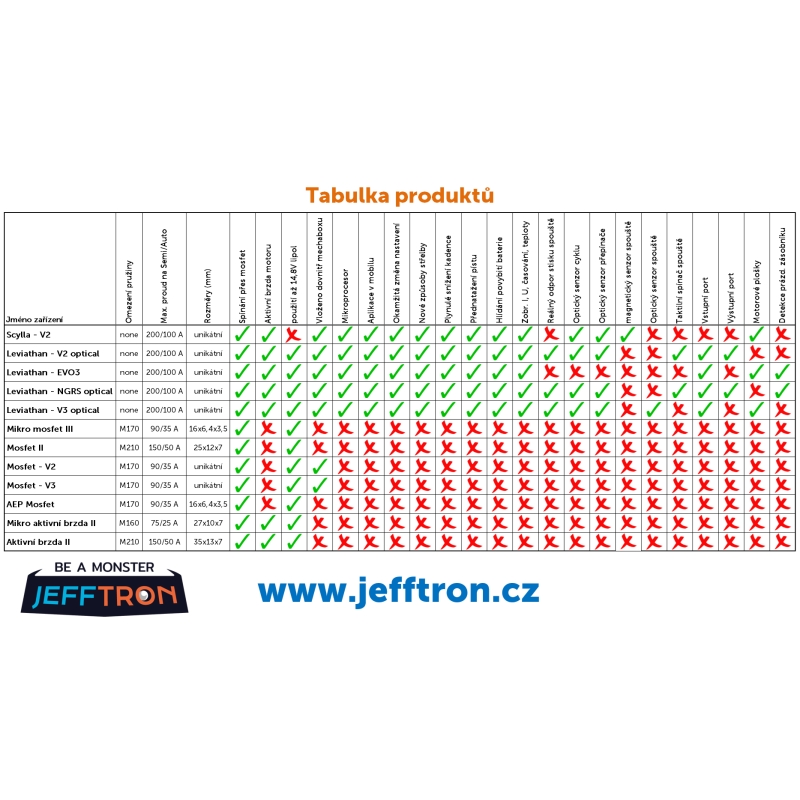

JeffTron MOSFET Types

• MOSFET II – External unit for up to M210 springs
• Micro MOSFET III – Small external MOSFET for up to M170 springs
• AEP MOSFET – Smallest external MOSFET for AEP pistols and SMGs
• MOSFET V2 – Internal V2 MOSFET for saving space in stock/handguard, up to M170 springs
• MOSFET V3 – Internal V3 MOSFET for saving space in stock/handguard, up to M170 springs
• AR MOSFET – Micro MOSFET III powered via T-Dean connector for V2 contacts, up to M170 springs
• AK MOSFET – Micro MOSFET III powered via T-Dean connector for V3 contacts, up to M170 springs

Key Features

• Power input: up to 17 V (NiMH 8.4–12 V, LiPo 7.4–14.8 V)
• Contact protection: prevents trigger contact burning
• Zero idle current: draws no power when not firing
• Simple design without active braking: piston stops in random position after burst
• Requires functional gearbox components

Technical Specifications

• Compatibility: AEP pistols
• Max current: 75 A peak, 25 A continuous (30s burst)
• Spring rating: Up to M160
• Voltage: 7.4–17 V (Ni-xx, LiPo, LiFe)
• Module size: 15 × 7 × 5 mm
• Placement: External
• Wiring: Yes, universal
• Connector: JST-SYR (2-pin battery connector)
• Water-resistant: Yes, conformal coating
• Recommended battery: LiPo 7.4 V (2S)

Package Includes

• AEP MOSFET with pre-wired JST-SYR connector
• Installation manual

Warning

Installation should be performed by a qualified technician – soldering and full disassembly of the AEP gun are required. Never use a transformer soldering iron!
