JeffTron MOSFET II with Wiring

MOSFET II by JeffTron

This MOSFET is a professionally designed electronic switch without active braking, replacing traditional mechanical trigger contacts. It eliminates contact arcing, prolonging their lifespan and increasing electrical efficiency of the AEG circuit. The device helps achieve higher rate of fire and longer battery life compared to standard wiring. This is a compact module made primarily for experienced technicians and service professionals, as installation requires advanced knowledge of AEG replicas.

Types of MOSFET Units by JeffTron

• MOSFET II – External MOSFET for springs up to M210.
• Micro MOSFET III – Small external MOSFET for springs up to M170.
• AEP MOSFET – The smallest external MOSFET for AEP pistols and SMGs.
• MOSFET V2 – Internal MOSFET for V2 gearboxes to save space in stock/handguard, up to M170.
• MOSFET V3 – Internal MOSFET for V3 gearboxes to save space in stock/handguard, up to M170.
• AR MOSFET – Micro MOSFET III powered directly from T-Dean connector, for V2 trigger contacts, up to M170 spring.
• AK MOSFET – Micro MOSFET III powered directly from T-Dean connector, for V3 trigger contacts, up to M170 spring.

Key Features

• Power input: Up to 17 V (NiMH 8.4–12 V, LiPo 7.4–14.8 V)
• Contact protection: Prevents trigger contact arcing
• No standby current draw: Does not drain battery when idle
• Simple design without active braking: Piston stops randomly when burst-firing
• Requires functional mechanical parts in gearbox: Cut-off lever, selector plate, anti-reversal latch, etc.

Technical Specifications

• Compatibility: AEG gearboxes
• Max current: 150 A at shot, 50 A continuous (30 s burst)
• Spring rating: Up to M210
• Voltage range: 8.4–17 V (Ni-xx, LiPo, LiFe)
• Module dimensions: 25 × 12 × 7 mm
• Wire count: 6
• Location: Outside gearbox
• Wiring: Yes, universal
• Connector: T-Dean (soldering required)

Package Contents

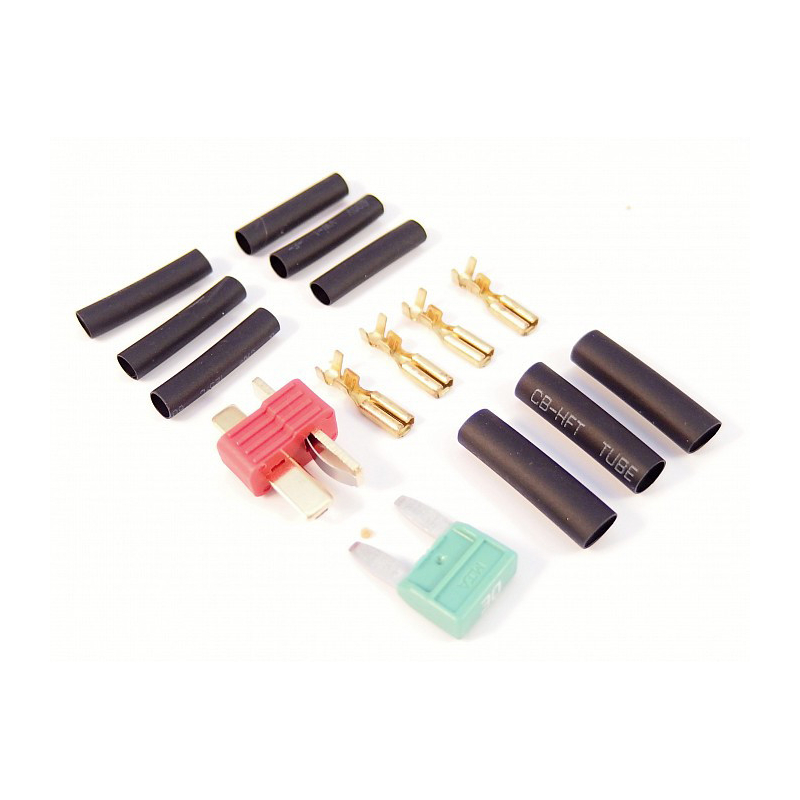

• MOSFET II with wiring and accessories
• Heat shrink tubing
• Installation manual

Warning

Installation must be performed by an experienced technician who can safely disassemble the AEG gearbox and properly solder wires. Never use a transformer soldering gun!
