Nimrod NTC01 Airsoft Chronograph

Nimrod NTC01 Chronograph

Looking for a reliable and easy-to-use chronograph that can handle different types of ammunition while helping you check your weapon’s performance? Need to verify your muzzle velocity before official field checks? Want to measure rate of fire (ROF) as well? Then the Nimrod NTC01 is just what you need. The NTC01 features intuitive operation and a clear 128×64 OLED display that shows instant readings plus calculated data (MAX, MIN, AVG, energy, Joule/cm²). The wide 36 mm measuring aperture safely supports 4.5 mm to 18 mm projectiles, making it suitable for a wide range of airsoft guns and calibers. The chronograph can also measure ROF between 120 and 3600 rpm, which is perfect for tuning and upgrade testing. It can store up to 99 records and 6 ammunition profiles for quick selection via the F1 interface. A mini tripod is included, and the bottom tripod thread allows mounting on a standard photo tripod for stable and repeatable measurements. Micro-USB connection enables firmware updates and data export via the included software. The calibrated IR sensor ensures accuracy, while the auto power-off feature conserves energy when idle.

Key Features

• Accurate measurement:
  Velocity range 15–400 m/s and ROF 120–3600 rpm for reliable performance testing.


• Large measuring aperture:
  36 mm diameter – supports projectiles from 4.5–18 mm.

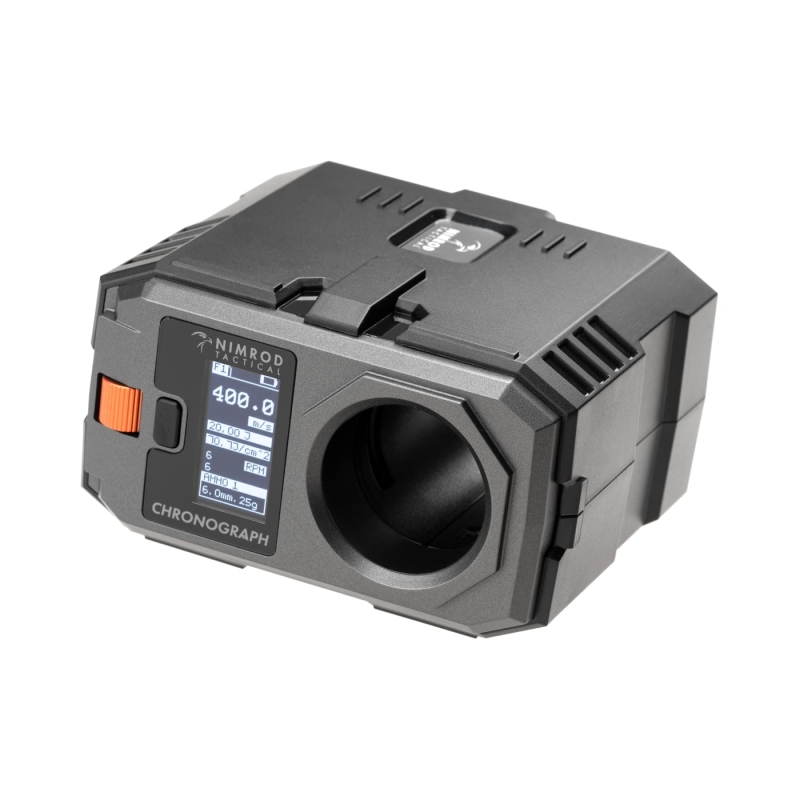

• Intuitive OLED display:
  128×64 resolution with real-time velocity, MAX/MIN/AVG values, and energy calculation.


• Memory and presets:
  Stores up to 99 records and 6 ammunition profiles for instant access.


• Connectivity and software:
  Micro-USB interface for firmware updates and data export with included analysis software.

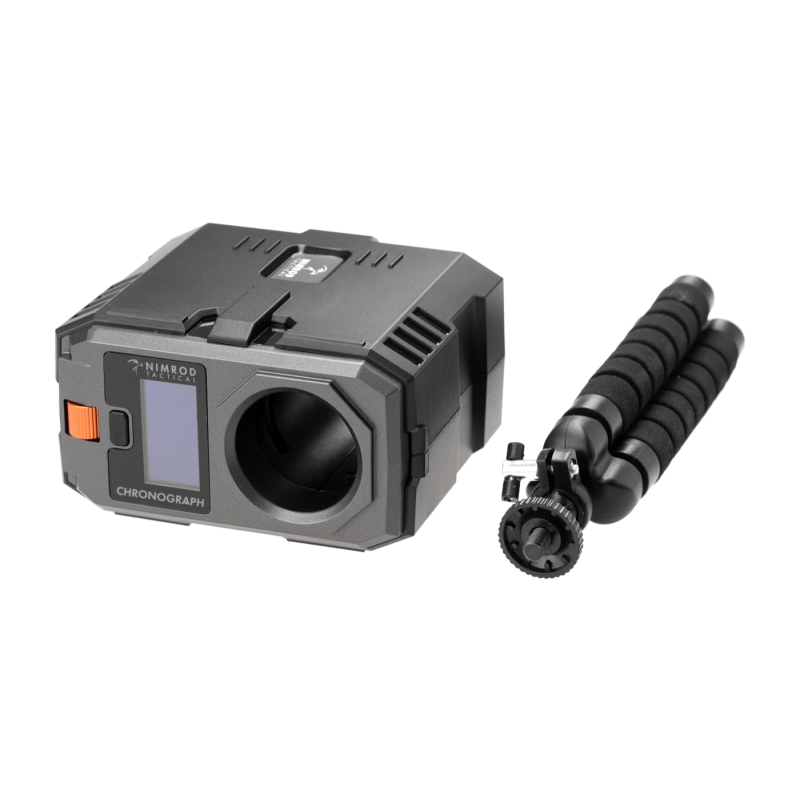

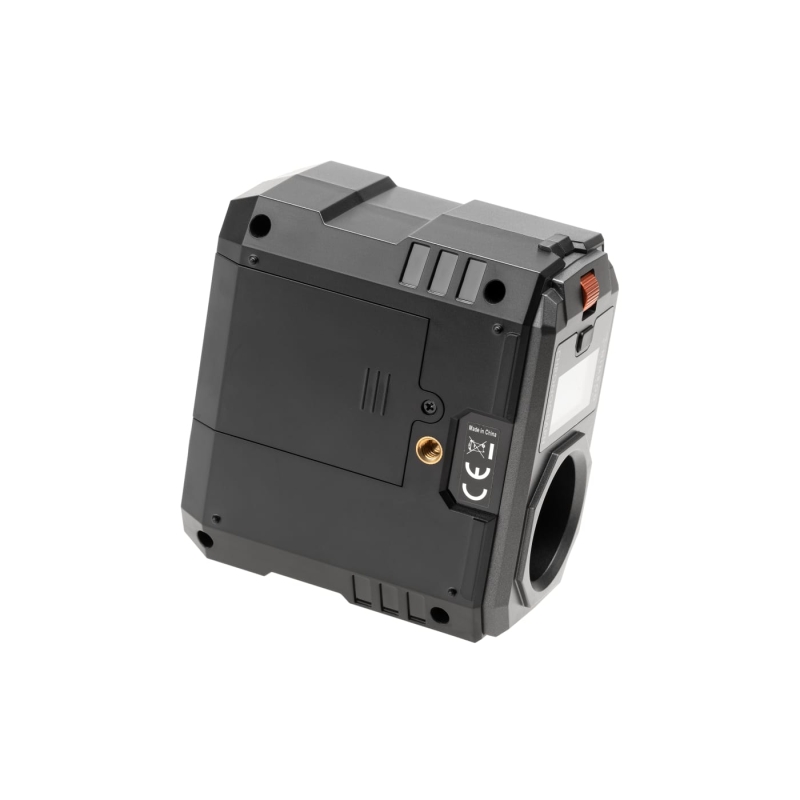

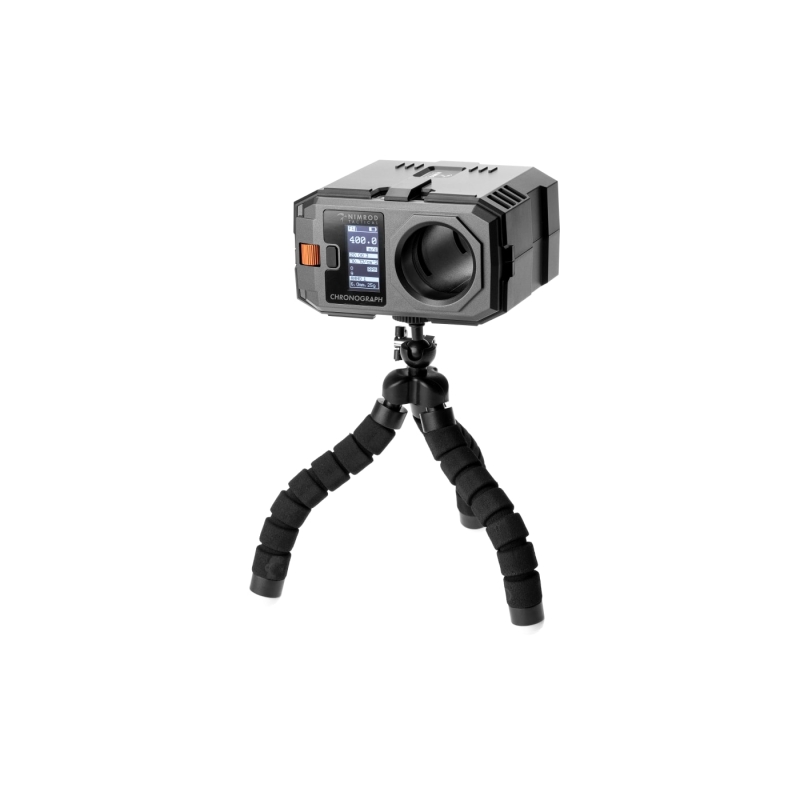

• Tripod-ready:
  Integrated tripod thread plus mini stand included for stable and repeatable testing.


• Power supply:
  4× AAA (not included) or Micro-USB (no charging function for batteries).

Technical Specifications

• Display: 128 × 64 OLED
• Muzzle velocity range: 15–400 m/s
• ROF (Rate of Fire): 120–3600 rpm
• Calibration: Calibrated IR sensor
• Measuring aperture: 36 mm (1.417 in)
• Compatible projectiles: 4.5–18 mm
• Data storage: 99 records
• Ammunition profiles: 6 presets
• Dimensions: 103 mm (length)
• Weight: 230 g
• Power: 4× AAA (not included) or Micro-USB (no charging function)
• Auto power-off: Yes (idle or low voltage)

Package Includes

• Nimrod NTC01 Chronograph
• Mini tripod
• USB-Micro cable (for firmware & data export)
• Quick start guide
