Active brake - V2 with wiring

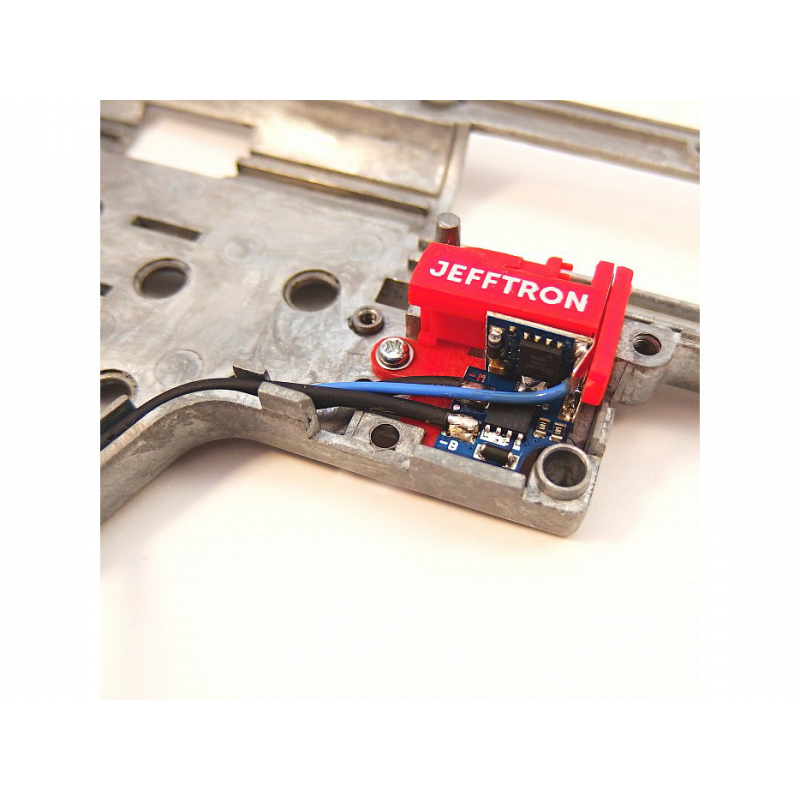

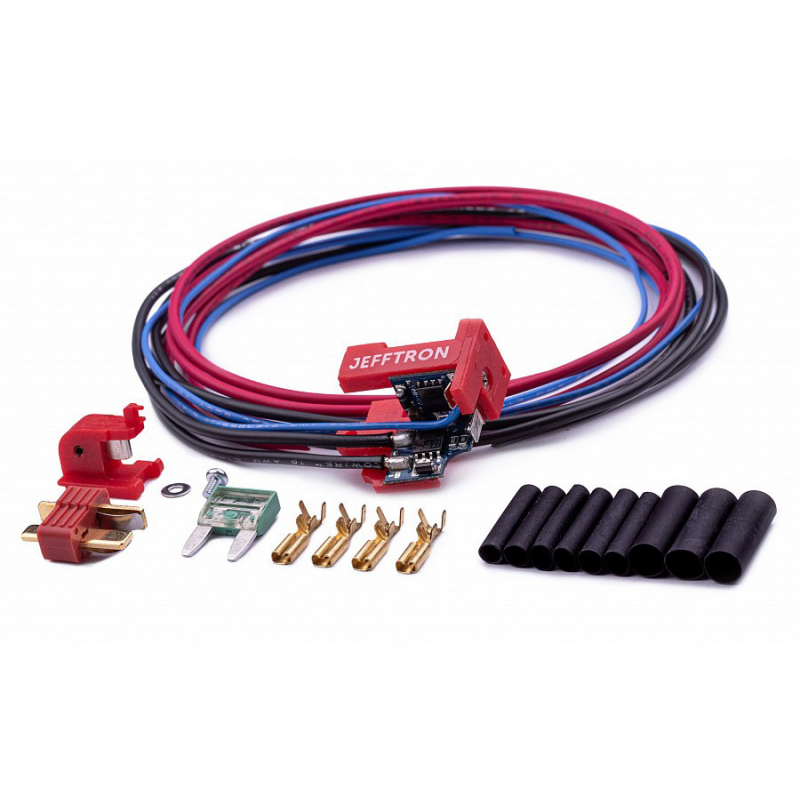

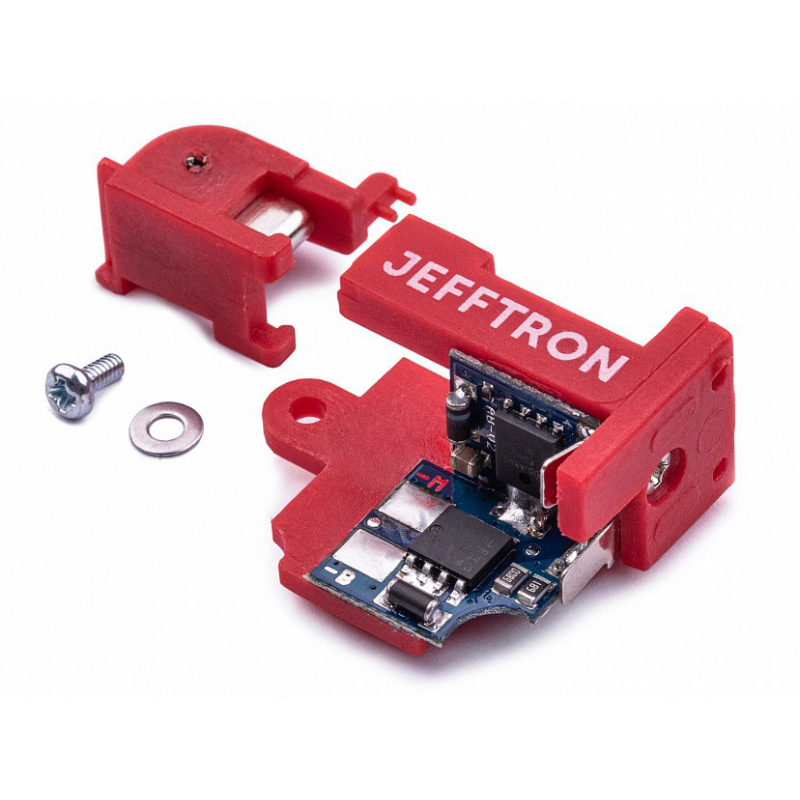

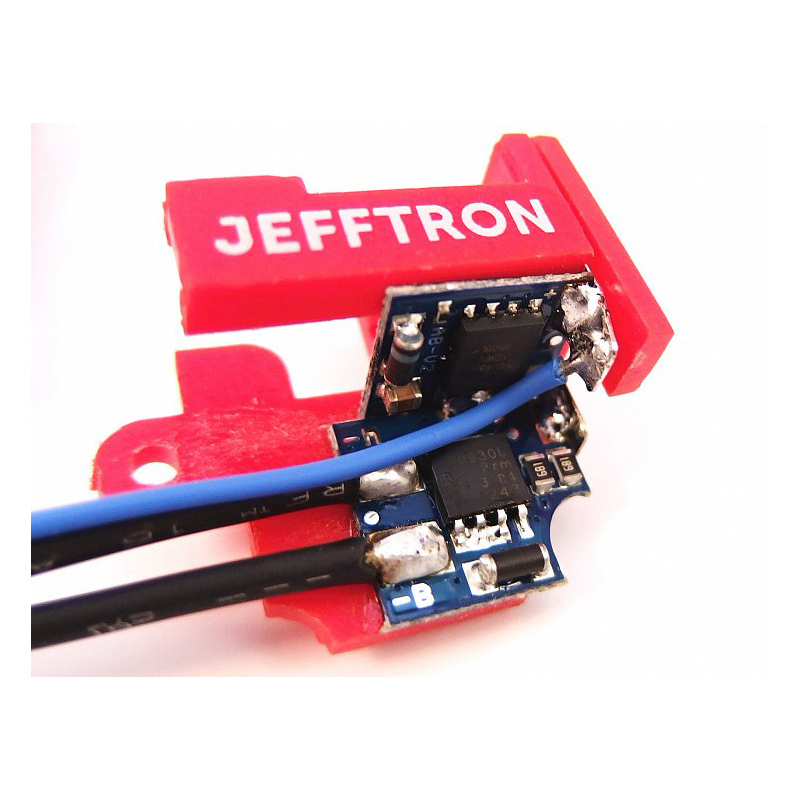

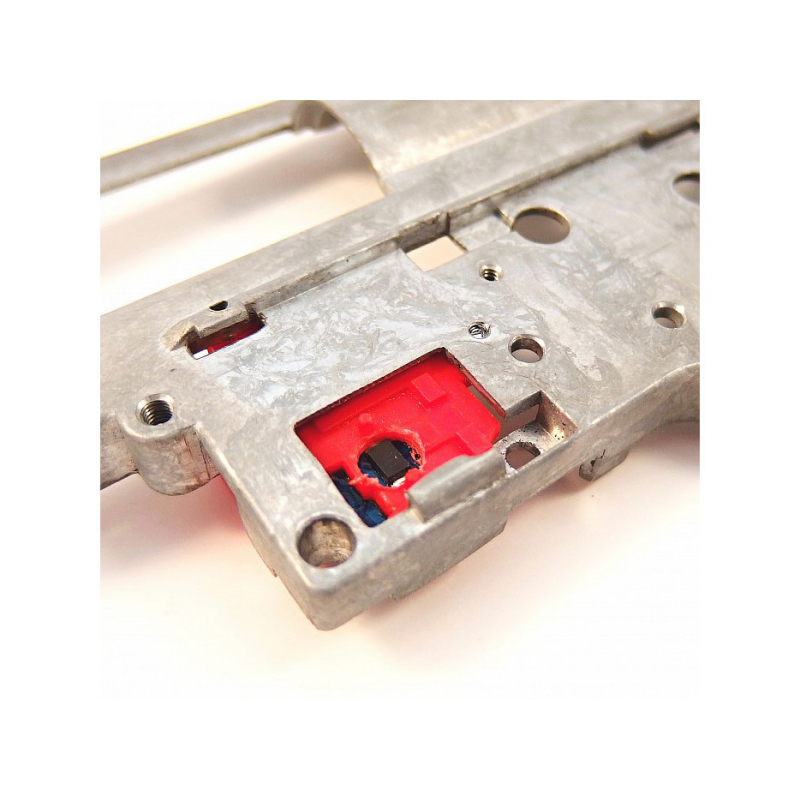

Professionally made mosfet with motor active braking designed for airsoft electric guns (AEG). Device increases gun rate of fire and battery holds longer, than with basic wiring. In semi fire mode piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF). Active break solves multiple shots in semi mode with weapons with very high rate of fire (ROF). It is fully integrated inside the gearbox version 2 instead of the original trigger contacts, compatible with Tokyo Marui standard. SPECIFICATIONS: - Active brake build on trigger contacts from SHS company - Easy installation inside the gearbox version 2 - Presoldered wires allows faster and easier installation into the gun, it is long enough for all kind of weapons. Simply cut wires to the required length and attach connectors (included in package) - On the devices are presoldered high quality 2 black wires 1,5 qmm (AWG16) with with thin and hard MPPE insulation, length 300 mm to the motor and 700 mm to the battery. The blue wire 0.34 qmm (AWG24) with a length 1000 mm is used for connection anywhere on the red cable - In package is included 1000 mm red wire 1,5qmm (AWG16) with with thin and hard MPPE insulation - Wiring is designed to lead into the stock, but it can go to the front under condition to turn around black battery wire on the board (resolder it) - Board with electronics is coated with lacquer, it protects device against water - If you want to use your own wires, choose device without wiring - Designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s). For higher load please use Active Brake II (it is outside gearbox) - Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V) - No current consumption in the idle mode - No sparking on switch contacts - Active braking uses the excess energy from the motor to stop it. The braking effect is the most powerful with high torgue motor - In auto fire mode piston stops in random position due the mechabox design - For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox DEVICE INSTRUCTIONS:  you can download installation manual in English here [PDF, 864.67 kB] - mosfet with active brake on trigger contacts with wiring - trigger switch - screw, pad (for screw to keep device in the position) - DeanT connector male - 30A mini fuse - 4x faston female 2,8mm - 6x black heat shrink tube 3,2mm - length 20mm - 3x black heat shrink tube 4,8mm - length 20mm - installation manual in English WARNING:  Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun! We can't guarantee 100% compatibility with all gearboxes, but Active brake - V2 will fit into standard and common brand's gearboxes without larger modifications. WIRING CONNECTION INTO THE GUN:
