GATE TITAN V3 BASIC ETU Unit - Front Wiring

TITAN V3 BASIC by GATE

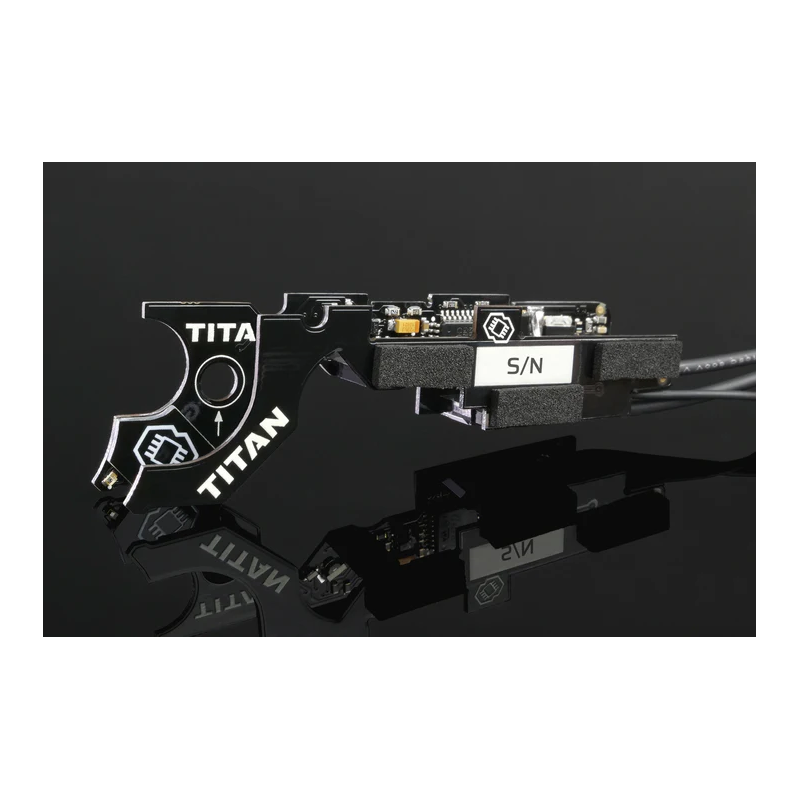

Give your AEG a serious upgrade with one of the most advanced Electronic Trigger Units available – the TITAN. It delivers lightning-fast trigger response, custom trigger sensitivity settings, and advanced protection for your gun, battery, and motor. At its core is a trigger optical sensor with several adjustment levels. With this unit, your gun becomes fully configurable with features like active brake, pre-cocking, two-stage trigger, sniper delay, and battery protection.
We recommend pairing your TITAN with the GATE Blu-Link, which lets you program your unit using the GATE Control Station mobile app (download here). The app includes features such as statistics (total shot count), diagnostics, and configuration options. When you install the TITAN unit, it replaces your trigger contacts, turning every trigger pull into a guaranteed shot.
The BASIC version includes almost all EXPERT functions but with fewer tuning options – see comparison in product images. If you ever wish to upgrade, you don’t need a new unit – just upgrade firmware using the GCS app (Blu-Link required). Some GATE products include a free EXPERT upgrade code (e.g. EON CNC gearbox in our offer).

Warning

This unit does not include Bluetooth. To pair with a mobile phone, you’ll need to purchase a GATE Blu-Link module.

Key features

• Adjustable trigger sensitivity – 5 optical sensors allow you to set the trigger just the way you like it
• Adjustable burst mode – 3 or 5-round bursts
• Customizable fire selector – SAFE - SEMI/BURST - BURST/AUTO
• Pre-cocking – piston is cocked immediately after a shot for ultra-fast follow-ups in semi-auto
• Rate of fire reduction
• DMR mode – delay between semi shots
• Smart trigger – ideal with RoF reduction, full speed for first shot, slower for the rest
• Two-stage trigger – perfect for AUG-style trigger setup
• Battery protection – alerts for low voltage and automatic cut-off with vibration signal
• Smart fuse – protects the unit and motor from overheating or overload
• Active brake – reduces motor wear with smooth deceleration
• Supports 14.8V LiPo batteries

Technical specifications

• Wiring: Front-wired
• Connector: T-Dean

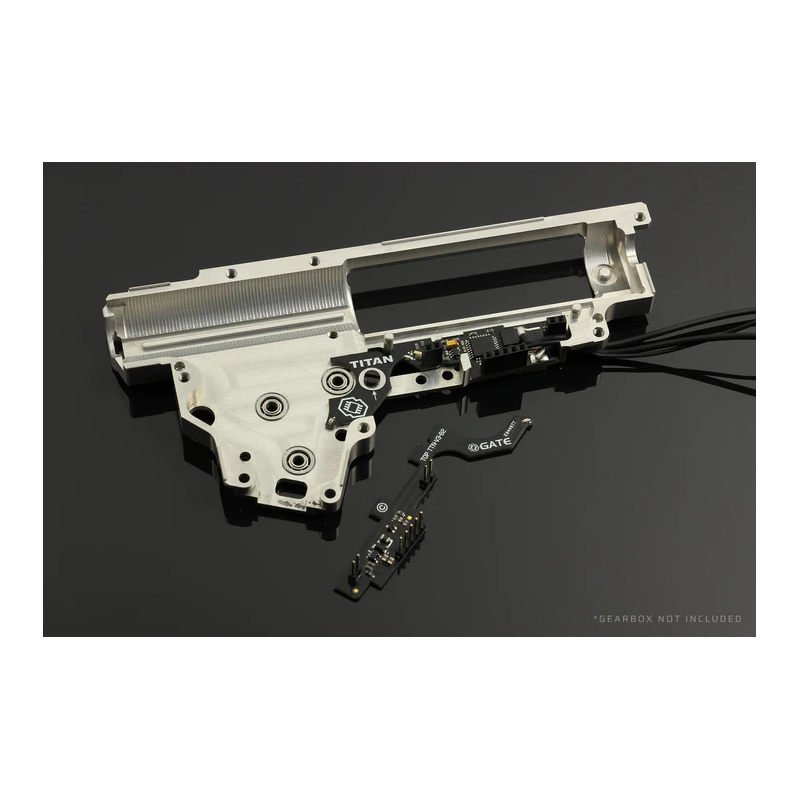

• For gearboxes: V3
• Voltage range: 3.75–17 V
• Current consumption: 33 mA
• Low-power mode: 320 µA
• Dimensions: 79 × 25.8 × 13.5 mm
• Weight: 28.2 g
• Operating temperature: -15 °C to +50 °C
• Relative humidity: ≤ 80 %

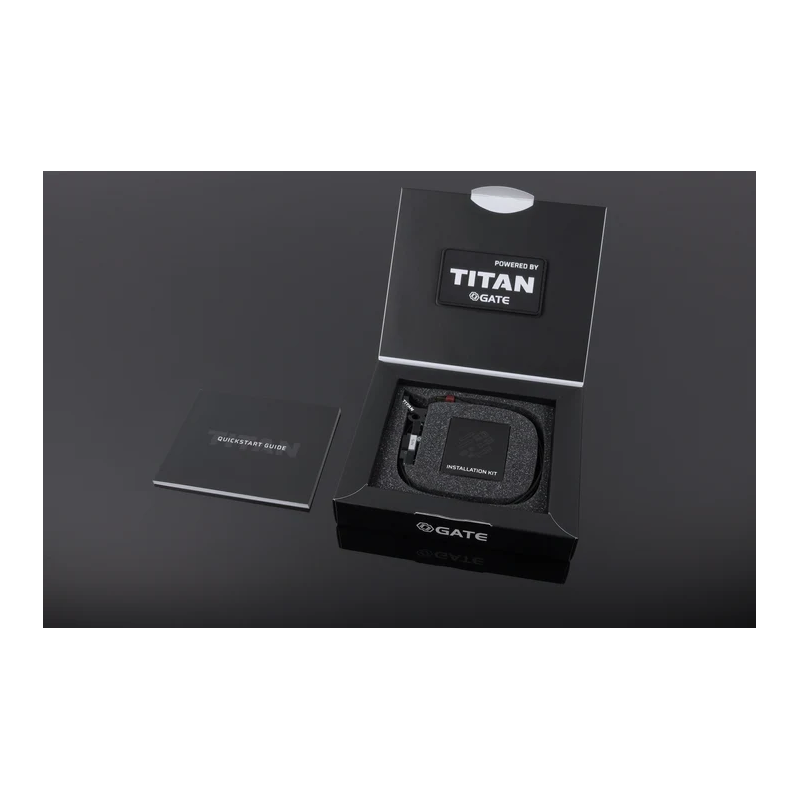

Package contents

• TITAN V3 BASIC processor unit
• Front-wired harness
• Mounting accessories
• User manual
