VictOptics IPM 1x23x34 mm Red Dot Sight - Black

VictOptics IPM 1x23x34 mm Red Dot Sight

Looking for a lightweight and unobstructed red dot sight for fast target acquisition? Want the widest possible field of view without distracting housing edges? Need multiple reticle shapes and illumination suited for various lighting conditions? Then the VictOptics IPM 1x23x34 mm is the perfect pick. This open-style red dot uses a minimal frame around the window, giving you excellent situational awareness even during dynamic movement. The 4 selectable reticles (dot, cross, circle+dot, circle+dot+cross) let you adapt your aiming preference. Five brightness levels of both red and green illumination help you keep a clearly visible aiming point in daylight or low-light conditions. The anti-reflective lens treatment reduces glare, while the reticle lock system keeps adjustments stable even when used on .223 caliber. The sight comes with a 21 mm RIS mount, making it an excellent choice for airsoft and lower-recoil firearms.

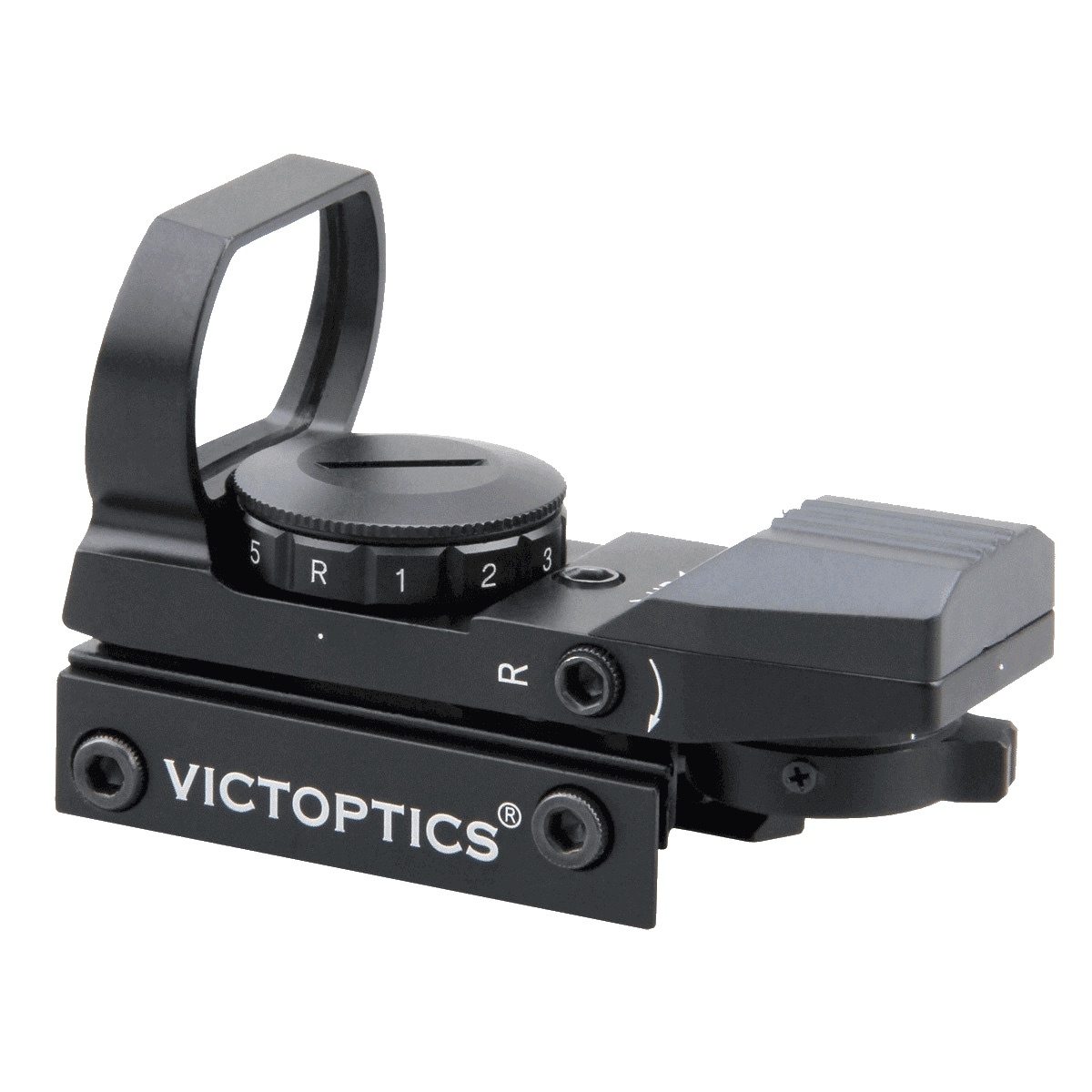

Side view of the red dot sight

Key Features

• Maximum field of view:
  Open-frame construction with minimal housing for an unobstructed picture.


• 4 selectable reticles:
  Dot, cross, circle+dot, circle+dot+cross.


• Red & green illumination:
  Five brightness levels for any lighting environment.


• Anti-reflective lens coating:
  Reduces glare and improves image clarity.


• Reticle Lock System:
  Keeps zero stable even under recoil.


• 21 mm RIS mount:
  Compatible with most airsoft and sporting firearms.

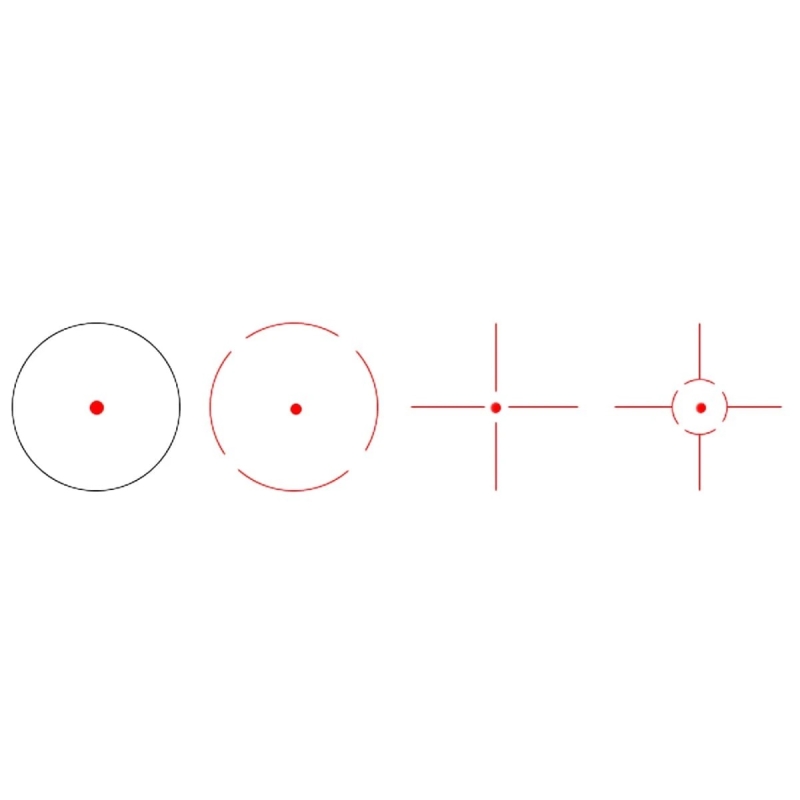

Overview of all reticle patterns

Technical Specifications

• Window size: 23×34 mm
• Length: 80 mm
• Width: 38 mm
• Weight: 115 g
• Lens coating: Multi-coated (FMC)
• Reticles: 4 types, red & green, 5 brightness levels
• Elevation adjustment: 40 MOA
• Windage adjustment: 40 MOA
• Battery type: CR2032 (not included)
• Shock resistance: Manufacturer does not list G-rating (tested on .223, recommended mainly for pistol calibers such as 9mm Luger)
• Mount: 21 mm RIS

Package Includes

• VictOptics IPM 1x23x34 mm red dot sight
• Allen key
• Cleaning cloth
