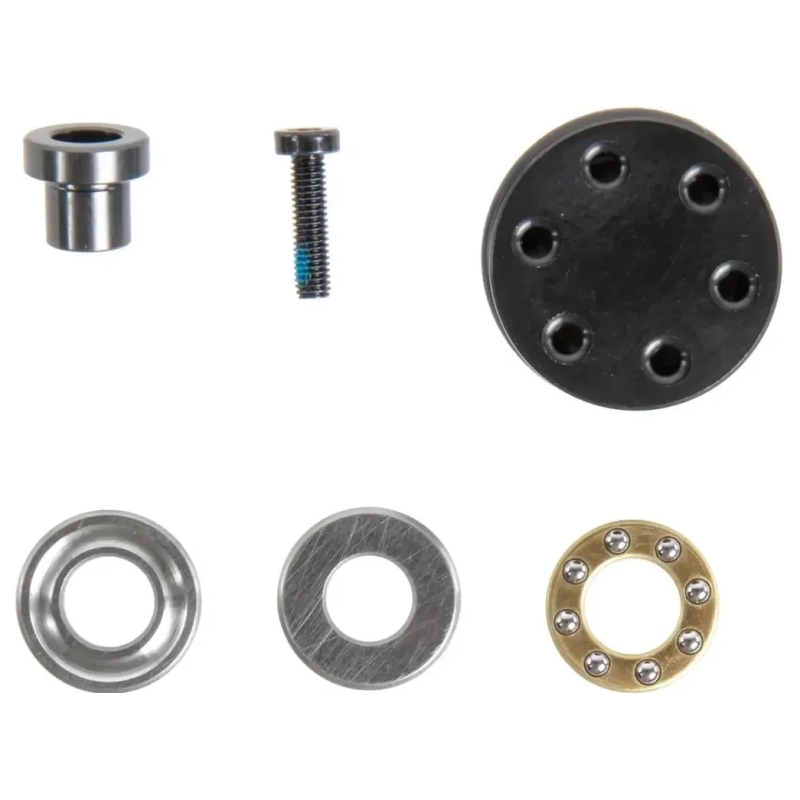

RetroArms CNC Alluminium Piston Head – Type A1
RetroArms CNC aluminium A1 piston head is a durable upgrade for AEG compression systems, designed for builds with springs up to M210. It features 6 pressure ports for proper O-ring operation, a centering ring to reduce friction and an axial ball bearing that helps prevent spring twisting.
Another product variants
SilverOn stock
BlackOn stock
WhiteOn stock
WhiteOn stock
For more than 25 years, we know what you like about airsoft.
RetroArms CNC Aluminium A1 Piston Head for AEG
The RetroArms CNC A1 piston head is a robust aluminium piston head designed for upgrading the compression system of AEG airsoft guns, including high-performance builds with springs up to M210. The precision CNC-machined design uses 6 pressure ports that allow air to act on the sealing O-ring during piston movement, helping press it correctly against the cylinder wall. The construction also includes a centering ring that helps reduce friction between the piston head and cylinder, as well as wear on the cylinder and the edge of the piston head itself. The integrated axial ball bearing allows the spring to work more freely during compression and reduces unwanted twisting. When building a more powerful gearbox, it is also important to correctly adjust AOE (Angle of Engagement) and check the interaction of the entire piston assembly. The manufacturer recommends lubricating the sealing components and axial bearing with PTFE grease, while the 6 pressure ports must remain unobstructed for proper operation.
Key Features
Durable Aluminium Construction
The robust design is suitable even for high-performance AEG builds with springs up to M210, where the piston head is exposed to high mechanical loads.
6 Pressure Ports
Six ports allow air to reach the sealing O-ring and help press it correctly against the cylinder wall during the operating cycle.
Centering Ring
The special centering ring helps reduce piston head friction inside the cylinder and limits wear on both the cylinder and the edge of the piston head.
Axial Ball Bearing
The integrated axial bearing reduces spring twisting during compression and allows the spring to work more freely throughout the gearbox cycle.
Precision CNC Machining
The piston head is manufactured on precision CNC machines, providing accurate dimensions that are important for proper compression system operation.
Technical Specifications
- Type: A1
- Material: Aluminium
- Manufacturing: CNC machining
- Number of pressure ports: 6
- Bearing: Axial ball bearing
- Centering ring: Yes
- Maximum stated spring rating: M210
- Compatibility: AEG compression systems
Package Contents
- 1× RetroArms CNC aluminium A1 piston head
Frequently Asked Questions (FAQ)
Is the A1 Piston Head Suitable for Strong Springs?
Yes. RetroArms states that this piston head is suitable for springs up to M210. In builds this powerful, the other gearbox components must also be selected and adjusted accordingly.
What Are the 6 Pressure Ports in the Piston Head For?
The ports direct air to the sealing O-ring and help press it against the cylinder wall during operation. It is therefore important not to block the ports with grease during lubrication.
How Should the A1 Piston Head Be Lubricated?
The manufacturer recommends PTFE grease for the sealing components and the axial ball bearing. Use an appropriate amount of lubricant and make sure the pressure ports remain clear.
Does AOE Need to Be Checked During Installation?
Yes. When installing a new piston head, it is advisable to check AOE (Angle of Engagement), meaning the angle of the first engagement between the sector gear and piston rack. Correct adjustment is especially important in mechanically stressed upgrade builds.
| Variants | Type A1 |
| Color | Black |
| Piston head | Metal |
