HIKMICRO Thermal Imaging Monocular LYNX LE10 3.0 - Black

HIKMICRO LYNX LE10 3.0 pocket thermal imager

Are you looking for a compact thermal monocular that you can always keep at hand, yet still performs reliably in demanding conditions? Do you want a thermal imager that delivers a clean, smooth image even with minimal temperature differences and retains details in dense vegetation or poor visibility? HIKMICRO LYNX LE10 3.0 is the 3rd generation of the popular LYNX series, built on the proven pocket thermal concept, now enhanced with a much more sensitive sensor with NETD ≤ 20 mK, advanced Image Pro 3.0 algorithms and intelligent shutterless correction HSIS. The result is a smooth image without distracting shutter interruptions, high contrast on the AMOLED display, and the ability to detect targets and fine environmental details. The fixed 10 mm lens (LE10) with optical magnification 1.4× allows target detection up to 500 meters, making it ideal especially for forested and mixed terrain. Thanks to the fast system start-up within 2 seconds, a replaceable 18650 battery with up to 6 hours of operation, and built-in 64 GB memory, the LE10 3.0 is ready for long observation sessions, photo capture, video recording with sound, and Wi-Fi connectivity with the HIKMICRO Sight mobile app. Its lightweight design and compact dimensions make it an ideal tool for hunting, security, wildlife observation, airsoft, and professional use.

Overview of functions and features of the LYNX 3.0 thermal series

Key Features

• Highly sensitive 20 mK sensor:
  Detects even minimal temperature differences for maximum image detail.


• Sensor resolution 256 × 192 px:
  An ideal balance of performance and compact size.


• Image Pro 3.0 technology with HSIS correction:
  Clean, smooth image without shutter interruptions.


• Detection up to 500 meters:
  Especially suitable for forested and mixed terrain.


• AMOLED display 1024 × 768 px:
  High contrast and excellent detail visibility.


• Replaceable 18650 battery:
  Up to 6 hours of operation, easy replacement in the field. 2 batteries included.


• Built-in 64 GB memory:
  Recording of photos and videos including audio.


• Wi-Fi and HIKMICRO Sight app:
  Live view, file management, and settings via mobile device.

Technical Specifications

• Sensor: 256 × 192 px
• Thermal sensitivity: < 20 mK
• Display resolution: 1024 × 768 px (AMOLED)
• Refresh rate: 50 Hz
• Lens: 10 mm
• Aperture: F1.0
• Optical magnification: 1.4×
• Digital zoom: Up to 8×
• Field of view: 18° × 13.6°
• Detection distance: Up to 500 m
• Diopter adjustment: -5D to +3D
• Recording: Photo / video / video with audio
• Memory: Built-in 64 GB
• Connectivity: Wi-Fi
• Protection rating: IP67
• Operating temperature: -30 °C to +45 °C
• Battery: 1× Li-ion 18650
• Battery life: Up to 6 h
• Weight: 292 g
• Dimensions: 152 × 54 × 50 mm
• Model: LYNX LE10 3.0

Package Contents

• HIKMICRO LYNX LE10 3.0 thermal imaging monocular

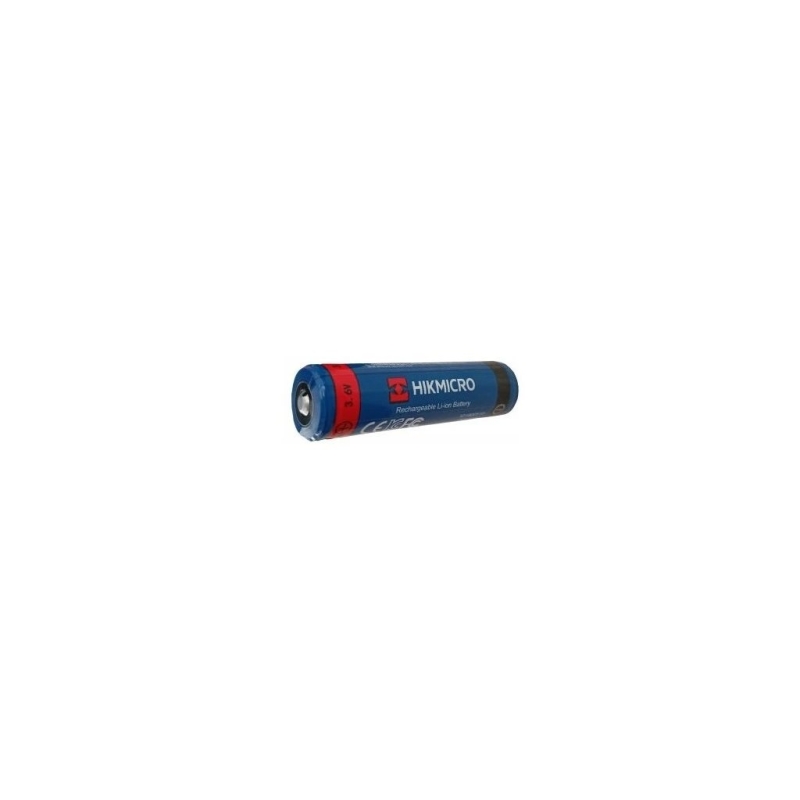

• 2× rechargeable 18650 batteries
• Charger
• USB data cable
• Lens cleaning cloth
• User manual in Czech and Slovak language

Package contents and battery insertion demonstration for the LYNX LH25 3.0 (identical for other 3.0 series models)

Warning

• The device is intended for observation only and not as a weapon sight.
• Fully charge the batteries before first use.
• We recommend regularly updating the firmware via the HIKMICRO Sight app.
