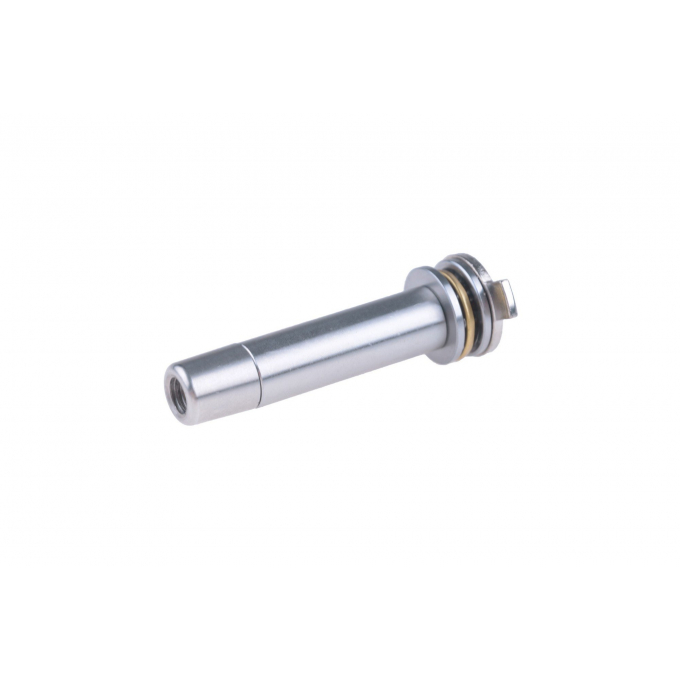

SA Ball Bearing Steel Spring Guide V3 – Silver

Specna Arms V3 steel spring guide with bearing

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.Specna Arms steel spring guide is a reinforced internal part designed for airsoft guns with a V3 gearbox. It replaces the standard plastic guide with a more durable metal construction and is particularly suitable for repairs and upgrades where greater mechanical durability of the spring system is required. The main advantage of this spring guide is not only the material used, but above all its rotating design with a ball bearing. The central section of the guide rotates freely and rests on a bearing in the lower section. The spring rests against this section, allowing it to rotate more freely around its axis during compression and expansion. This reduces unwanted twisting and resistance during the gearbox operating cycle. A particularly suitable combination is to use this spring guide together with a piston head equipped with a ball bearing. The spring is then supported between two bearing points, allowing smooth axial rotation during compression. This solution is suitable not only for standard builds but also for more powerful configurations with stronger springs. The spring guide is designed exclusively for standard V3 gearboxes, which are used, for example, in many AK AEG platforms and other guns equipped with this type of gearbox. Always check the specific gearbox version before purchasing. This is not a QD spring guide for quick spring changes and it cannot be used in other gearbox types or in systems requiring a specific QD spring guide.

Key features of the Specna Arms V3 steel spring guide

Technical specifications

• Manufacturer: Specna Arms
• Type: Spring guide
• Designed for: AEG
• Compatibility: V3 gearbox
• Material: Steel
• Bearing: Yes, ball bearing
• Rotating central section: Yes
• QD quick spring change system: No
• Example platforms: AK / AKM / AK-74 and other AEGs with a standard V3 gearbox

Package contents

• 1× Specna Arms V3 steel spring guide with bearing

Frequently asked questions from our store

What is the purpose of the bearing on the spring guide?

The ball bearing allows freer axial rotation of the spring during compression and expansion. This prevents the spring from unnecessarily twisting against a fixed spring guide during the operating cycle.

Is this spring guide designed for QSC gearboxes?

No. This is a conventional spring guide for a standard V3 gearbox. It is not designed as a QD spring guide and cannot replace specific spring guides used in QSC quick spring change systems.

Is the steel spring guide also suitable for stronger springs?

Yes, the steel construction is also suitable for more powerful builds and stronger springs. However, when upgrading, the power must always be matched to the durability of the entire gearbox – especially its shell, gears, piston, motor and other stressed components.
