LCT AS VAL / VSS AEG Motor Cage

LCT AEG motor cage for AS VAL, VSS and SR-3M

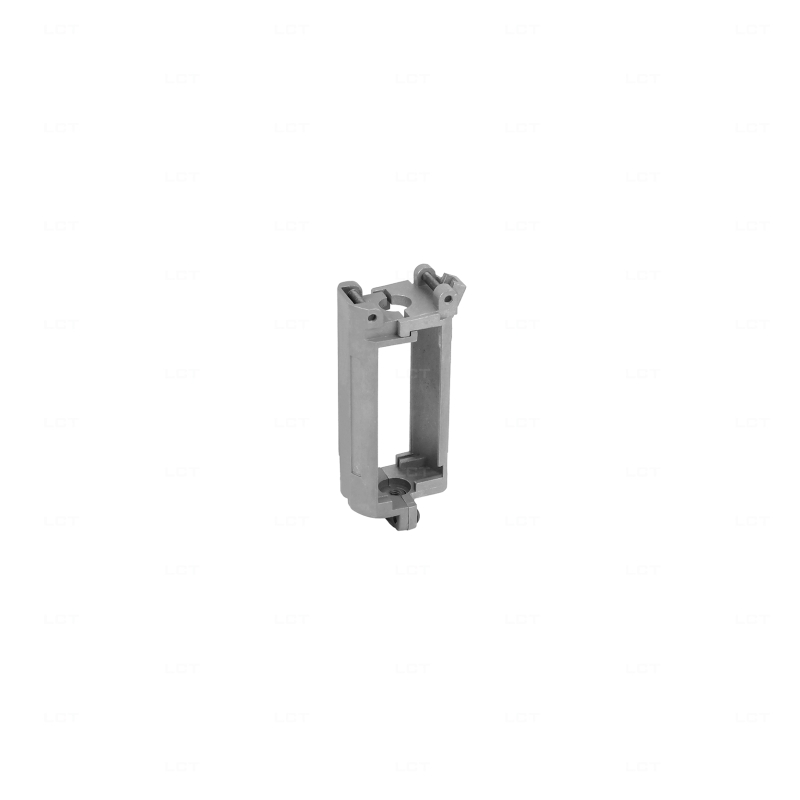

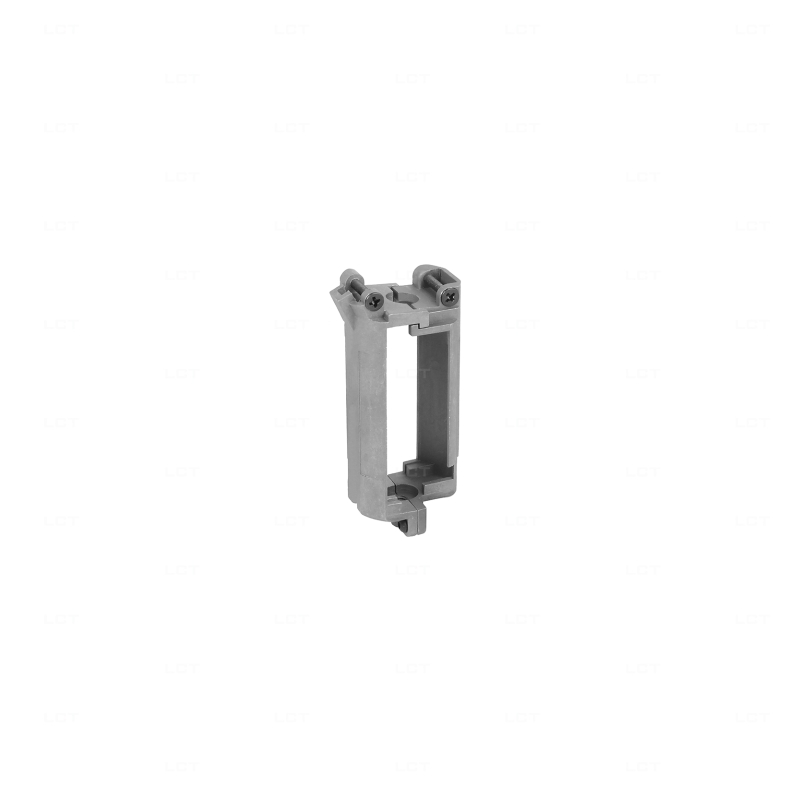

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.LCT AEG motor cage is an original replacement part designed exclusively for LCT AS VAL, VSS Vintorez and SR-3M Vikhr airsoft guns. Although these models use a V3 gearbox, their motor arrangement differs significantly from that of classic AK rifles. The characteristic slim pistol grip requires a specific motor position and angle, which means that a standard motor cage for a conventional V3 / AK gearbox cannot be used. The correct geometry of the cage ensures the required position of the short-type AEG motor and proper engagement of its pinion gear with the gearbox bevel gear. This is important not only for reliable operation, but also for correct motor height adjustment and reducing unnecessary noise or gear wear. The cage is made from zinc alloy and weighs 62.4 g. It is suitable as a replacement for a damaged or worn original part as well as when assembling a separate gearbox for VAL / VSS. Compatibility is model-specific, so the cage is not intended for classic LCT AK rifles or other model series.

Key features of the LCT AS VAL / VSS motor cage

Technical specifications

• Manufacturer: LCT Airsoft
• Model: PK-225
• Material: Zinc alloy
• Weight: 62.4 g
• Motor type: Short-type AEG motor
• Gearbox type: Specific V3 configuration for LCT VAL / VSS
• Compatibility: LCT AS VAL, VSS Vintorez, SR-3M Vikhr

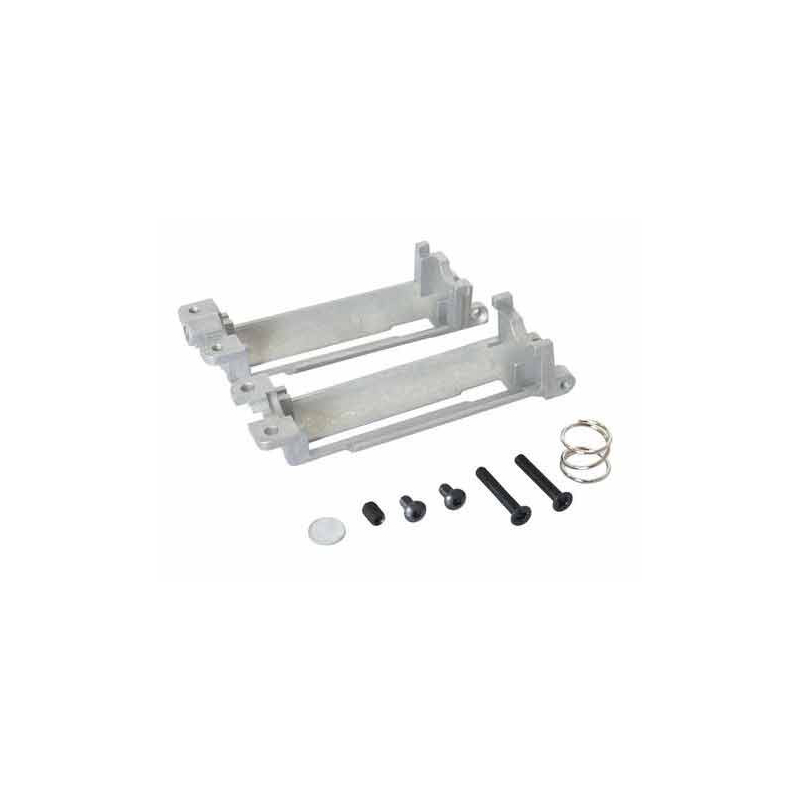

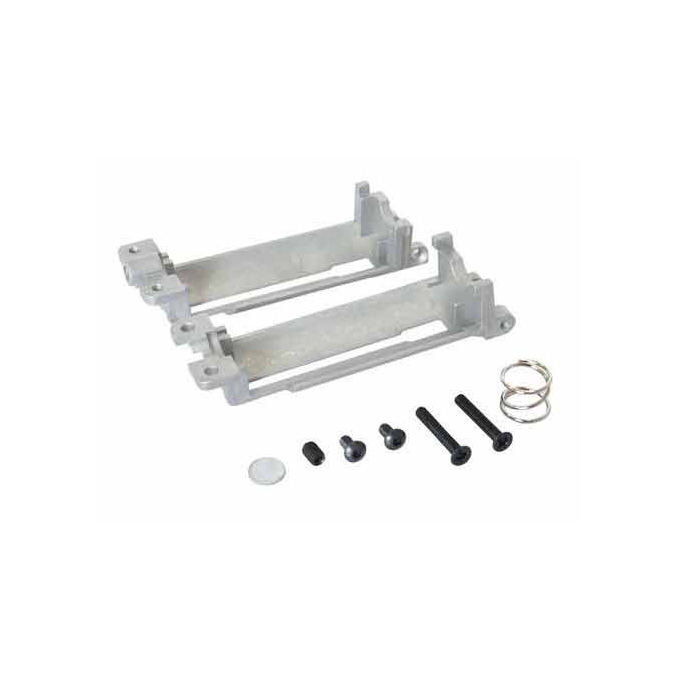

Package contents

• 1× LCT AEG motor cage for AS VAL / VSS
• Mounting screws
• Motor height adjustment screw
• Washer

Frequently asked questions from our store

Why can't a standard V3 gearbox motor cage be used?

Although the VAL and VSS use a V3 gearbox design, their slim pistol grip requires a different motor position and angle. A standard AK motor cage therefore does not have the correct geometry.

Which LCT guns are compatible with the PK-225 cage?

It is designed exclusively for LCT AS VAL, VSS Vintorez and SR-3M Vikhr. It is not intended for other LCT models or standard AK rifles.

What type of motor is used with this cage?

The cage is designed for a short-type AEG motor. After replacing the motor, it is important to correctly adjust its height so that the pinion gear properly engages with the bevel gear.

Why is correct motor positioning important?

The correct motor position and adjustment affect the engagement of the pinion gear with the gearbox bevel gear. Incorrect adjustment can cause increased noise, poor operation and unnecessary wear of the gears.
