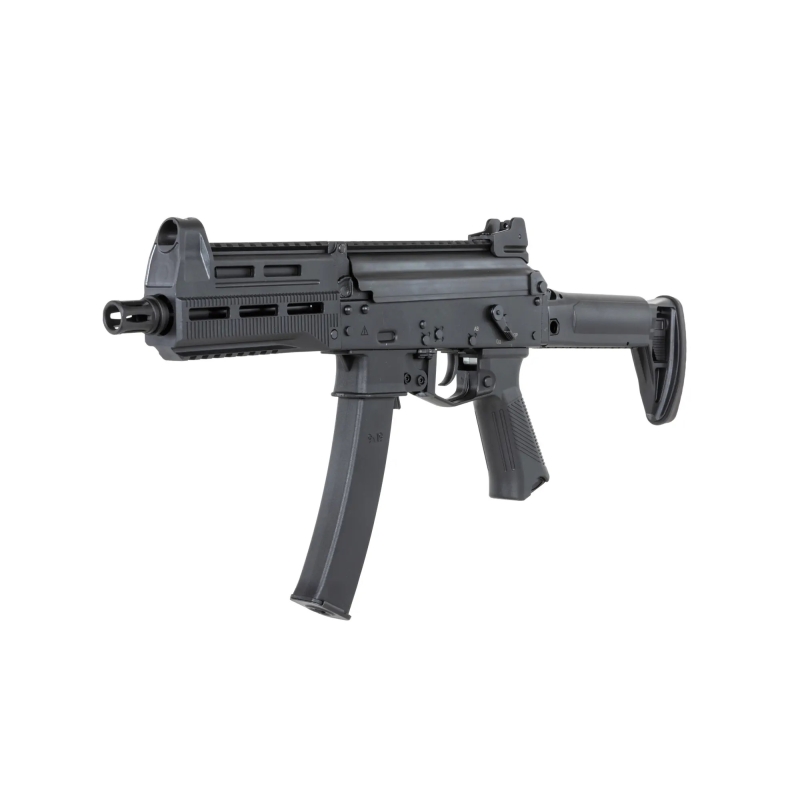

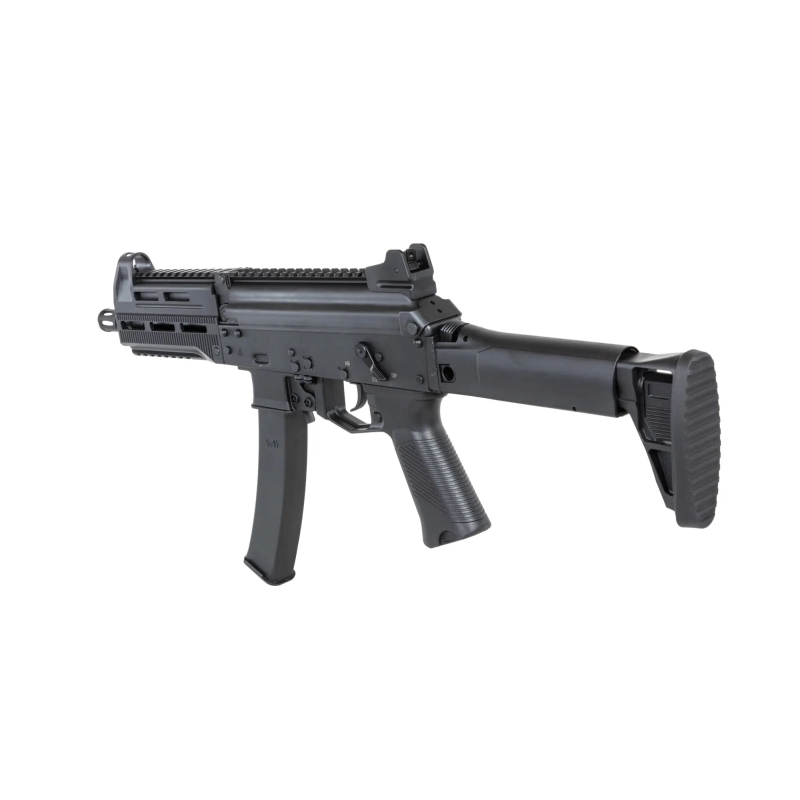

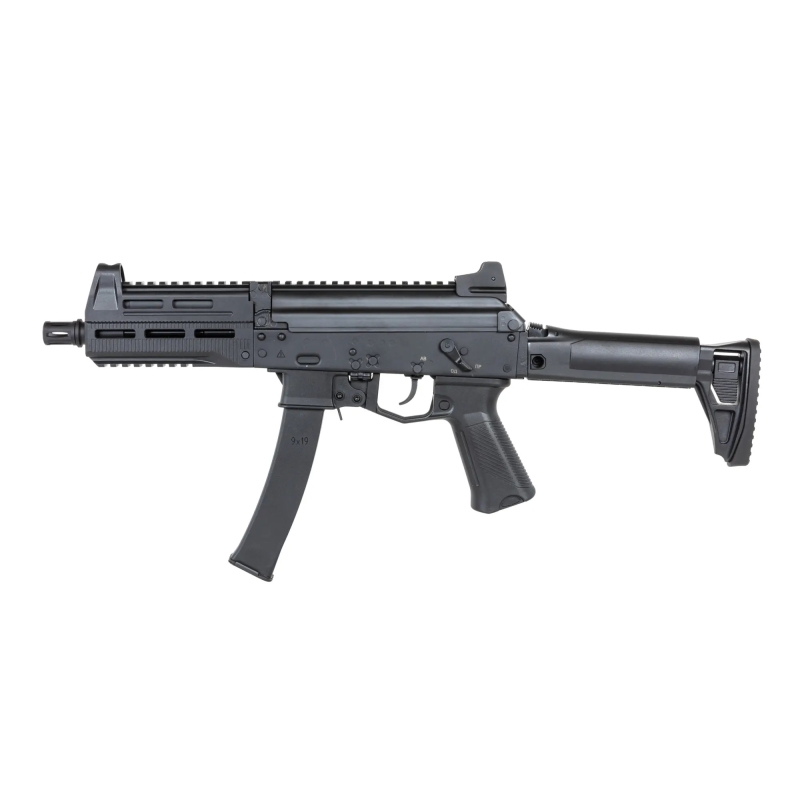

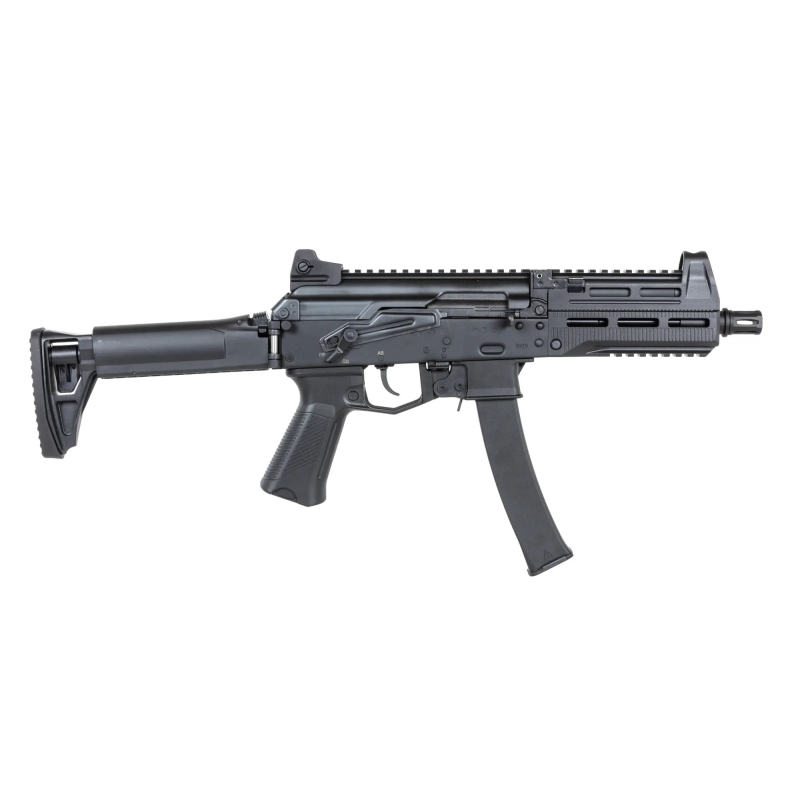

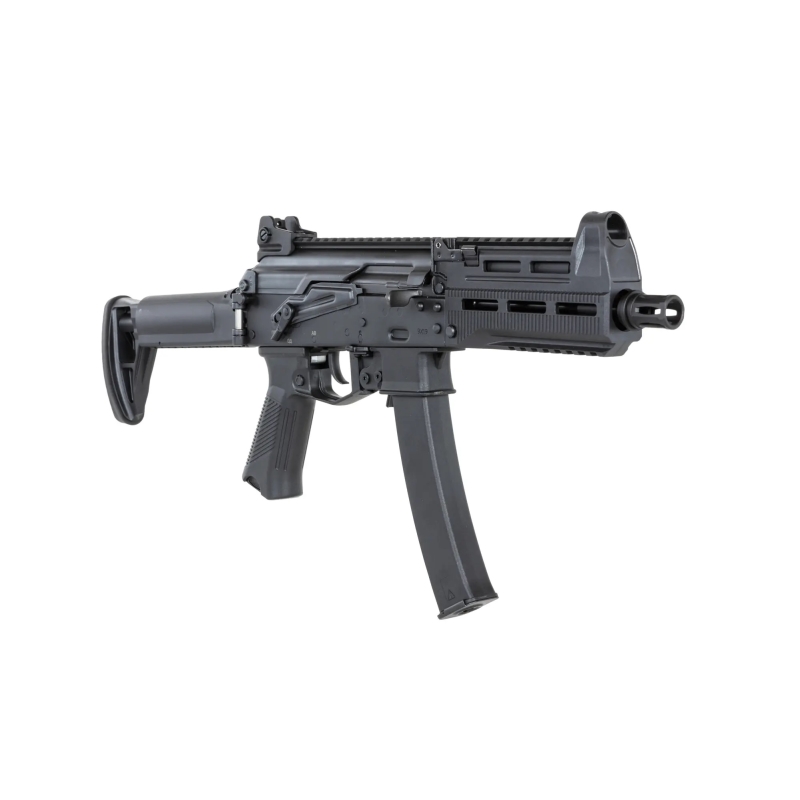

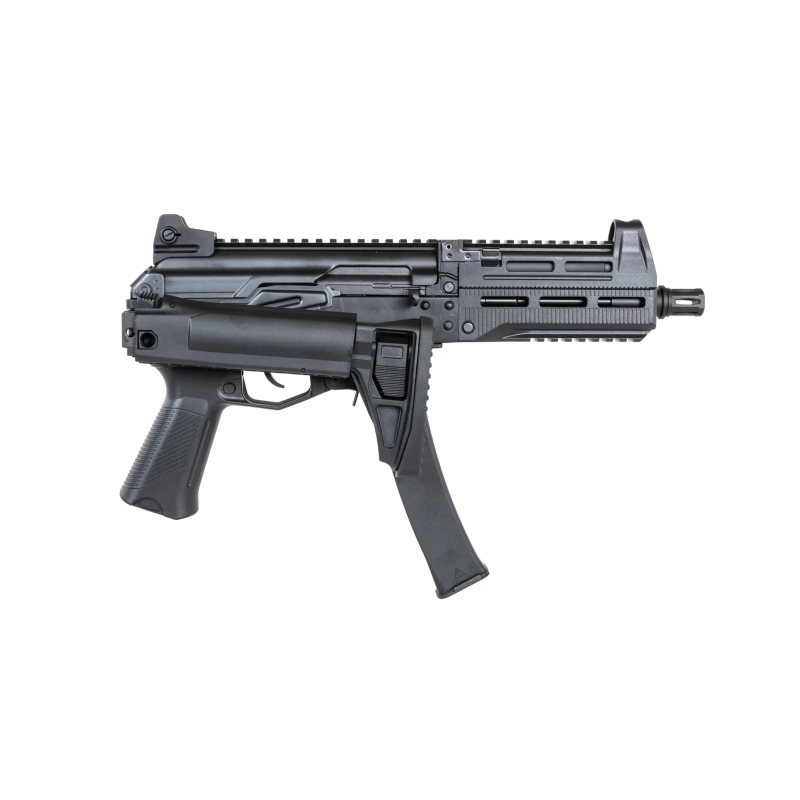

Arcturus samopal PPK20M1 PE™ M-LOK / RIS - Black

PPK20M1 PE™ by Arcturus

The PPK20M1 PE™ by Arcturus is a top-tier airsoft SMG from the latest K9 2024 series, combining advanced technology with the modernized design of the PP-19 SMG in its PPK20 version. Thanks to precision engineering and robust construction, it offers exceptional performance straight out of the box. The body is made of stamped steel with QPQ surface treatment, ensuring high durability and longevity. This is a solid piece of steel, incomparable to competitor models using alloy bodies.
Arcturus weapons are not just impressive on the outside; their internal components are equally top-tier. The SMG is equipped with a PERUN V3 PE OPTICAL MOSFET ETU, allowing customizable fire modes (Semi, 2rd Burst, Binary, Full Auto), pre-cocking function (pre-cocking) for an instant trigger response, and adjustable trigger pull length and sensitivity. The electronics also include overvoltage protection, low battery warning (Li-Po Alarm), and self-diagnostics.

Internal Components

Inside, the gun features a reinforced V3 gearbox with a quick-change spring system (QSC), making it easy to adjust the power for different airsoft environments.
The gearbox includes CNC-machined steel gears with a 13:1 ratio, modified for short-stroke 16:1 on the piston gear, powered by a high-performance 24k 21TPA neodymium motor.
The hop-up unit is an ARCTURUS RS™ rotary polymer chamber, ensuring precise BB trajectory adjustments. The precision inner barrel, 6.03 mm in diameter, is 200 mm long, making it perfect for CQB and vehicle crew operations.

External Build

The SMG’s body is made of stamped steel with a QPQ surface treatment, providing excellent protection against corrosion and wear. The front end features a nylon M-LOK handguard with both top and bottom RIS rails.
The receiver cover also includes a RIS rail for mounting optics.

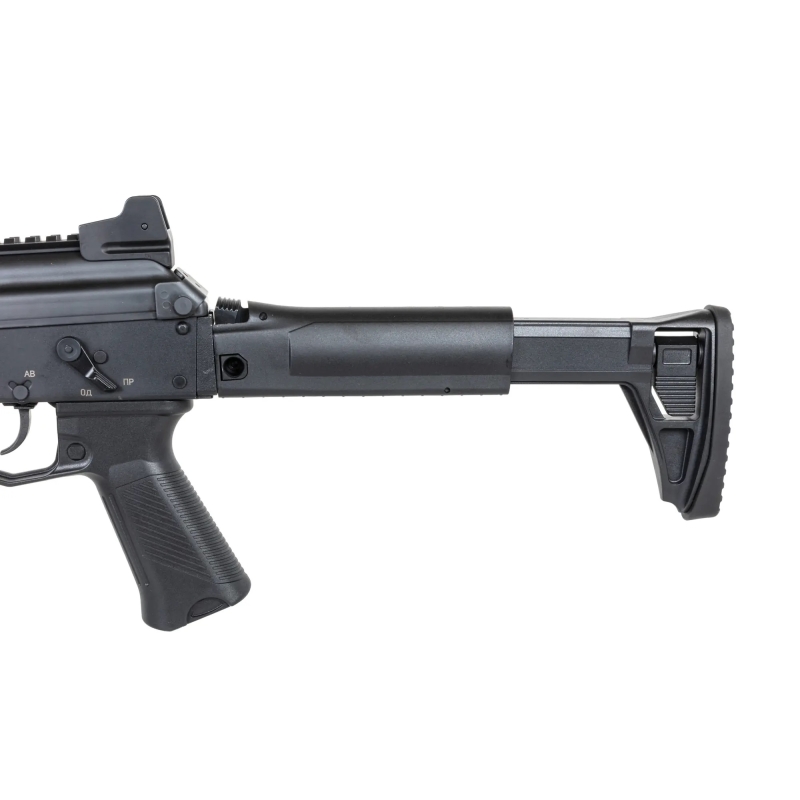

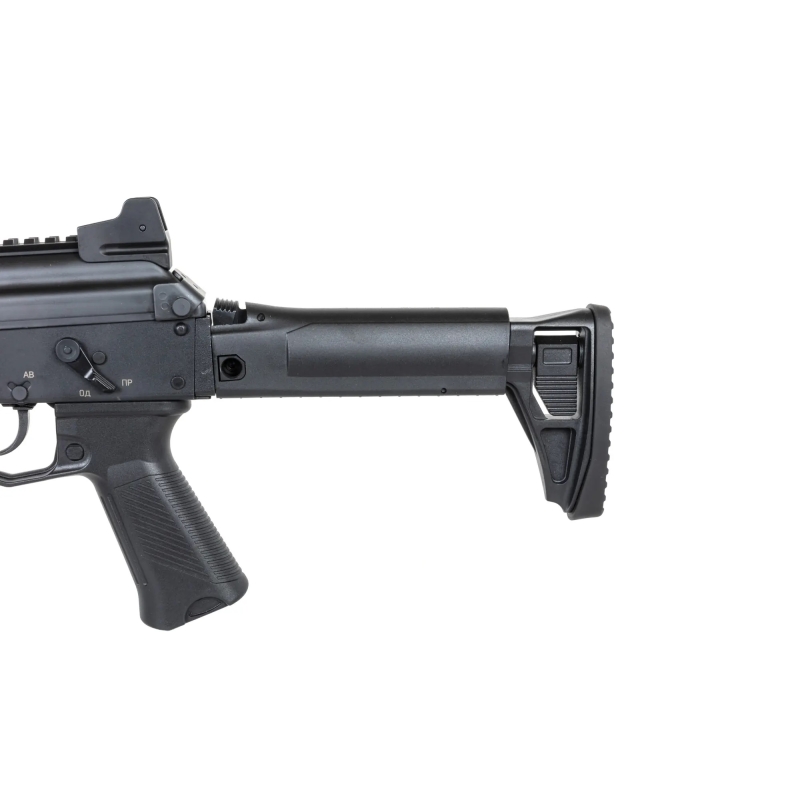

The foldable telescopic stock is made of nylon polymer, reducing the overall weight without sacrificing durability. The package also includes a flash hider, which can be easily swapped thanks to a standard 14mm CCW left-hand thread.

Key Features

• Steel Body: Stamped steel with QPQ surface treatment for maximum durability.
• Electronic Trigger Unit (ETU): Programmable trigger, active brake, and overvoltage protection.
• 21TPA Neodymium Motor: High-performance motor for quick trigger response.
• Steel Gears 13:1: CNC-machined for maximum precision and durability.
• M-LOK/RIS System: Compatible with optics, flashlights, and other accessories.
• Quick-Change Spring: Allows for easy power adjustments without disassembling the gearbox.

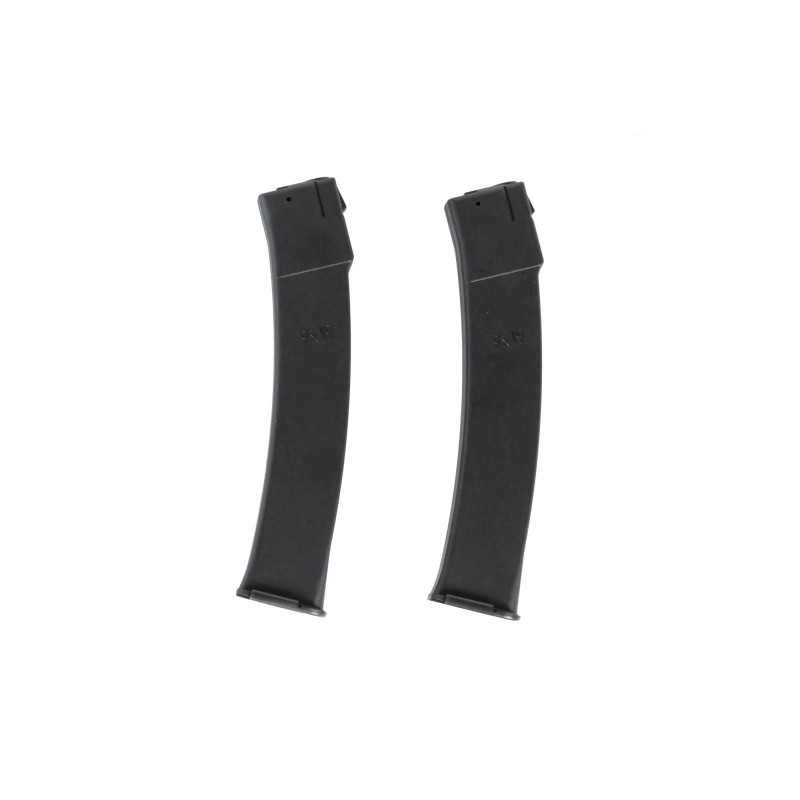

• Variable-Capacity Magazine: Switchable between realistic 30 rounds or a more game-friendly 95 BBs.

Technical Specifications

• Power Source: AEG
• Material: Steel, aluminum, polymer
• Magazine Capacity: 30 (Real-Cap) / 95 BBs (Mid-Cap)
• Gun Length: 415 – 676 mm
• Weight: 2927 g
• Velocity: 105 m/s
• Inner Barrel Length: 200 mm
• Inner Barrel Diameter: 6.03 mm
• Hop-up: Adjustable
• Fire Modes: Semi, 3rd Burst, Binary, Full Auto, Pre-cocking
• Recommended Battery: 7.4V / 11.1V Li-ion/Li-poly (not included)
• Connector: T-Dean (under receiver cover)
• Battery Type: Stick

Package Contents

• PPK20M1 PE™
• ARCTURUS PP19-01 Vityaz 30/95 BBs Magazine
• Adapter (T-Dean - Small Tamiya)
• Barrel cleaning rod
• Stickers and patches
• User manual
