MANCRAFT PDiK HPA Conversion Kit for AEG V3 (6 mm) - CNC Gearbox

PDiK Conversion Kit for AEG V3 with CNC Gearbox

This kit allows you to easily convert your AEG to a pneumatic HPA system for maximum accuracy and performance stability. Thanks to the independent moving nozzle that remains seated in the chamber during the shot, it ensures great air seal and consistency, leading to higher precision. The set includes a CNC-machined V3 gearbox made from 7075 T652 aluminum alloy, professionally modified for PDiK system installation. The system operates only in semi-auto mode, making it perfect for DMR and sniper builds. Power is fully adjustable via an external regulator (not included) in a range of approx. 7–16 bar (100–230 PSI). This is a fully mechanical system, so you don’t need electronics or batteries, and it performs flawlessly in all weather conditions. Hose diameter is 6 mm. To complete the setup, you will need an HPA regulator, a 6mm fitting to connect hose and gun, a HPA tank, and a HPA hose from regulator to gun. You also need to install the trigger, trigger stop, and fire selector plate into the gearbox. We also recommend a pouch for your HPA tank.

Key Features

• Fully mechanical system:
  No electronics or batteries – ideal for extreme weather.


• High accuracy and shot consistency:
  Nozzle remains sealed in the chamber during firing.


• Adjustable power:
  Tunable via external regulator (not included).


• Next-gen nozzle valve:
  Ensures fast response and reliable operation.


• Perfect for DMRs and snipers:
  Semi-auto only mode complies with DMR field rules.

Technical Specifications

• System Type: Pneumatic Drop-In Kit (PDiK)
• Firing Mode: Semi-auto only
• Compatibility: Rifles with AEG V3 gearbox
• Nozzle Length: 19.6 mm (can be swapped for standard AEG nozzle)
• Gearbox Material: CNC 7075 T652 aluminum
• Operating Pressure: 7–16 bar (100–230 PSI)

Approximate Muzzle Velocity (with 550 mm inner barrel & 0.20g BBs)

• 8 bar – 150 m/s (492 FPS)
• 10 bar – 165 m/s (541 FPS)
• 12 bar – 182 m/s (597 FPS)
• 16 bar – 203 m/s (666 FPS)
• 18 bar – 213 m/s (699 FPS)

Package Contents

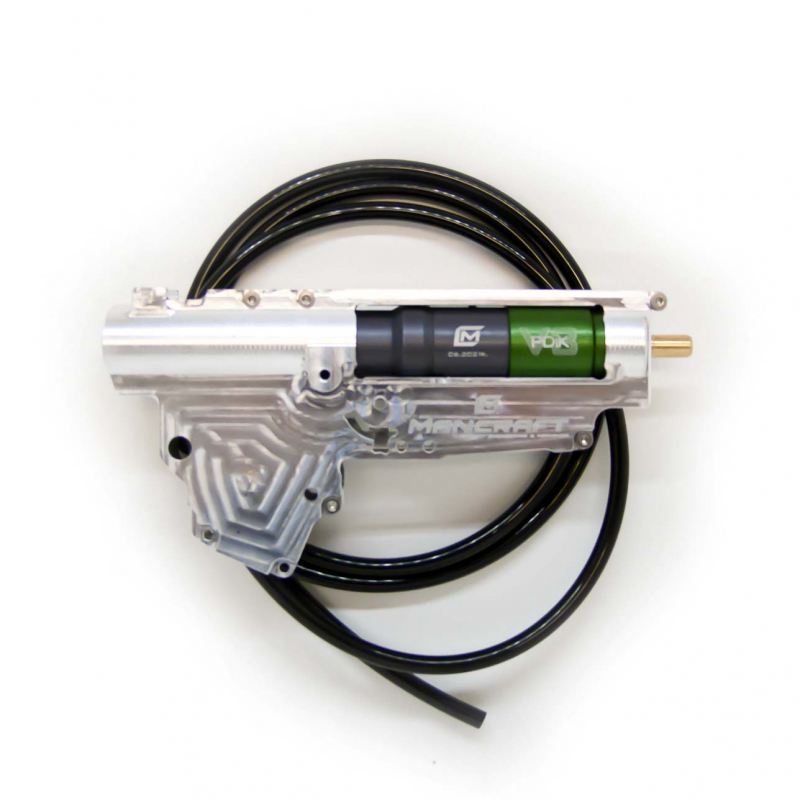

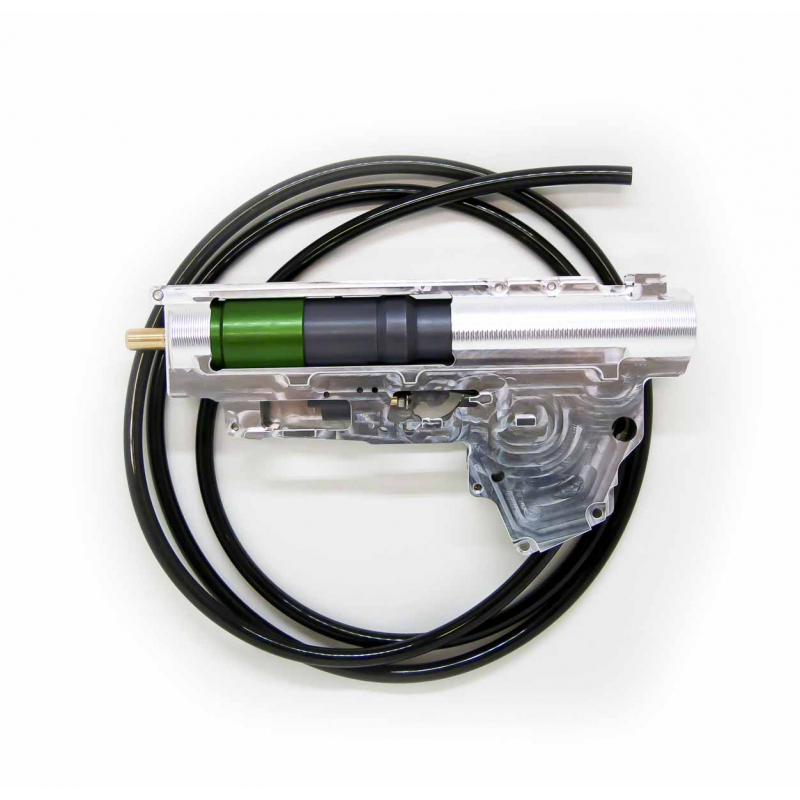

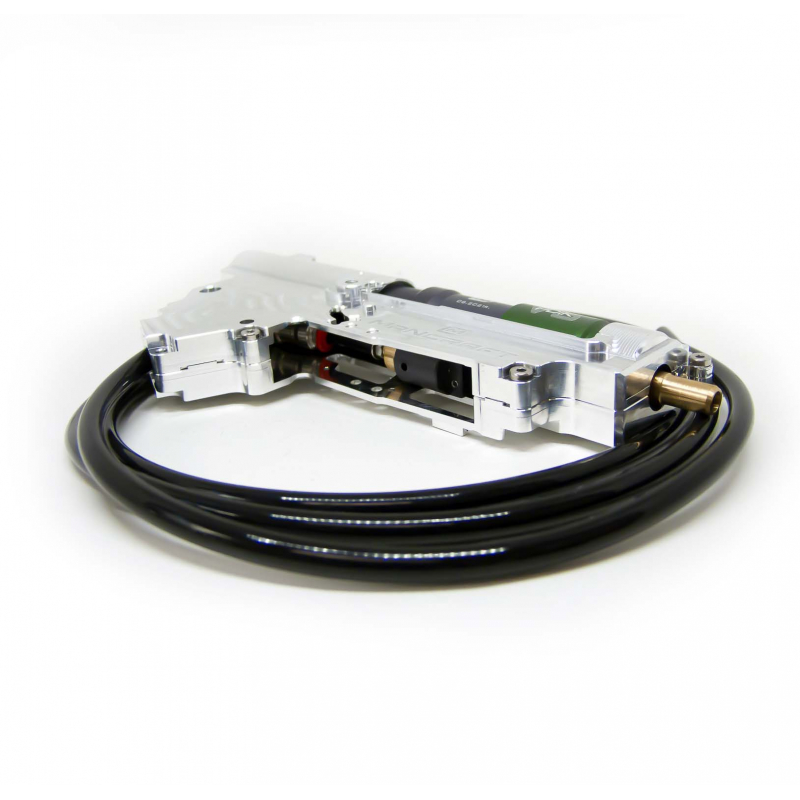

• PDiK V3 HPA Kit
• CNC V3 Gearbox (modified)
• 6mm air hose (1.2 m)

Warning

• Some guns may require minor shell modification.
• Gearbox is not complete – trigger, trigger stop, and selector plate must be installed.
• Use a proper pressure regulator (e.g., Mancraft MMR or EPeS MaxFlow) and hose adapter.
• QD fitting is not included – must be purchased separately.
• System uses 6mm hose – match your fittings accordingly.
