MANCRAFT HPA Regulator MMR 0-240 PSI - 6 mm Output

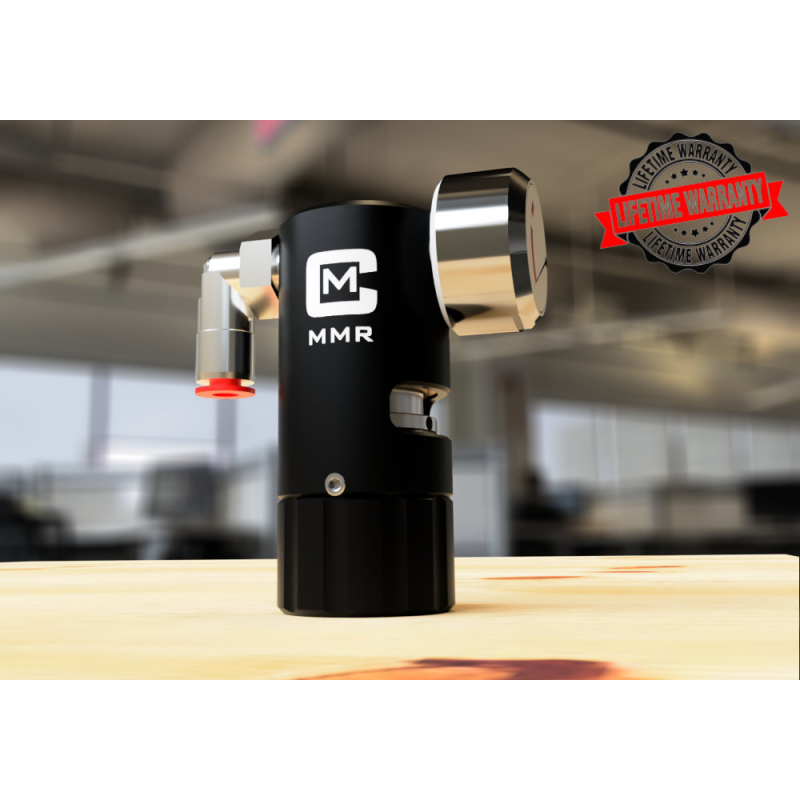

HPA Regulator MMR by Mancraft

What advantages does the MMR regulator offer over standard HPA regulators? First and foremost, it offers compact dimensions and high airflow thanks to the 4.5 mm piston. Output pressure is regulated by two included springs, allowing pressure to be adjusted in two different ranges — it comes with a pre-installed Soft spring (0–100 PSI) and an additional Hard spring (100–240 PSI). Replacing springs is quick and easy.
This regulator also features an integrated tournament lock (power lock required at airsoft events), which allows pressure to be secured using a zip-tie. The entire system consists of only 3 sealing O-rings, making maintenance easy even for beginners. It is suitable for all guns powered from an HPA bottle with G1/2" thread and offers precise pressure regulation via the side screw. For more information about HPA systems, check out our article How to Build an HPA Setup.

Key Features

• High airflow and refresh rate:
  4.5 mm piston ensures smooth operation even at high RoF.


• Adjustable output pressure:
  From 0 to 100 and 100 to 240 PSI depending on the spring used.


• Tournament lock:
  Secures output against changes using a zip-tie.


• Compact body:
  Dimensions only 25 x 56 mm.


• Easy maintenance:
  Only 3 O-rings for maximum reliability.

Technical Specifications

• Output pressure: 0–240 PSI (4–17 bar)

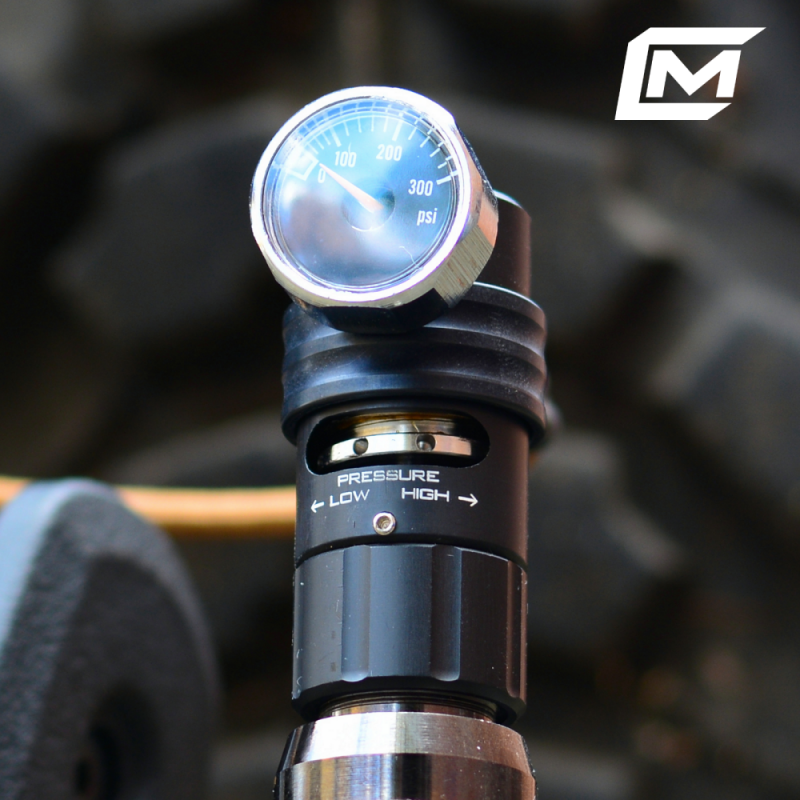

• Pressure adjustment: Side screw (turning increases pressure)
• Input thread: G1/2" (paintball HP bottles)
• Gas type: HPA
• Body dimensions: 25 x 56 mm
• Connector type: 6 mm (fitting)
• Springs: Soft (0–100 PSI), Hard (100–240 PSI)
• Gauge: Displays output pressure
• Compatibility: Paintball bottles with PIN and ON/OFF valves

Package Contents

• MMR regulator - 6 mm (fitting)
• Mounting accessories

Notice

Before use, carefully read the manual (download here) and strictly follow the instructions provided.
