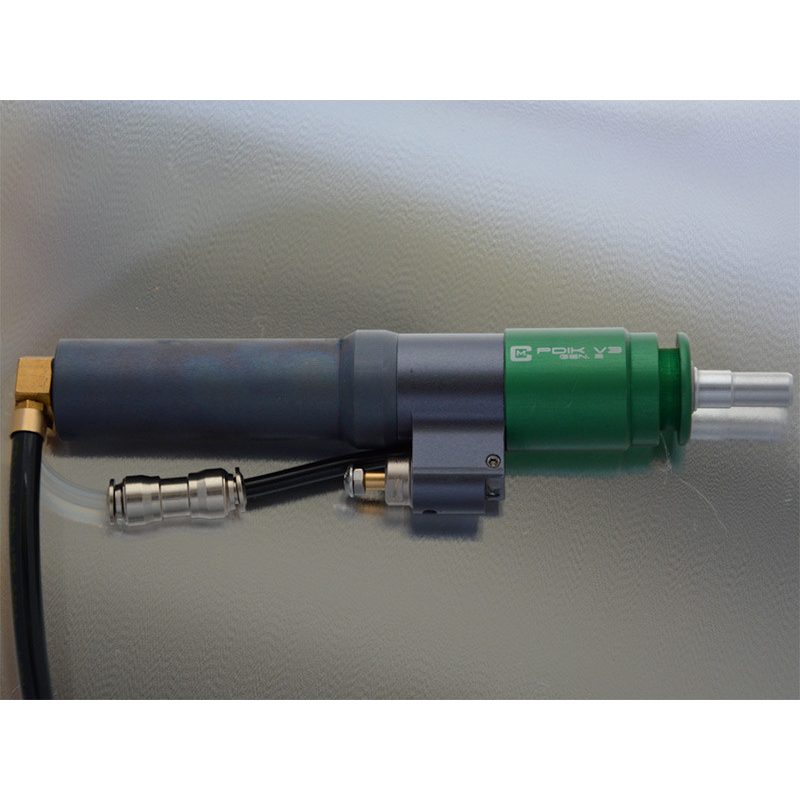

MANCRAFT PDiK HPA Conversion Kit for AEG V3 (6 mm) - Without Gearbox

PDiK Conversion Kit for AEG V3

This set allows easy conversion of your AEG rifle to a pneumatic HPA system for maximum accuracy and consistent performance. Thanks to the independently moving nozzle, which stays inside the chamber during firing, the system provides excellent seal and shooting consistency for improved accuracy. The kit does not include the V3 gearbox, which must come from your own rifle. The system only operates in semi-auto mode, ideal for DMR builds. The output power is fully adjustable via a pressure regulator (not included) in the range of approx. 7–16 bar (100–230 PSI). The system is entirely mechanical – no electronics or batteries required, and it works reliably in any weather. Hose diameter is 6 mm. To complete the system, you’ll need a HPA regulator, a 6mm QD connector between hose and rifle, a HPA tank, and of course a HPA hose between the rifle and regulator. You’ll also need to install the trigger, trigger stop, and fire selector plate inside the gearbox. A pouch for the HPA tank is also recommended.

Key Features

• Fully mechanical system:
  No electronics or batteries – ideal for harsh conditions.


• High accuracy and shot consistency:
  Nozzle stays fixed inside the chamber for perfect sealing.


• Adjustable power:
  Tuned using an external pressure regulator (not included).


• New generation nozzle valve:
  Ensures fast response and reliable operation.


• Ideal for DMR setups:
  Semi-auto only – meets DMR rules on most fields.

Technical Specifications

• System type: Pneumatic Drop-In Kit (PDiK)
• Fire mode: Semi-auto only
• Compatibility: Rifles with AEG V3 gearbox (gearbox not included)
• Nozzle length: 19.6 mm (can be replaced with another AEG nozzle)
• Operating pressure: 7–16 bar (100–230 PSI)

Approximate Muzzle Velocity (0.20g BB, 550mm inner barrel)

• 8 bar – 150 m/s (492 FPS)
• 10 bar – 165 m/s (541 FPS)
• 12 bar – 182 m/s (597 FPS)
• 16 bar – 203 m/s (666 FPS)
• 18 bar – 213 m/s (699 FPS)

Package Contents

• PDiK V3 HPA Kit (without gearbox)
• 6mm air hose (1.2 m)

Warnings

• Some gearboxes may require minor modifications for smooth PDiK installation.
• You must install the trigger, trigger stop, and selector plate in your gearbox.
• Use a proper pressure regulator (e.g. Mancraft MMR or EPeS MaxFlow) and hose reducer.
• Kit does not include QD fitting – must be purchased separately.
• PDiK HPA kits use 6mm hose – be sure to match your connectors accordingly.
