VO CANT 20MOA 34mm One-Piece Scope Mount - Black

One-Piece CANT 20MOA Mount by Vector Optics

Looking for a reliable RIS mount for your 34 mm rifle scope that guarantees maximum stability and accuracy? Need a robust one-piece mount suitable for any optic from LPVO to tactical scopes with large objective lenses? Then the Vector Optics X-ACCU 34 mm CANT 20MOA is the perfect solution. This mount provides a 20MOA inclined angle MOA, ideal for professional long-range shooters. It ensures the scope is angled downward relative to the barrel, allowing the shooter to extend elevation adjustment and properly compensate for bullet drop at long distances. With 12 Torx T15 screws (2×3 per ring), the mount offers exceptional grip and stability even during heavy recoil. Designed for a standard 21 mm RIS rail, it also includes an anti-retreat bar that prevents any movement during firing. The high-strength aluminium alloy body with durable hard anodising keeps the mount lightweight, rigid, and long-lasting, while the matte black finish ensures a clean tactical look.

Demonstration of the difference between 0MOA and 20MOA versions

Key Features

• 20MOA incline:
  Perfect for long-range shooting with proper ballistic compensation.


• Reinforced one-piece body:
  Twelve screws ensure superior optical stability.


• Durable material:
  Aluminium alloy with hard anodising for long service life.


• Compatibility:
  For all rifle scopes and LPVOs with a 34 mm tube.


• RIS / Picatinny mounting:
  Universal 21 mm rail compatibility.


• Professional-grade design:
  Suitable for tactical and military applications.

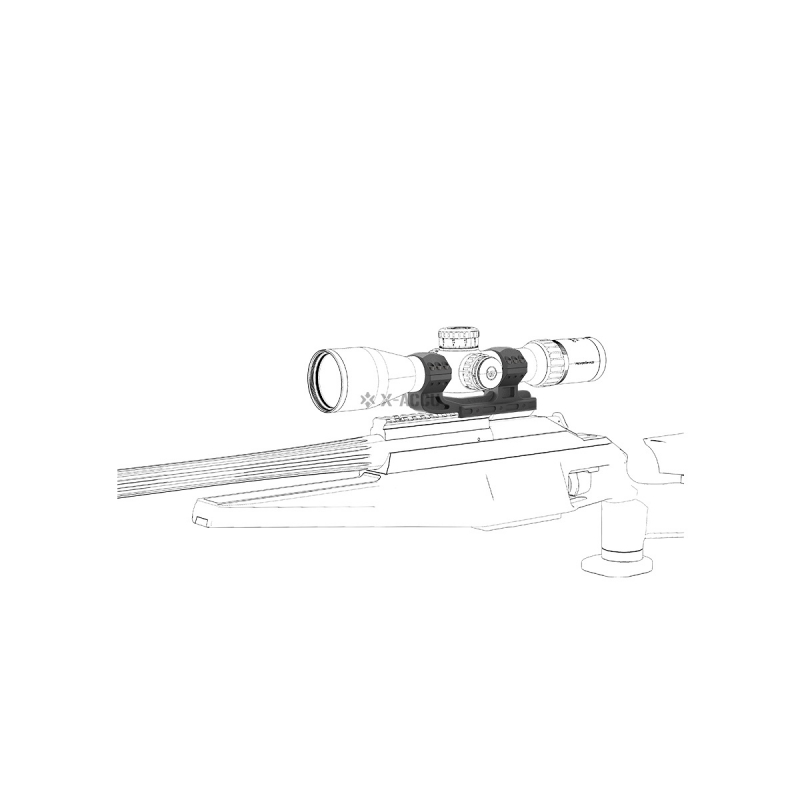

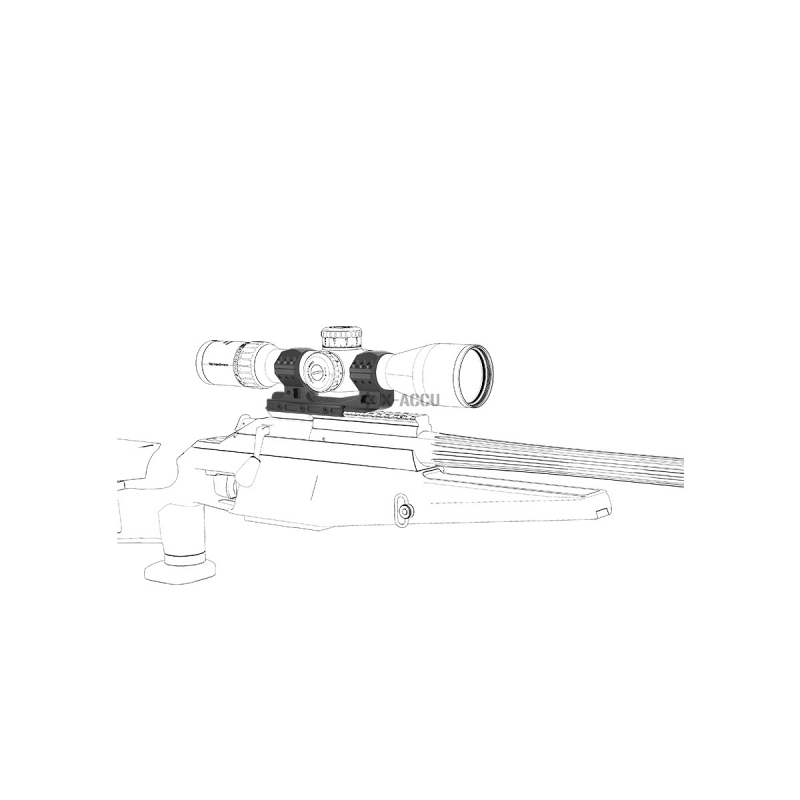

Example of the mount installed on a rifle

Technical Specifications

• Ring diameter: 34 mm
• Total length: 147 mm
• Total height: 64 mm
• Ring width: 26 mm
• Centre height: 40 mm (base to centre)
• Ring spacing: 70 mm
• Mounting system: RIS / Picatinny (21 mm)
• Material: High-strength aluminium alloy
• Finish: Hard anodised, matte black
• Screws: 12 (2×3 per ring, Torx T15)
• Weight: 212 g
• Incline: 20MOA (straight axis)
• Maximum objective diameter: 65 mm

Warnings

• Tightening torque: Max. 2 Nm for ring screws.
• Mounting torque: 2.8 Nm (max. 5 Nm) for attaching to the RIS rail.

Package Contents

• Vector Optics X-ACCU CANT 20MOA one-piece mount
• T15 Torx key
