VO 30mm CANTILEVER Mounting Rings, Medium - Black

Vector Optics CANTILEVER Scope Rings

Looking for scope rings that keep your optic absolutely solid? Want reliable mounting even on stronger calibres without losing zero? Then reach for the Vector Optics CANTILEVER rings designed for professional shooters. These rings are made from a high-strength aluminium alloy that provides excellent rigidity, long service life, and low weight. With four screws on each ring, the clamping force is perfectly distributed, keeping your optic locked in place even under strong recoil. The rings use T15 TORX screws for secure tightening and long-term durability. The matte black finish pairs well with tactical firearms and protects the surface from scratches and corrosion. They are designed for standard RIS rails and offer an ideal mounting option for military, sporting, airsoft, and hunting rifle scopes. The rings are compatible with X-ACCU mounts. A cantilever mount is a special type of mounting solution with an extended forward offset. This design allows you to move the optic further forward without attaching it to the distant part of the rail. Cantilever mounts are widely used on AR-15 and similar platforms, where achieving proper eye relief for rifle scopes or LPVO optics is essential.

Example of the mounting rings installed with a rifle scope

Key Features

• 30mm ring diameter:
  Compatible with rifle scopes and LPVO optics using a 30mm tube.


• Ideal height:
  Centre height 32 mm for a comfortable shooting position.


• Secure screw-mounted design:
  Four T15 TORX screws per ring for a firm and even grip.


• Lightweight and durable construction:
  Made from high-strength 6061-T6 aluminium alloy.


• RIS compatibility:
  Fits all standard RIS rails.


• Professional appearance:
  Matte black anodised surface resistant to scratches.

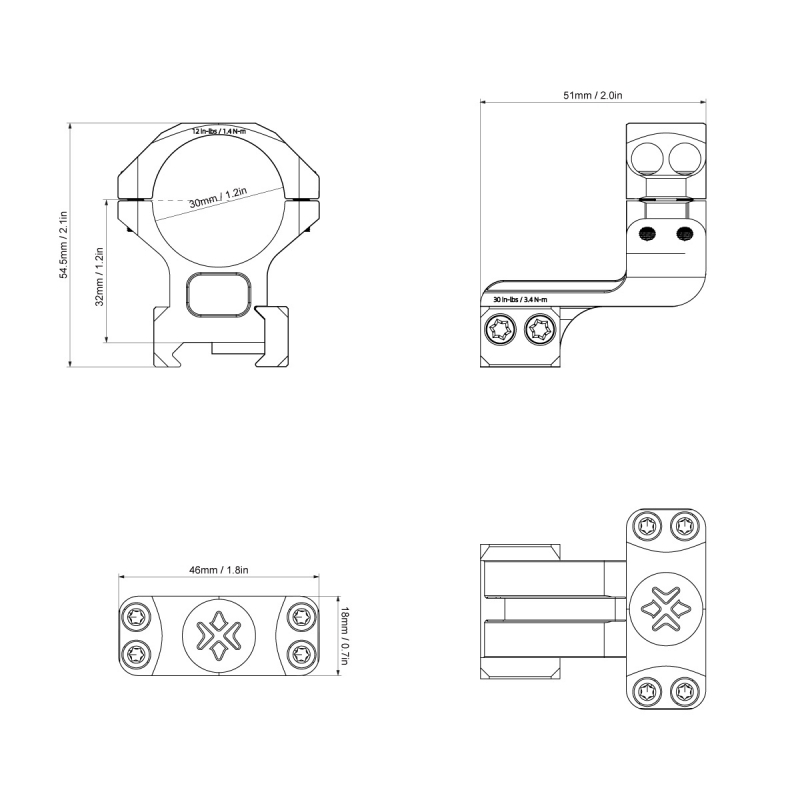

Technical Specifications

• Inner ring diameter: 30mm
• Centre height: 32 mm (1.25")
• Material: High-strength aluminium alloy
• Mounting: RIS rail (21 mm)
• Type: Fixed CANTILEVER mount
• Colour: Matte black
• Recommended torque (ring screws): Max. 2 Nm
• Recommended torque (RIS clamp): 2.8 Nm

Package Contents

• 2× Vector Optics 30mm CANTILEVER scope ring (four screws)
• T15 Torx key
