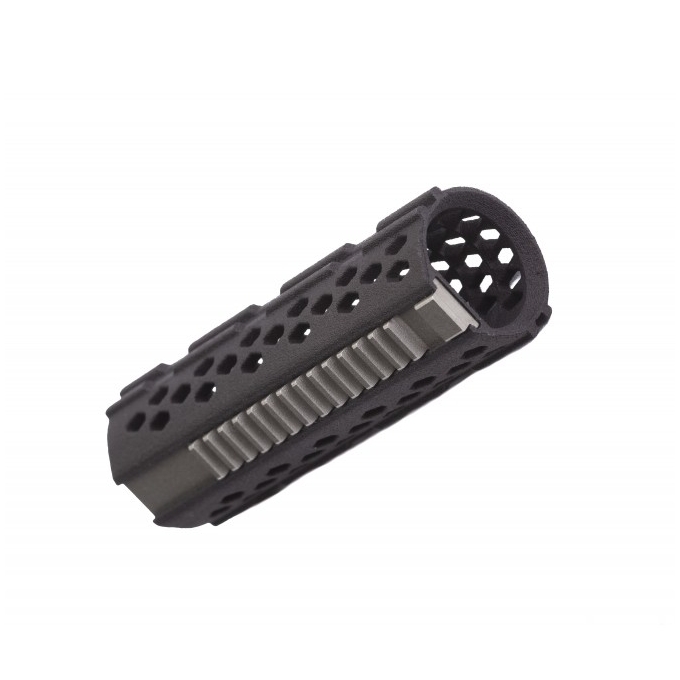

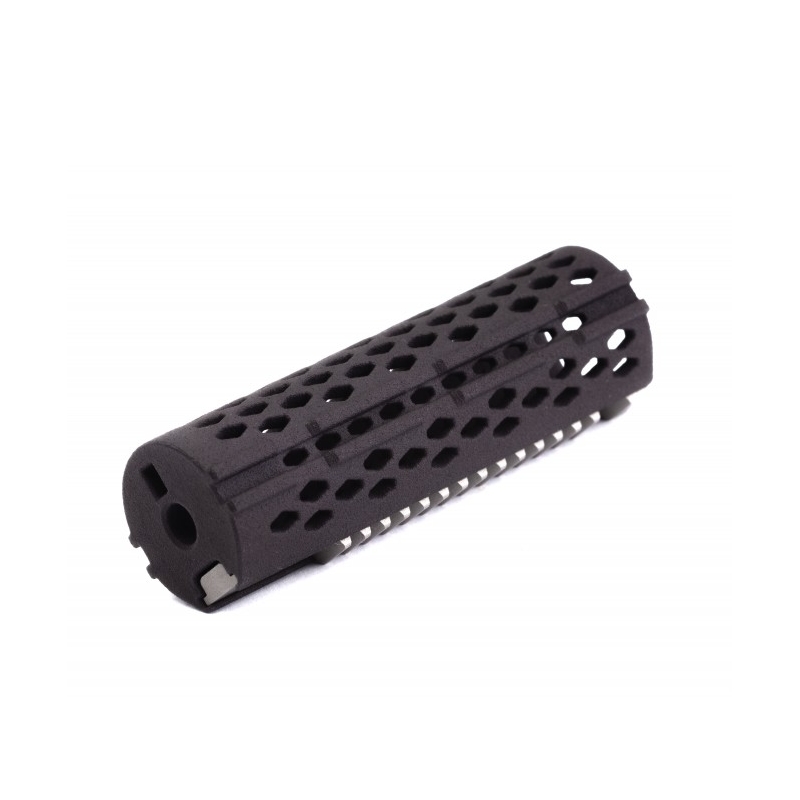

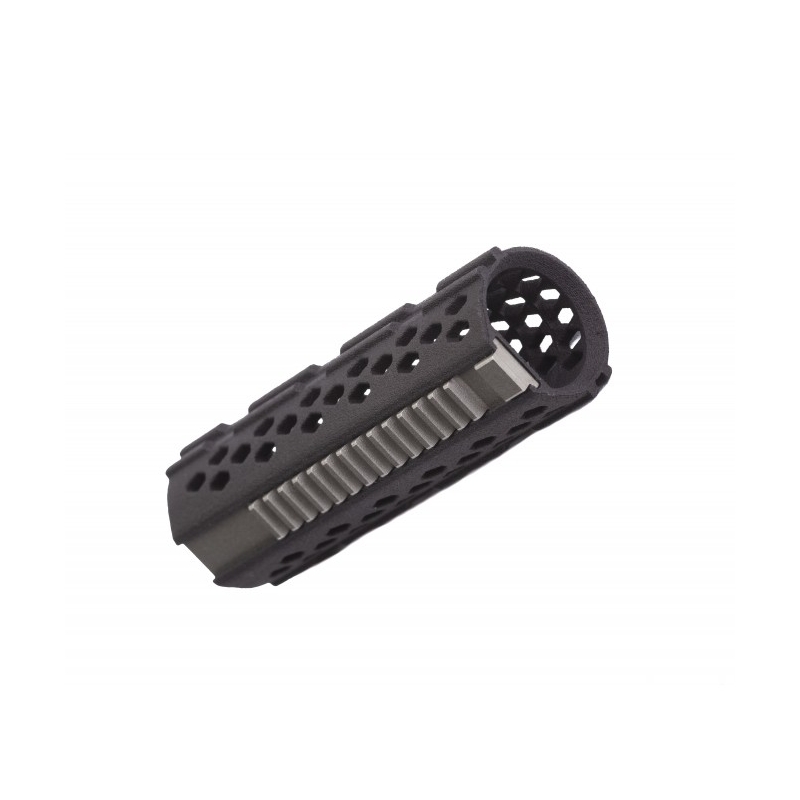

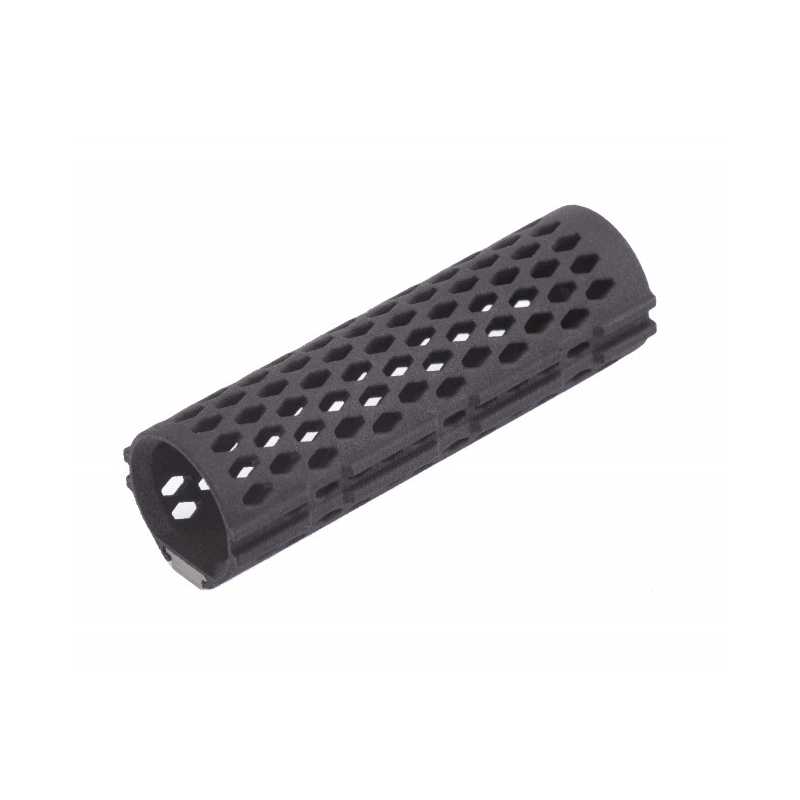

AirsoftParts ULTRA LIGHT Piston with Full Metal Teeth
AirsoftParts ULTRA LIGHT piston with full metal teeth is a lightweight AEG piston with a bionically shaped high-strength plastic body and a metal rack with 14 teeth. The design reduces the weight to just 13.3 g while maintaining the required rigidity. The piston is designed for springs up to M130, RoF up to 20 BB/s and standard V2, V3, V6 and V7 gearboxes.
Another product variants
BlackOut stock
RedOut stock
25+ years of proven equipment and accessories.
Accessories
12,64 € In StockAirsoftParts ULTRA LIGHT Piston HeadASPARTS009
AirsoftParts ULTRA LIGHT piston head is an extremely lightweight CNC-machined piston head made from TECAFORM (POM), weighing just 5.4 g. Its lightweight design with 9 front holes promotes effective O-ring sealing while reducing the moving mass of the piston assembly. It is designed for V2, V3 and V7 gearboxes with springs up to M130.
12,64 €In Stock
12,64 € In StockAirsoftParts TECAFORM 2013 Piston HeadASPARTS012
AirsoftParts TECAFORM 2013 piston head is a lightweight CNC-machined piston head made from TECAFORM (POM), weighing 8.7 g and designed for V2, V3 and V7 gearboxes with springs up to M150. It features 9 holes for pressure-assisted sealing, a guide O-ring for centering inside the cylinder, an axial ball bearing and a through-locking nut for secure mounting.
12,64 €In Stock
16,87 € In StockAirsoftParts Silent Cylinder HeadASPARTS014
AirsoftParts silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. The integrated sealing collar with a large 80 ShA impact pad helps seal the air system while cushioning piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts AEG Ribbed Cylinder – Ported (200–400 mm)ASPARTS021
AirsoftParts ported cylinder is a stainless steel cylinder for AEGs with an inner barrel length of 200–400 mm, such as M4 or MP5. Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference.
16,87 €In Stock
10,53 € In StockAirsoftParts AP120 AEG SpringASPARTS135
AirsoftParts AP120 AEG spring is a progressive M120 spring designed for upgrading airsoft guns to increase performance. It is made from high-quality valve spring wire from Germany, undergoes heat treatment and features variable coil spacing for progressive characteristics. The design focuses on long-term force stability, while the color-coded end allows...
10,53 €In Stock
10,53 € In StockAirsoftParts AP110 AEG SpringASPARTS140
AirsoftParts AP110 AEG spring is a progressive M110 spring designed for upgrading airsoft guns to increase performance. It is made from high-quality valve spring wire from Germany, undergoes heat treatment and features variable coil spacing for progressive characteristics. The design focuses on long-term force stability, while the color-coded end allows...
10,53 €In Stock- SA PTFE Teflon Grease (50 g)
SPARMS440
Specna Arms PTFE grease in a practical 50 g package is a service lubricant for mechanically stressed parts of airsoft guns. It is particularly suitable for gearbox gears, piston racks and sliding surfaces. The PTFE additive reduces friction and wear while helping to ensure smooth operation of the mechanism.
6,77 €On the way
AirsoftParts ULTRA LIGHT Piston With Full Metal Teeth
AirsoftParts ULTRA LIGHT PST-UL is a significantly lightened AEG piston combining a high-strength plastic body with a full metal tooth rack with 14 teeth. The shape of the plastic body is based on a bionic design that uses material primarily in areas important for strength and rigidity while reducing the overall weight to just 13.3 g. The low weight means less inertia in the moving assembly, which is beneficial for a fast operating cycle and helps reduce dynamic stress on the gearbox. The second engagement tooth has been removed, providing clearance for proper sector gear engagement and AOE adjustment. For long-term operation, the piston is designed for a maximum M130 spring and RoF up to 20 BB/s. It is compatible with standard V2, V3, V6 and V7 gearboxes, but not with special designs such as PSG-1, SR25 or L85. When building a lightweight piston assembly, we recommend checking not only the piston weight itself, but also the AOE, tooth engagement, timing and free movement of the piston in the guide rails.
Key Features
Ultra-Low Weight of 13.3 g
The lightweight design reduces the piston weight to just 13.3 g, reducing the inertia of moving components during the AEG operating cycle.
Bionic Body Design
The specially shaped high-strength plastic body uses a bionic design focused on low weight while maintaining the required strength and rigidity.
Full Metal Tooth Rack
The piston features a metal rack with 14 teeth, forming the mechanically stressed section that transfers force from the sector gear.
Modified Second Tooth
The removed second engagement tooth provides clearance for proper AOE adjustment and suitable sector gear engagement with the piston teeth.
For M130 Springs and RoF up to 20 BB/s
For long service life, use with a maximum M130 spring and RoF up to 20 BB/s is recommended, always taking the overall gearbox tuning into account.
Technical Specifications
- Model: PST-UL
- Type: lightweight AEG piston with full metal tooth rack
- Body material: high-strength plastic
- Body design: bionic, lightweight
- Teeth: full metal rack
- Number of teeth: 14
- Tooth modification: second engagement tooth removed
- Lightening: yes
- Weight: 13.3 g
- Maximum recommended spring: M130
- Maximum recommended RoF: 20 BB/s
- Compatible gearboxes: V2, V3, V6, V7
- Incompatible designs: special PSG-1, SR25, L85 gearboxes and similar designs
- Country of manufacture: Czech Republic
Package Contents
- 1× AirsoftParts ULTRA LIGHT piston with full metal teeth
Frequently Asked Questions (FAQ)
How Does the ULTRA LIGHT Piston Differ From a Standard AEG Piston?
The main difference is the bionically lightened body and weight of just 13.3 g. The lower weight reduces the inertia of the moving assembly, while the metal rack provides durable teeth at the point of contact with the sector gear.
What Spring and RoF Can Be Used With the Piston?
For long-term operation, a maximum M130 spring and RoF up to 20 BB/s are recommended. Both limits should be observed simultaneously while also taking the other components of the setup into account.
Why Is the Second Piston Tooth Removed?
Removing the second tooth provides clearance for proper sector gear engagement and correct AOE adjustment. During installation, we recommend checking the actual engagement according to the specific combination of gears, piston and piston head.
Which Gearboxes Is the ULTRA LIGHT Piston Designed For?
The piston is compatible with standard V2, V3, V6 and V7 gearboxes. It is not designed for special or extended configurations such as PSG-1, SR25 or L85.
| Variants | ULTRA LIGHT |
| Color | Grey |
| Body/receiver material | ABS / Plastic |
| Amount of piston teeth | 14 |
