AirsoftParts Piston with Full Metal Teeth
AirsoftParts piston with full metal teeth combines a durable high-strength plastic body with a full metal rack with 14 teeth. The new Gen. 1.2 features a solid front section without lightening and weighs 15.6 g. The piston is designed for standard V2, V3, V6 and V7 AEG gearboxes and setups with springs up to M160.
Another product variants
RedOut stock
GreyOut stock
25+ years of proven equipment and accessories.
Accessories
12,64 € In StockAirsoftParts TECAFORM Piston HeadASPARTS008
AirsoftParts TECAFORM piston head is a lightweight CNC-machined piston head made from TECAFORM (POM) engineering plastic, weighing just 9.3 g. Nine holes on the front use air pressure to expand the sealing O-ring for an effective seal inside the cylinder. It also features an axial ball bearing that allows the spring to rotate more freely during compression.
12,64 €In Stock
12,64 € In StockAirsoftParts DURAL 2013 Piston HeadASPARTS010
AirsoftParts DURAL 2013 piston head is a durable CNC-machined piston head made from EN AW 6012 T6 duralumin, designed for V2, V3 and V7 gearboxes with springs up to M170. It features pressure-assisted sealing through 9 front holes, a guide O-ring for centering inside the cylinder and an axial ball bearing that allows the spring to rotate more freely...
12,64 €In Stock
16,87 € In StockAirsoftParts AEG Ribbed Cylinder – Full (400+ mm)ASPARTS020
AirsoftParts full ribbed cylinder is a precisely manufactured stainless steel air seal upgrade part for AEGs with an inner barrel over 400 mm. The new Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference...
16,87 €In Stock
23,22 € In StockAirsoftParts Silent Piston HeadASPARTS137
AirsoftParts silent piston head is a CNC-machined piston head made from EN AW 6012 T6 duralumin with a pneumatic brake that creates an air cushion before impact to reduce noise and dynamic shock. It features 9 holes for pressure-assisted sealing, an axial ball bearing and a polished surface. Designed for V2 and V3 gearboxes with springs up to M150.
23,22 €Out of stock- SA PTFE Teflon Grease (50 g)
SPARMS440
Specna Arms PTFE grease in a practical 50 g package is a service lubricant for mechanically stressed parts of airsoft guns. It is particularly suitable for gearbox gears, piston racks and sliding surfaces. The PTFE additive reduces friction and wear while helping to ensure smooth operation of the mechanism.
6,77 €On the way

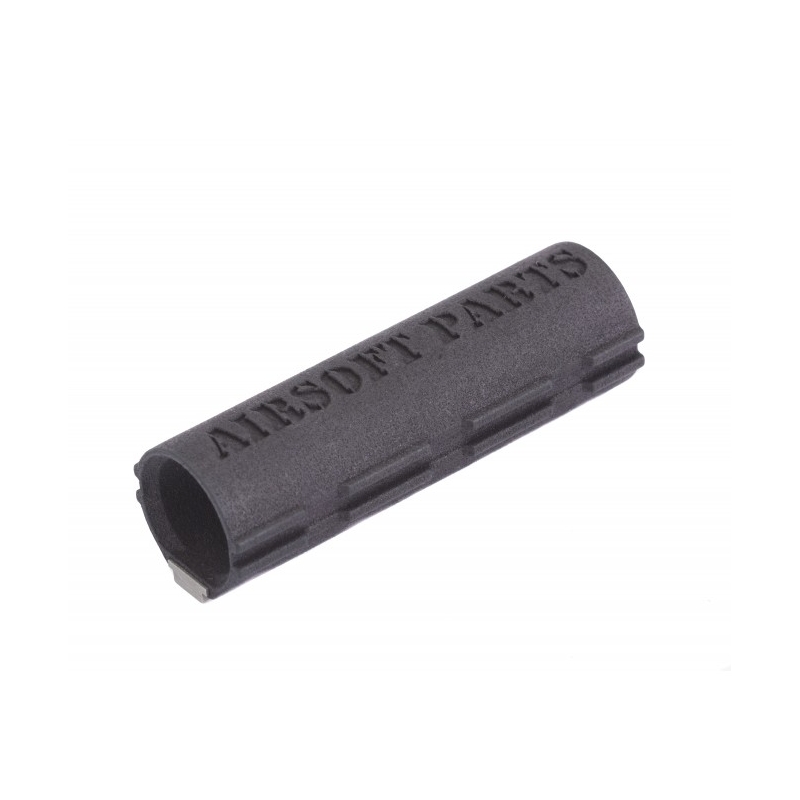

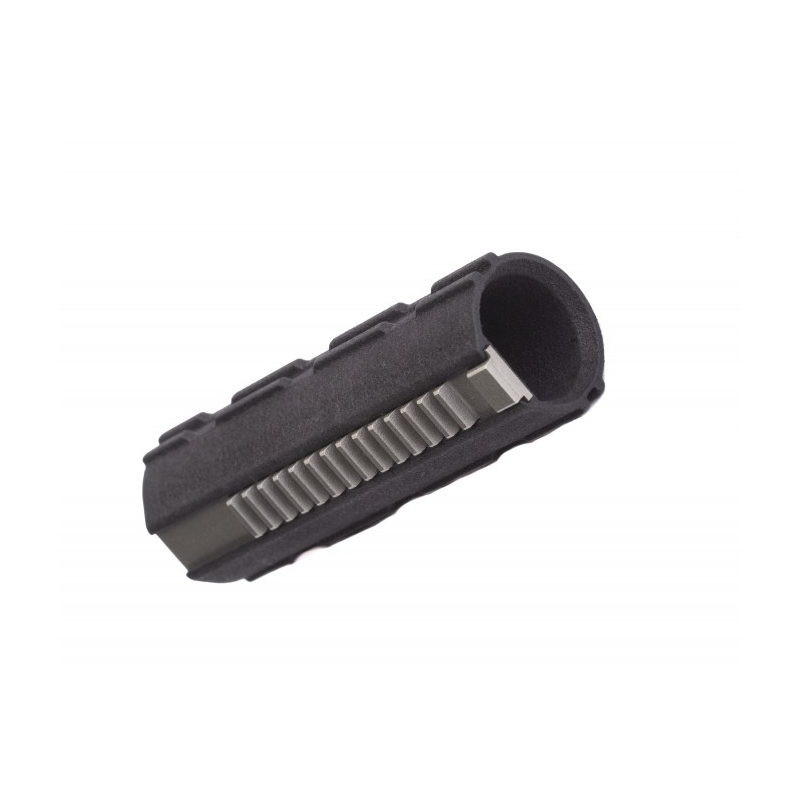

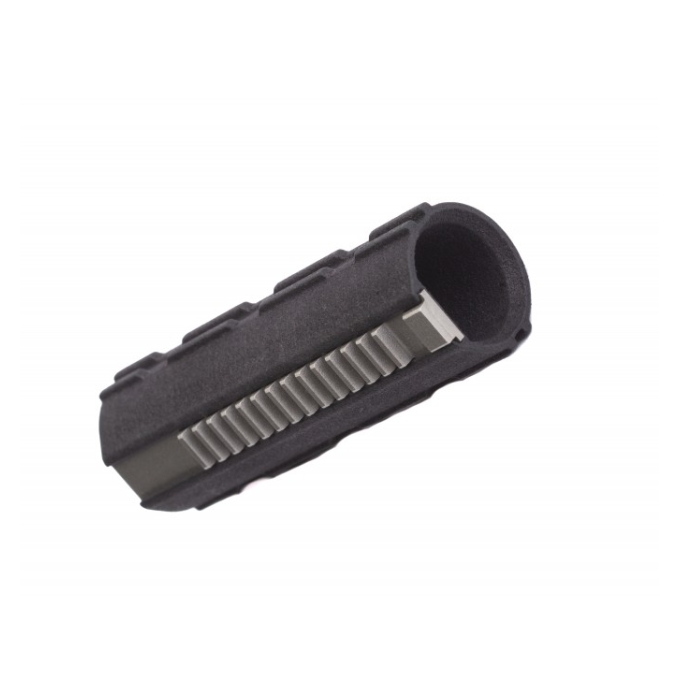

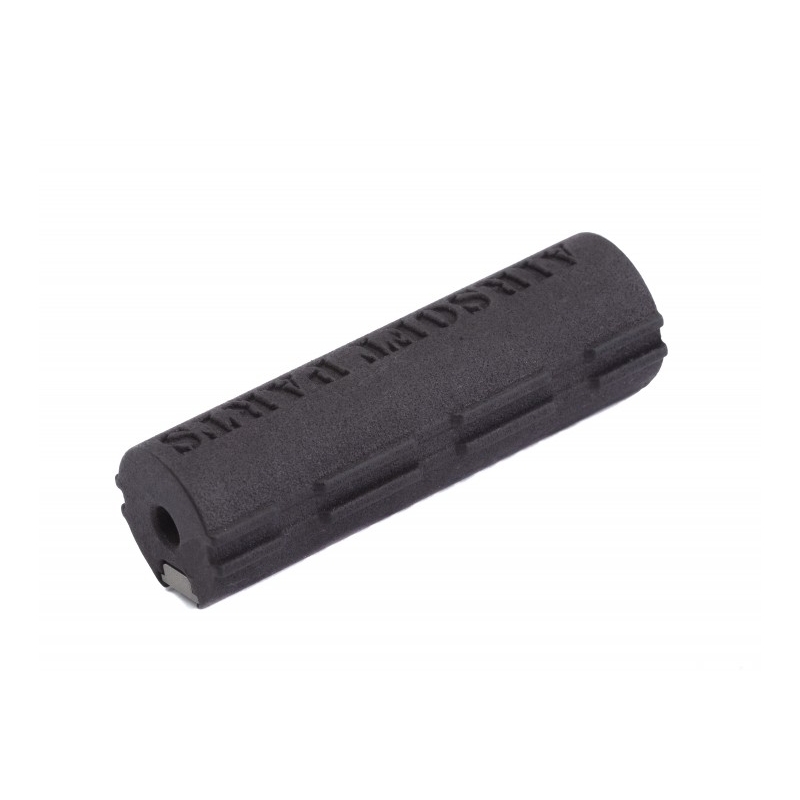

AirsoftParts Piston With Full Metal Teeth
AirsoftParts piston with full metal teeth is a durable AEG piston consisting of a high-strength plastic body and a metal rack with 14 teeth. The second engagement tooth has been removed, providing clearance for proper sector gear engagement and AOE adjustment while also helping in case of brief gun jams. The current Gen. 1.2 no longer has a lightened front section and has a total weight of 15.6 g. The piston is designed for springs up to M160 and is compatible with standard V2, V3, V6 and V7 gearboxes. It is not designed for extended or otherwise specific gearbox designs such as PSG-1, SR25 or L85. During installation, we recommend always checking the AOE, free movement of the piston in the guide rails and actual engagement of the sector gear with the metal rack – correct alignment of these components has a major impact on the reliability of the entire setup.
Key Features
Full Metal Tooth Rack
The piston uses a metal rack with 14 teeth, forming the mechanically stressed section that transfers force from the sector gear to the piston.
Durable Plastic Body
The piston body is made from high-strength plastic, combining low piston weight with durable metal teeth.
Modified Second Tooth
The removed second engagement tooth provides clearance for proper AOE adjustment and helps reduce unwanted tooth contact during the operating cycle.
For Springs up to M160
The piston is designed for AEG setups with a maximum recommended M160 spring. Actual suitability should always be assessed according to the complete gearbox configuration.
Wide AEG Compatibility
The piston is compatible with standard V2, V3, V6 and V7 gearboxes, except for special designs such as PSG-1, SR25 or L85.
Technical Specifications
- Model: PST
- Generation: 1.2
- Type: AEG piston with full metal tooth rack
- Body material: high-strength plastic
- Teeth: full metal rack
- Number of teeth: 14
- Tooth modification: second engagement tooth removed
- Front section lightening: no
- Weight: 15.6 g
- Maximum recommended spring: M160
- Compatible gearboxes: V2, V3, V6, V7
- Incompatible designs: special PSG-1, SR25, L85 gearboxes and similar designs
- Country of manufacture: Czech Republic
Package Contents
- 1× AirsoftParts piston with full metal teeth Gen. 1.2
Frequently Asked Questions (FAQ)
What Is the Difference Between Gen. 1.2 and the Older Version?
In Gen. 1.2, the lightening of the piston's front section has been removed. The current version therefore weighs 15.6 g, while the older lightened version weighed 14.95 g.
Why Has the Second Tooth Been Removed?
The modification of the second tooth provides clearance for better sector gear engagement with the piston teeth and proper AOE adjustment. It also helps reduce unwanted tooth contact during the operating cycle.
What Power Setup Is the Piston Designed For?
The maximum recommended spring is M160. For higher-performance setups, we recommend assessing the gearbox as a whole – the gears, motor, spring, piston head, AOE, overall timing and mechanical load are all important.
Is the Piston Compatible With an SR25 Gearbox?
No. Although the piston is designed for standard V2, V3, V6 and V7 gearboxes, it is not intended for special designs such as SR25, PSG-1 or L85.
| Color | Black |
| Body/receiver material | ABS / Plastic |
| Amount of piston teeth | 14 |
