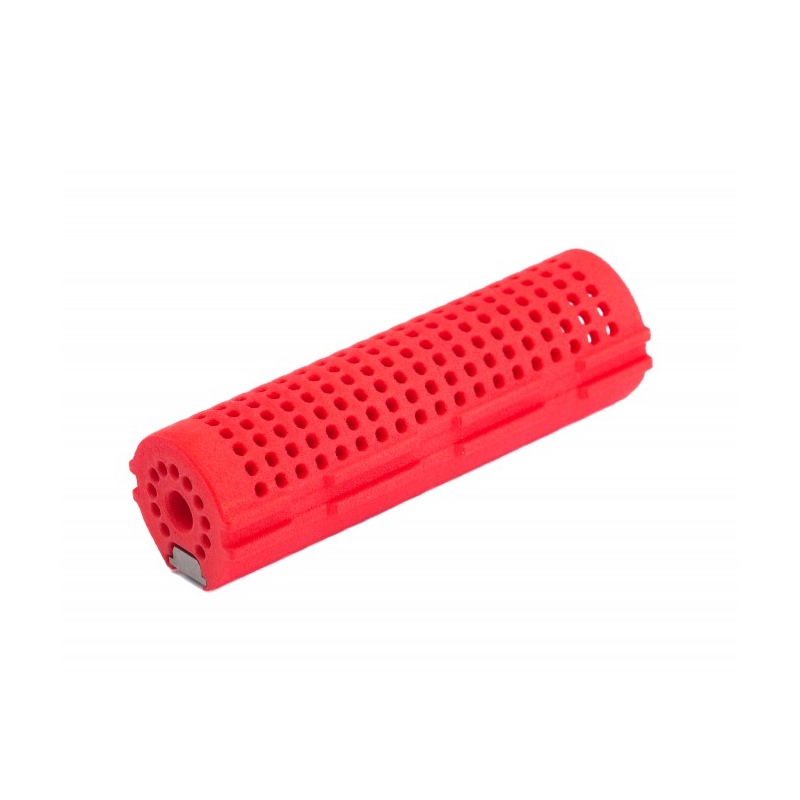

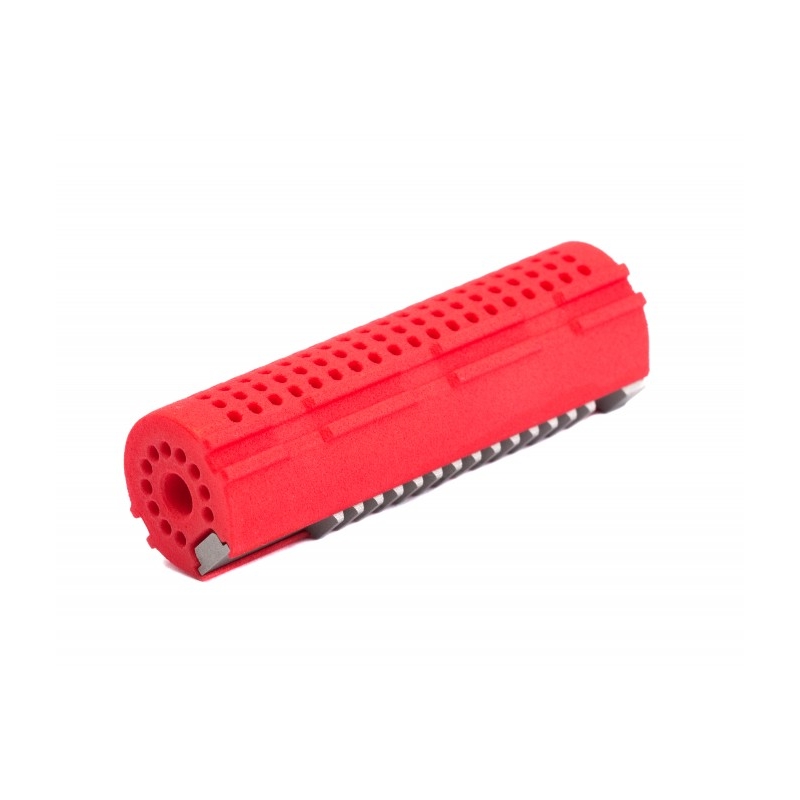

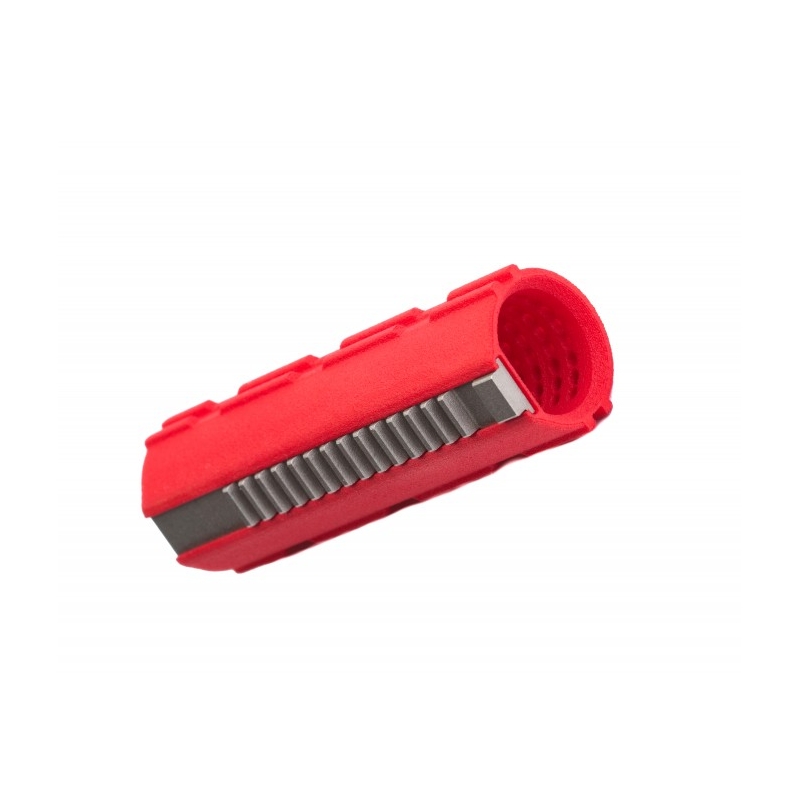

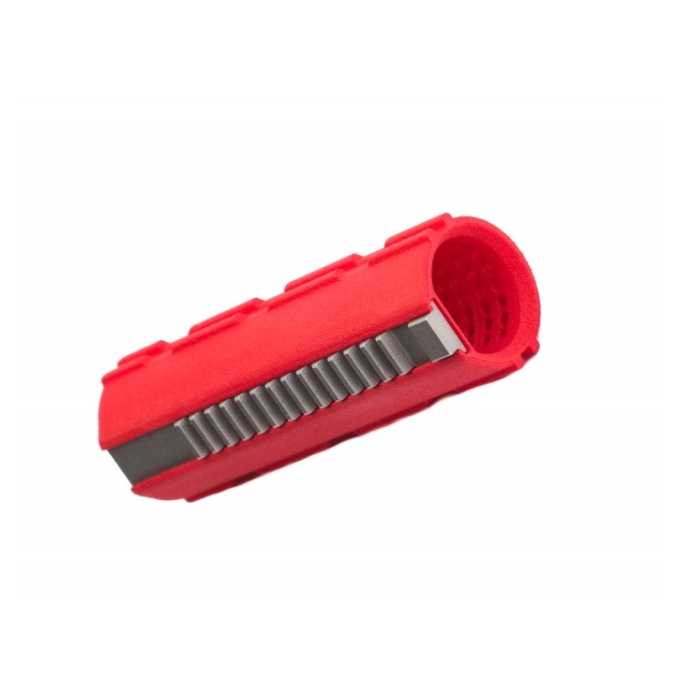

AirsoftParts High-Speed Piston with Full Metal Teeth
AirsoftParts high-speed piston with full metal teeth is a lightweight AEG piston designed for setups where low moving mass and a fast operating cycle are important. The lightened high-strength plastic body is combined with a metal rack with 14 teeth. Thanks to 264 lightening holes, it weighs only 13.9 g and is designed for springs up to M140.
Another product variants
BlackOut stock
GreyOut stock
25+ years of proven equipment and accessories.
Accessories
12,64 € In StockAirsoftParts ULTRA LIGHT Piston HeadASPARTS009
AirsoftParts ULTRA LIGHT piston head is an extremely lightweight CNC-machined piston head made from TECAFORM (POM), weighing just 5.4 g. Its lightweight design with 9 front holes promotes effective O-ring sealing while reducing the moving mass of the piston assembly. It is designed for V2, V3 and V7 gearboxes with springs up to M130.
12,64 €In Stock
12,64 € In StockAirsoftParts TECAFORM 2013 Piston HeadASPARTS012
AirsoftParts TECAFORM 2013 piston head is a lightweight CNC-machined piston head made from TECAFORM (POM), weighing 8.7 g and designed for V2, V3 and V7 gearboxes with springs up to M150. It features 9 holes for pressure-assisted sealing, a guide O-ring for centering inside the cylinder, an axial ball bearing and a through-locking nut for secure mounting.
12,64 €In Stock
16,87 € In StockAirsoftParts Silent Cylinder HeadASPARTS014
AirsoftParts silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. The integrated sealing collar with a large 80 ShA impact pad helps seal the air system while cushioning piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts AEG Ribbed Cylinder – Ported (200–400 mm)ASPARTS021
AirsoftParts ported cylinder is a stainless steel cylinder for AEGs with an inner barrel length of 200–400 mm, such as M4 or MP5. Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference.
16,87 €In Stock- SA PTFE Teflon Grease (50 g)
SPARMS440
Specna Arms PTFE grease in a practical 50 g package is a service lubricant for mechanically stressed parts of airsoft guns. It is particularly suitable for gearbox gears, piston racks and sliding surfaces. The PTFE additive reduces friction and wear while helping to ensure smooth operation of the mechanism.
6,77 €On the way
AirsoftParts High-Speed Piston With Full Metal Teeth
AirsoftParts PST-HS high-speed piston combines a significantly lightened high-strength plastic body with a full metal tooth rack with 14 teeth. The body features a total of 264 lightening holes, reducing the overall piston weight to just 13.9 g. The lower moving mass allows the piston to change direction more quickly and helps reduce dynamic stress on the gearbox, which is particularly beneficial in fast-cycling setups. The second engagement tooth has been removed, providing clearance for proper sector gear engagement and AOE adjustment. The piston can be used in setups with low, high and very high RoF, with a maximum recommended spring of M140. It is compatible with standard V2, V3, V6 and V7 gearboxes, but not with special designs such as PSG-1, SR25 or L85. For high-speed setups, we recommend always checking AOE, timing, tooth engagement and the overall operation of the gear train – a lightweight piston alone cannot replace a properly tuned setup.
Key Features
Weight of Just 13.9 g
The significantly lightened construction with 264 holes reduces the weight of the moving piston and is particularly suitable for fast-cycling AEG setups.
Full Metal Tooth Rack
The piston features a metal rack with 14 teeth, forming the stressed section that transfers force from the sector gear to the piston body.
Modified Second Tooth
The removed second engagement tooth provides the necessary clearance for proper sector gear engagement and suitable AOE adjustment.
For High-Speed Setups
The low piston weight helps reduce the inertia of moving components, which is beneficial for setups focused on a fast operating cycle and high RoF.
For Springs up to M140
The piston is designed for setups with a maximum recommended M140 spring and for standard V2, V3, V6 and V7 gearboxes.
Technical Specifications
- Model: PST-HS
- Type: high-speed AEG piston with full metal tooth rack
- Body material: high-strength plastic
- Teeth: full metal rack
- Number of teeth: 14
- Tooth modification: second engagement tooth removed
- Lightening: yes
- Number of lightening holes: 264
- Weight: 13.9 g
- Maximum recommended spring: M140
- Compatible gearboxes: V2, V3, V6, V7
- Incompatible designs: special PSG-1, SR25, L85 gearboxes and similar designs
- Country of manufacture: Czech Republic
Package Contents
- 1× AirsoftParts high-speed piston with full metal teeth
Frequently Asked Questions (FAQ)
Why Does the High-Speed Piston Have So Many Lightening Holes?
A total of 264 holes reduces the piston weight to 13.9 g. A lighter piston has lower inertia, which is particularly beneficial in fast-cycling AEG setups and also helps reduce dynamic stress on the gearbox.
Is This Piston Suitable Only for High RoF?
No. The design allows it to be used in setups with low, high and very high RoF. However, its low weight provides the greatest benefit where the goal is a fast and properly tuned operating cycle.
What Is the Maximum Spring That Can Be Used With the Piston?
The maximum recommended spring is M140. For high-speed setups, we also recommend paying attention to the gears, motor, AOE, timing and other gearbox components.
Which Gearboxes Is the Piston Compatible With?
The piston is designed for standard V2, V3, V6 and V7 gearboxes. It is not intended for special or extended designs such as PSG-1, SR25, L85 and similar configurations.
| Variants | High Speed |
| Color | Red |
| Body/receiver material | ABS / Plastic |
| Amount of piston teeth | 14 |
