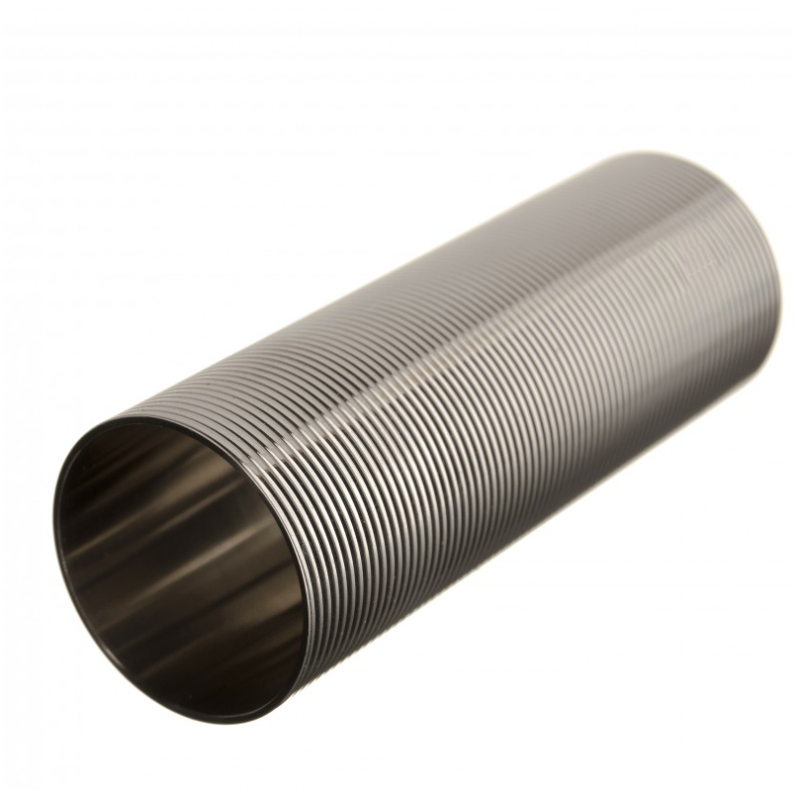

AirsoftParts AEG Ribbed Cylinder – Full (400+ mm)
AirsoftParts full ribbed cylinder is a precisely manufactured stainless steel air seal upgrade part for AEGs with an inner barrel over 400 mm. The new Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference for heat dissipation at high RoF.
Another product variants
SilverOn stock
SilverOn stock
25+ years of proven equipment and accessories.
Accessories
12,64 € In StockAirsoftParts DURAL 2013 Piston HeadASPARTS010
AirsoftParts DURAL 2013 piston head is a durable CNC-machined piston head made from EN AW 6012 T6 duralumin, designed for V2, V3 and V7 gearboxes with springs up to M170. It features pressure-assisted sealing through 9 front holes, a guide O-ring for centering inside the cylinder and an axial ball bearing that allows the spring to rotate more freely...
12,64 €In Stock
12,64 € In StockAirsoftParts TECAFORM 2013 Piston HeadASPARTS012
AirsoftParts TECAFORM 2013 piston head is a lightweight CNC-machined piston head made from TECAFORM (POM), weighing 8.7 g and designed for V2, V3 and V7 gearboxes with springs up to M150. It features 9 holes for pressure-assisted sealing, a guide O-ring for centering inside the cylinder, an axial ball bearing and a through-locking nut for secure mounting.
12,64 €In Stock
16,87 € In StockAirsoftParts Silent Cylinder HeadASPARTS014
AirsoftParts silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. The integrated sealing collar with a large 80 ShA impact pad helps seal the air system while cushioning piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts Cylinder Head CLASSICASPARTS017
AirsoftParts CLASSIC cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. Two O-rings provide reliable sealing inside the cylinder, while the shaped 70 ShA impact pad cushions piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction for smooth nozzle movement.
16,87 €In Stock
2,92 € 5,03 € In Stock-42%AirsoftParts Duralumin NozzleASPARTS039
AirsoftParts duralumin nozzle is a precision CNC-machined AEG air seal component made from durable EN AW 6012 T6 duralumin. An internal O-ring seals the connection between the nozzle and cylinder head, helping to reduce unwanted air leaks. The standard version is available in various lengths and weighs only 0.8–1.3 g depending on the variant.
2,92 € 5,03 €In StockReduced price!
23,22 € In StockAirsoftParts Silent Piston HeadASPARTS137
AirsoftParts silent piston head is a CNC-machined piston head made from EN AW 6012 T6 duralumin with a pneumatic brake that creates an air cushion before impact to reduce noise and dynamic shock. It features 9 holes for pressure-assisted sealing, an axial ball bearing and a polished surface. Designed for V2 and V3 gearboxes with springs up to M150.
23,22 €Out of stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock - SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts Stainless Steel Cylinder Gen 1.2
AirsoftParts full cylinder is an AEG air seal component designed primarily for builds with long inner barrels of 400 mm and more, typically M16, AK or AUG. The full non-ported design provides the maximum usable cylinder air volume, which is particularly important when correctly matching the cylinder volume to a longer inner barrel. The cylinder is made of stainless steel, has an inner diameter of 23.95 mm and a smooth inner surface for smooth movement and proper operation of the piston head sealing O-ring. Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface compared with the previous version. The manufacturer also specifies concentric machining, a ground surface finish and cooling grooves around the outer circumference for improved heat dissipation at high RoF. The cylinder weighs 32.6 g, is designed for V2 / V3 gearboxes and other compatible gearboxes. The maximum recommended spring is M170.
Key Features
Full Volume for Long Barrels
The non-ported design uses the full working volume of the cylinder, and the manufacturer recommends it primarily for AEGs with inner barrels 400 mm long or longer.
Smoother Gen 1.2 Inner Surface
The new Gen 1.2 features a smoother inner surface that supports smooth movement of the piston head sealing O-ring and proper operation of the air seal system.
Stainless Steel Construction
The cylinder is made of stainless steel and has a ground surface finish. The manufacturer also emphasizes concentric machining of the cylinder.
Revised Dimensions of the New Generation
The Gen 1.2 version uses revised dimensions for better compatibility with corresponding AEG air seal components.
Cooling Grooves Around the Outer Circumference
The outside of the cylinder features circumferential cooling grooves that are part of the design of this version.
Cylinder Type Table by Inner Barrel Length
| Type | For Inner Barrel Length |
|---|---|
| Ported | 200–400 mm |
| Full | 400–550 mm |
| SR-25 (extended V2.5 gearbox) | 400–600 mm |
Technical Specifications
- Type: full
- Generation: 1.2
- Size: standard
- Material: stainless steel
- Maximum recommended spring: M170
- Surface finish: grinding
- Inner diameter: 23.95 mm
- Cooling grooves around the outer circumference: yes
- Weight: 32.6 g
- Compatibility: V2 and V3 gearboxes and other TM-standard gearboxes
- Recommended inner barrel length: 400 mm and more
Frequently Asked Questions (FAQ)
What Inner Barrel Length Is the Full Cylinder Designed For?
When selecting the correct cylinder type, inner barrel length is therefore a key factor, but for the correct calculation of Volume Ratio (the ratio of cylinder air volume to barrel volume), it is also important to consider the weight of the BBs used or the piston weight with regard to a possible Joule Creep effect. For optimal performance, the manufacturer recommends combining it with AirsoftParts components. The manufacturer recommends this full cylinder for guns with inner barrels 400 mm long or longer, such as certain M16, DMR AR15, AUG or AK (AKM, AK-47, AK-74) configurations.
What Is the Difference Between a Full and Ported Cylinder?
A full cylinder has no port that shortens the working compression space, so it uses a larger air volume than a corresponding ported cylinder. This is why full cylinders are primarily used with longer inner barrels.
What Does the Gen 1.2 Design Offer?
According to the manufacturer, Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface along which the piston head sealing O-ring moves during the operating cycle.
Which Gearboxes Is the Cylinder Compatible With?
The manufacturer specifies compatibility with V2 and V3 gearboxes and other TM-standard gearboxes. In addition to gearbox type, barrel length and the correct ratio of cylinder volume to inner barrel volume must also be considered when selecting the cylinder.
